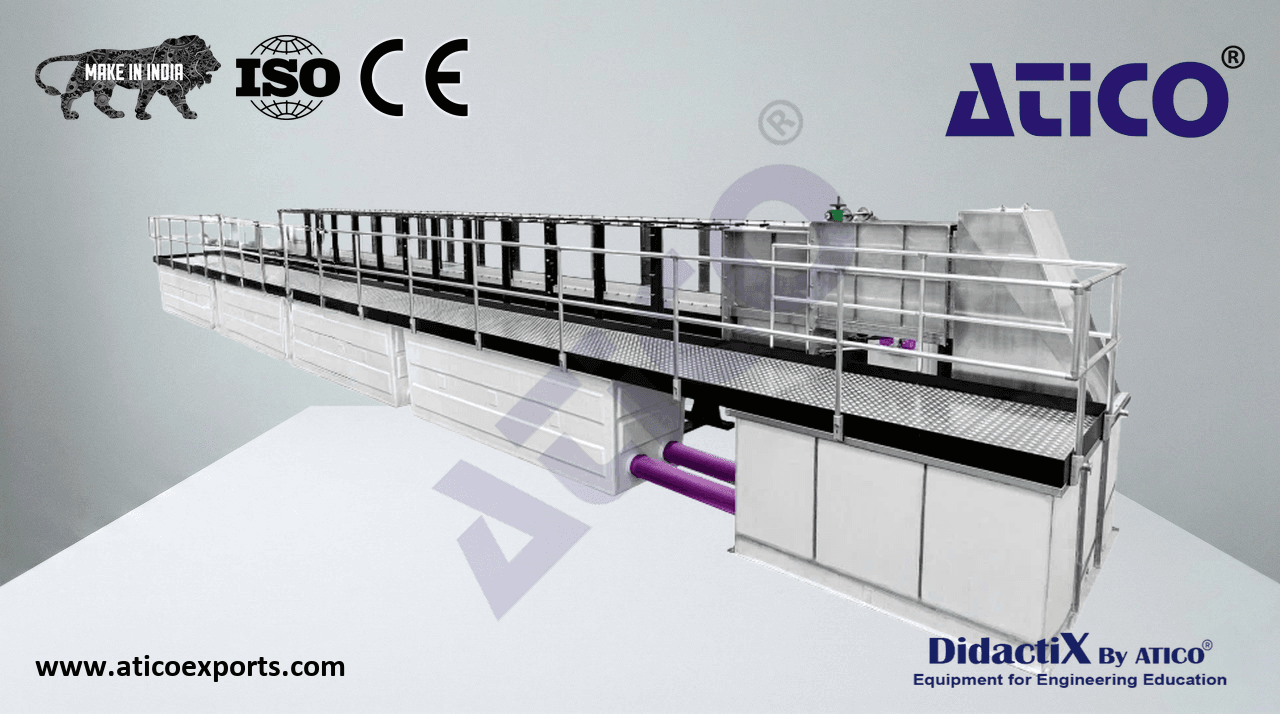

Experimental flume 600x800mm Deluxe

The experimental flume HM 161 is a high-capacity unit. The flow velocities that can be achieved and the long length of the experimental section are ideal for designing projects that closely approximate reality.

• basic principles of open-channel flow
• experimental flume with experimental section, inlet and outlet element and closed water circuit
• smoothly adjustable inclination of the exp. section
• experimental section with evenly spaced threaded holes on the bottom for installing models or for pressure measurement
• side walls of experimental section made of tempered glass for excellent observation of the experiments
• experimental section with guide rails for the optionally available instrument carrier
• all surfaces in contact with water are made of corrosion-resistant materials
• flow-optimised inlet element for low-turbulence entry into the experimental section
• closed water circuit with water tanks, pumps, electromagnetic flow sensor and flow control
• gallery that can be walked on
• models from all fields of hydraulic engineering available as accessories
• PLC with 2 freely positionable touch panels and a 32” monitor for control of the plant
• integrated router for operation and control via an end device and for screen mirroring
• data acquisition via PLC on internal memory, access to stored measured values via WLAN/LAN
• software for data acquisition via LAN under Windows 11
