EXPERIMENTAL REACTION TURBINE

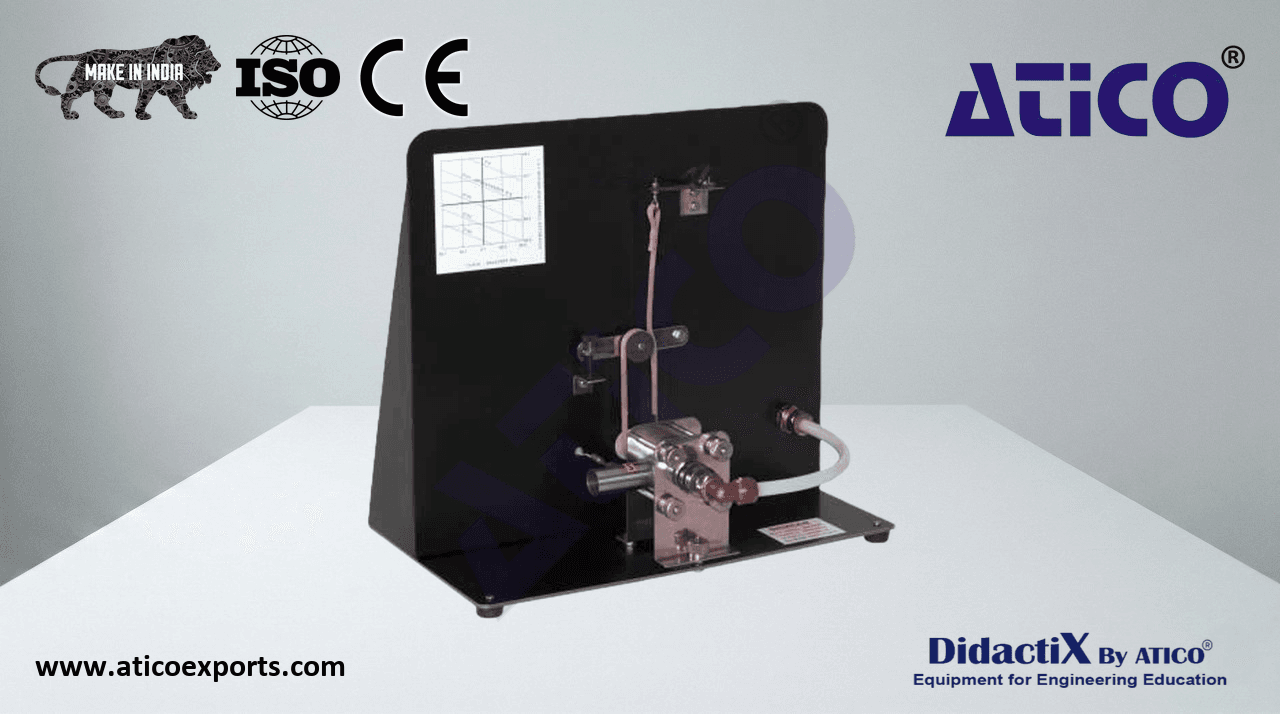

This reaction turbine is a single stage, radial flow, two jet reaction machine, operating on air, specially designed for experimental and teaching purposes. With a throttle valve and belt brake dynamometer, inlet and outlet air temperatures are recorded allowing the temperature drop due to work output to be measured. The turbine rotor is carried on a steel shaft running in oil lubricated ball bearings. Learn about EXPERIMENTAL REACTION TURBINE manufacturers for optimal educational outcomes.. Compressed air is delivered to the rotor through a central duct with a face seal, passes into the rotor and moves radially to convergent nozzles formed in the periphery. The resulting high velocity jet and momentum changes produce a reaction which drives the rotor and produces shaft power output. Learn about EXPERIMENTAL REACTION TURBINE specifications for optimal educational outcomes.. The turbine rotor is housed within a thick walled stainless steel exhaust casing. Inlet and outlet air pressures, temperatures and air flow rate, turbine torque and speed are recorded by a combination of instrumentation on the base unit and the optional module. Learn about EXPERIMENTAL REACTION TURBINE price for optimal educational outcomes..

• 2 x Thermocouples
• Load Cell Maximum Capacity: 10N
• Turbine Speed (continuous): 35,000 rpm
• Turbine Speed (short periods only): 40,000 rpm
• Pressure Relief Valve Setting: 100kN/m²
