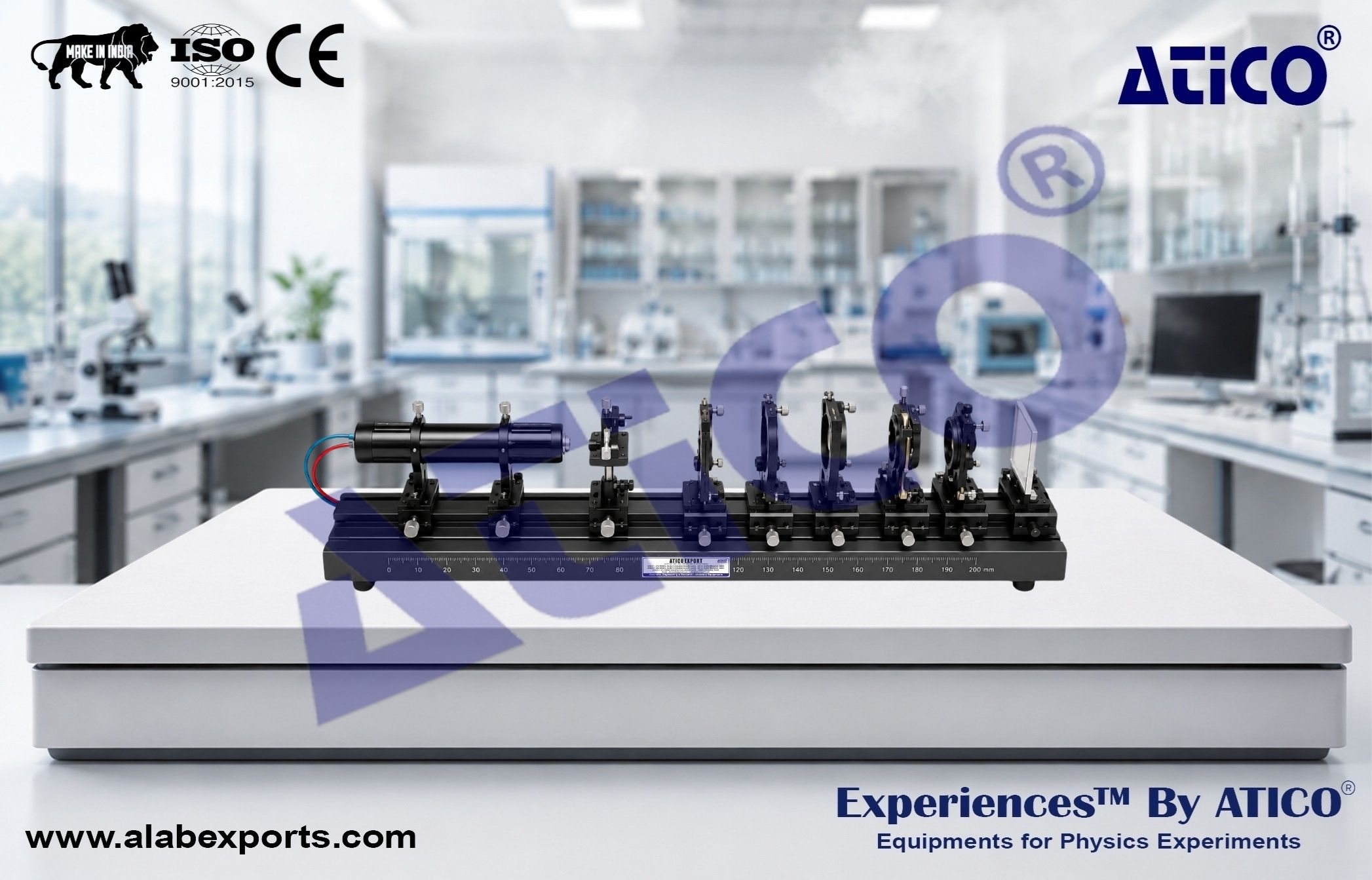

Experimental System for Electro-Optic Modulation

This electro-optic modulation experiment system is designed to study the interaction between electric fields and light using the electro-optic effect. It enables students to investigate electro-optic modulation, measure the half-wave voltage and electro-optic coefficient of an electro-optic crystal, and demonstrate optical communication principles. The system provides a comprehensive platform for experiments in laser technology, optical signal processing, and optical communication. Manufactured by Atico Export India.

Experiments :

• Display the Electro-Optic Modulation Waveform.
• Observe the Electro-Optic Modulation Phenomenon.
• Measure the Half-Wave Voltage of an Electro-Optic Crystal.
• Calculate the Electro-Optic Coefficient.
• Demonstrate Optical Communication Using Electro-Optic Modulation Technique.

Output Sine-Wave Modulation Amplitude :

• 0–300 V, Continuously Adjustable

DC Offset Voltage Output :

• 0–600 V, Continuously Adjustable

Output Frequency :

• 1 kHz

Dimensions :

• 5 × 2.5 × 60 mm

Electrodes :

• Silver-coated

Surface Flatness :

• < λ/8 @ 633 nm

Transparent Wavelength Range :

• 420–5200 nm

He-Ne Laser :

• 1.0–1.5 mW @ 632.8 nm

Rotary Polarizer :

• Minimum Reading Scale: 1°

Photoreceiver :

• PIN Photocell

Standard Accessories :

• Optical Rail – 1
• Electro-Optic Modulation Controller – 1
• Photoreceiver – 1
• He-Ne Laser – 1
• Laser Holder – 1
• LiNbO₃ Crystal – 1
• BNC Cable – 2
• Four-Axis Adjustable Holder – 2
• Rotary Holder – 3
• Polarizer – 1
• Glan Prism – 1
• Quarter-Wave Plate – 1
• Alignment Aperture – 1
• Speaker – 1
• Ground Glass Screen – 1
