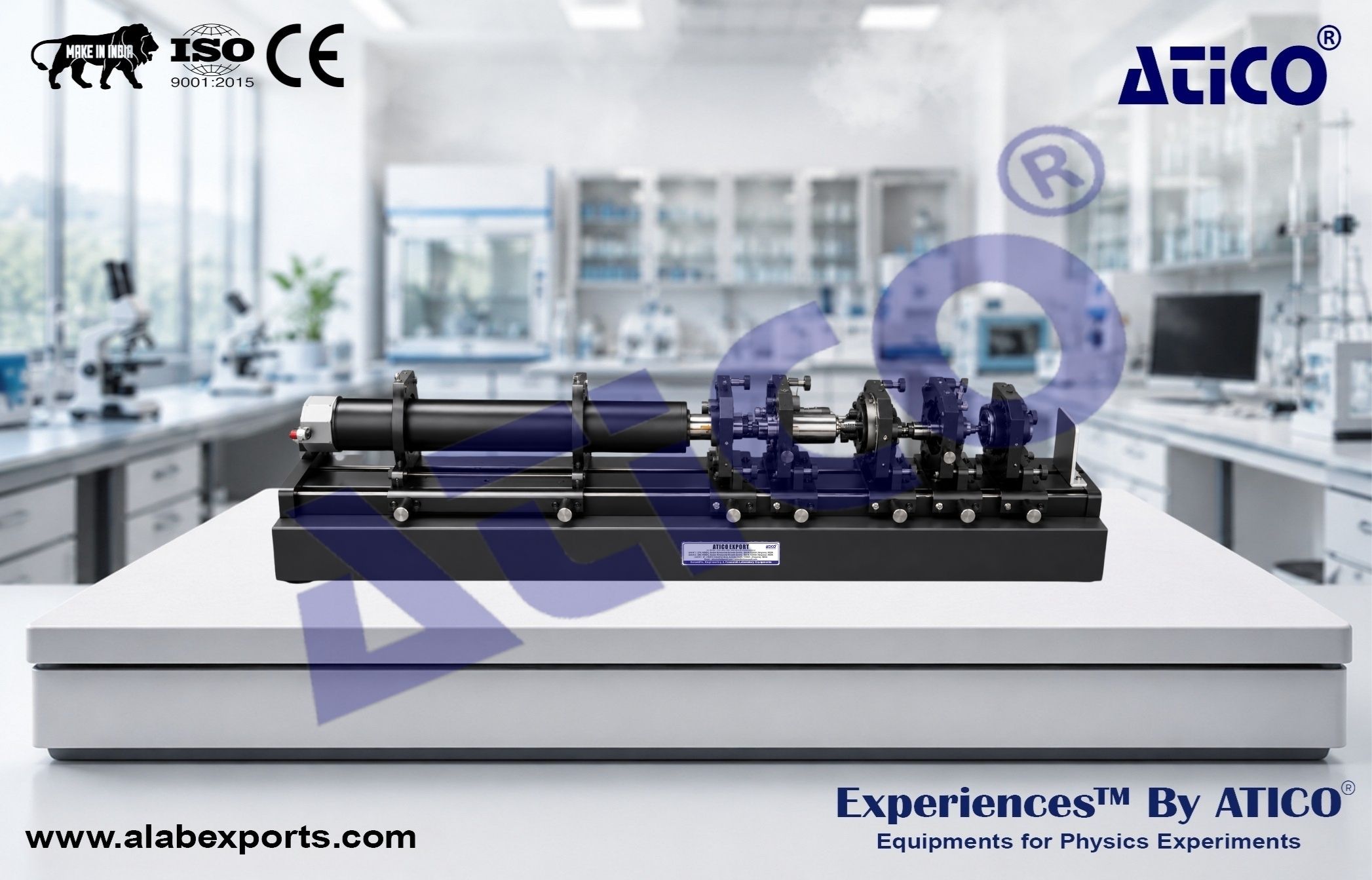

Experimental System for Electro-Optic Modulation for Lasers and Photonics Physics Lab

The Experimental System for Electro-Optic Modulation for Lasers and Photonics Physics Lab is designed to demonstrate the electro-optic effect in a crystal, where the refractive index changes under the influence of an applied electric field. The system utilizes a Lithium Niobate (LiNbO₃) crystal, a widely used electro-optic material known for its strong Pockels effect, enabling efficient modulation of light. The apparatus allows students to investigate the interaction between electric fields and polarized light, observe electro-optic modulation phenomena, and measure important electro-optic parameters. Through practical experiments, users can gain a deeper understanding of optical modulation techniques used in modern communication systems, laser technology, and photonic devices. The system serves as an excellent educational platform for studying electro-optic materials, modulation principles, and optical signal transmission technologies. Physics Lab Experiments from Atico Exports.

Experiments :

Electro-Optic Modulation Waveform Observation :

• Display and analyze modulation waveforms generated by the electro-optic crystal.

Electro-Optic Effect Demonstration :

• Observe changes in optical properties caused by the application of an electric field.

Half-Wave Voltage Measurement :

• Measure the voltage required to produce a phase shift corresponding to complete optical modulation.

Electro-Optic Coefficient Determination :

• Calculate the electro-optic coefficient of the crystal material.

Optical Communication Demonstration :

• Demonstrate the application of electro-optic modulation in optical communication systems.

• Electro-Optic Effect Studies
• Optical Modulation Techniques
• Photonics and Optical Communication
• Crystal Characterization
• Laser Technology Education
• Advanced Physics Laboratory Training

Electro-Optic Modulation Power Supply :

Sine-Wave Modulation Amplitude :

• 0–300 V, Continuously Adjustable

DC Offset Voltage Output :

• 0–600 V, Continuously Adjustable

Output Frequency :

• 1 kHz

Electro-Optic Crystal :

Material :

• Lithium Niobate (LiNbO₃)

Dimensions :

• 5 × 2.5 × 60 mm

Electrodes :

• Silver Coated

Surface Flatness :

• < λ/8 @ 633 nm

Transparent Wavelength Range :

• 420–5200 nm

Optical Components :

He-Ne Laser Output Power :

• 1.0–1.5 mW

Laser Wavelength :

• 632.8 nm

Rotary Polarizer Resolution :

• 1°

Photoreceiver Type :

• PIN Photocell

Optical Rail :

• Quantity: 1

Electro-Optic Modulation Controller :

• Quantity: 1

Photoreceiver :

• Quantity: 1

He-Ne Laser with Power Supply :

• Quantity: 1

Laser Holder :

• Quantity: 1

Lithium Niobate Crystal :

• Quantity: 1

BNC Cables :

• Quantity: 2

Four-Axis Adjustable Holders :

• Quantity: 2

Rotary Holders :

• Quantity: 3

Polarizer :

• Quantity: 1

Glan Prism :

• Quantity: 1

Quarter-Wave Plate :

• Quantity: 1

Alignment Aperture :

• Quantity: 1

Speaker :

• Quantity: 1

Ground Glass Screen :

• Quantity: 1

• Includes He-Ne Laser with Power Supply
• Precise Optical Alignment System
• Observation and Measurement of Electro-Optic Modulation Waveforms
• Electro-Optic Modulation Demonstration
• High-Precision Optical Measurements
• Detailed Instruction Manual
