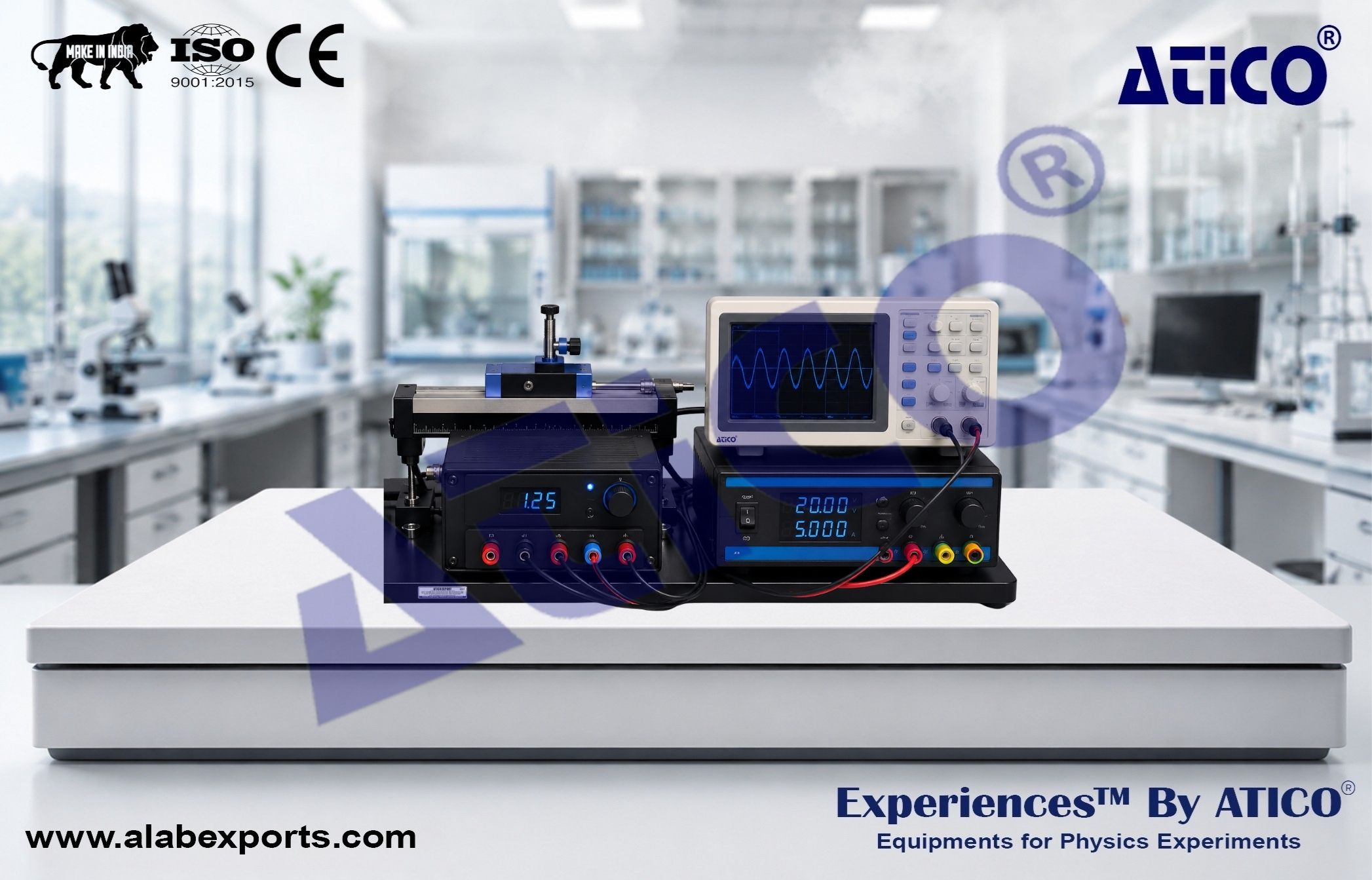

Experimental System of CW NMR Advanced Model for Advanced Physics Lab

The Experimental System of CW NMR Advanced Model for Advanced Physics Lab is designed for advanced studies of nuclear magnetic resonance phenomena and precision measurement of nuclear magnetic properties. The system combines a highly homogeneous electromagnet, precision oscillator, and advanced measurement instruments to provide reliable and repeatable experimental results. The apparatus enables students to investigate resonance behavior of hydrogen and fluorine nuclei, determine important nuclear parameters, and study the influence of magnetic field homogeneity on signal quality. The open magnet structure allows convenient specimen handling, while the high field uniformity ensures clear resonance signals and enhanced observation of coda wave phenomena. This system serves as an excellent educational and research platform for advanced physics laboratories, offering practical experience in magnetic resonance techniques, nuclear spectroscopy, and precision magnetic field measurements. Physics Lab Experiments from Atico Exports.

Experiments:

Observation of NMR Phenomena in Hydrogen and Fluorine Nuclei:

• Observe resonance signals from hydrogen nuclei
• Observe resonance signals from fluorine nuclei
• Study the interaction between nuclear spins and magnetic fields

Determination of Nuclear Parameters:

• Measure the gyromagnetic ratio
• Determine the nuclear g-factor
• Calculate the nuclear magnetic moment

Magnetic Field Homogeneity Investigation:

• Study the influence of magnetic field uniformity on NMR signal quality
• Observe coda wave variations using different specimens

Magnetic Field Measurement and Calibration:

• Measure magnetic field strength using NMR techniques
• Calibrate the teslameter using resonance-based methods

Comparative Specimen Analysis:

• Analyze resonance characteristics of different liquid and solid specimens
• Compare signal amplitudes and relaxation behavior

• Nuclear Magnetic Resonance Studies
• Magnetic Resonance Spectroscopy Training
• Nuclear Parameter Measurement
• Magnetic Field Calibration
• Advanced Physics Laboratory Education
• Materials Characterization Studies
• Research and Teaching Applications

Nuclei Studied:

• Hydrogen (H) and Fluorine (F)

Signal-to-Noise Ratio:

• Greater than 40 dB (Hydrogen)

Oscillator Frequency Range:

• 17 MHz – 23 MHz
• Continuously Adjustable

Magnet Pole Diameter:

• 100 mm

Pole Spacing:

• 20 mm

Sweep Field Power Supply:

• 0 – 5 V
• 50/60 Hz

NMR Signal Amplitude (Hydrogen):

• Greater than 4 V Peak-to-Peak

NMR Signal Amplitude (Fluorine):

• Greater than 100 mV Peak-to-Peak

Magnetic Field Homogeneity:

• Better than 8 ppm

Probe Travel Range:

• 5 – 15 cm

Phase Shifter:

• 50 Hz Sine Wave
• Greater than 90°

Number of Coda Waves:

• Greater than 10 (Hydrogen Nucleus)

Teslameter Range:

• 0 – 2000.0 mT

Teslameter Resolution:

• 0.1 mT

Components Included:

Main Electric Unit:

• Quantity: 1

Electromagnet with Rail and Oscillator Assembly:

• Quantity: 1

Teslameter Probe:

• Quantity: 1

Frequency Meter:

• Quantity: 1

Power Cord:

• Quantity: 1

BNC Cables:

• Quantity: 3

Connection Wires:

• Quantity: 2

Specimen Set in Micropipette Tubes:

• Quantity: 11

Instruction Manual:

• Quantity: 1

Specimen Set Included:

• Copper Sulfate Solution
• Copper Sulfate Solutions with Different Concentrations
• Ferric Chloride Solution
• Hydrogen-Fluorine Specimen
• Glycerol
• Pure Water
• Polytetrafluoroethylene (PTFE)

• High Magnetic Field Homogeneity
• Excellent Signal-to-Noise Ratio
• Open Magnet Design for Easy Access
• Ready-to-Use Specimen Collection
• Precise Magnetic Field Measurement Capability
• Suitable for Advanced Academic Laboratories
• 11 Ready-to-Use Specimens in Micropipette Tubes
• Highly Homogeneous Magnetic Field for Enhanced Signal Observation
• Open Magnet Structure for Convenient Specimen Access
• High Signal-to-Noise Ratio and Stable Frequency Performance
• Combined H and F Nuclei Specimen for g-Factor Determination
• High-Accuracy Teslameter and Frequency Meter Included
• Detailed Instruction Manual
