Experimental System of CW NMR Advanced Physics Experiment

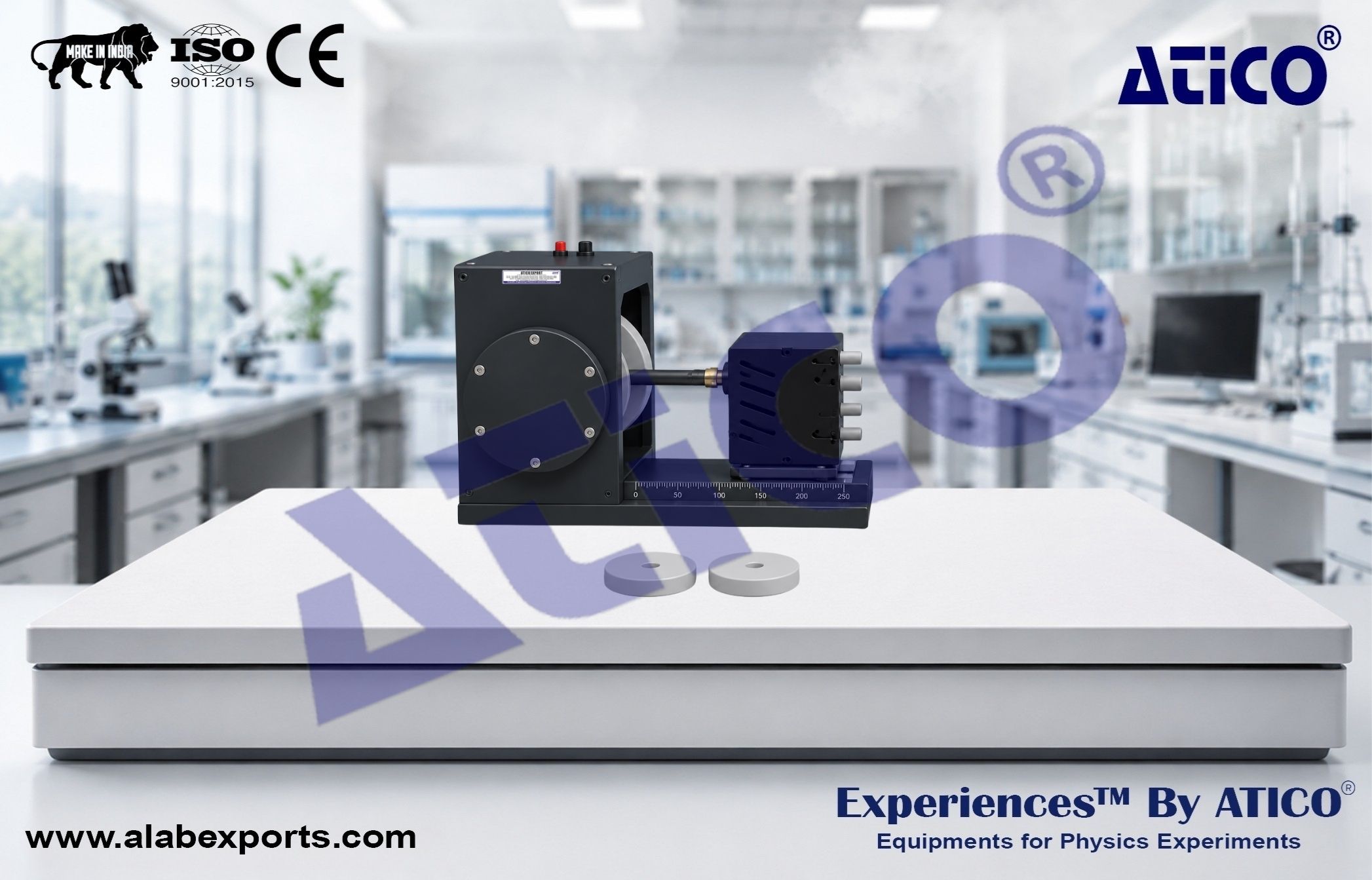

This Continuous-Wave Nuclear Magnetic Resonance (CW-NMR) experiment system is designed to study the fundamental principles of nuclear magnetic resonance using a high-homogeneity permanent magnet and precision electromagnetic field control. The system enables students to observe the NMR phenomenon of hydrogen and fluorine nuclei, investigate the effects of paramagnetic ions, and measure important nuclear parameters such as the spin magnetic ratio and Landé g-factor. The low-power electromagnetic field design minimizes heating, allowing continuous operation for extended laboratory sessions. Optional Accessory: Frequency Meter. External Equipment Required: Oscilloscope (not included). Physics Lab Experiments from Atico Exports.

Optional Accessory :

• Frequency Meter

External Equipment Required :

• Oscilloscope (not included)

Experiments :

• Observe the Nuclear Magnetic Resonance (NMR) Phenomenon of Hydrogen Nuclei in Water and Study the Influence of Paramagnetic Ions.
• Measure the Spin Magnetic Ratio, Landé g-Factor, and Other Parameters of Hydrogen and Fluorine Nuclei.

Measured Nuclei :

• Hydrogen (H)
• Fluorine (F)

Signal-to-Noise Ratio (SNR) :

• 46 dB (Hydrogen Nuclei)

Oscillator Frequency :

• 17–23 MHz
• Continuously adjustable

Magnet Pole Area :

• Diameter: 100 mm
• Pole spacing: 20 mm

NMR Signal Amplitude (Peak-to-Peak) :

• 2 V (Hydrogen Nuclei)

• 200 mV (Fluorine Nuclei)

Magnetic Field Homogeneity :

• Better than 8 ppm

Electromagnetic Field Adjustment Range :

• 60 Gauss

Number of Coda Waves :

• 15
