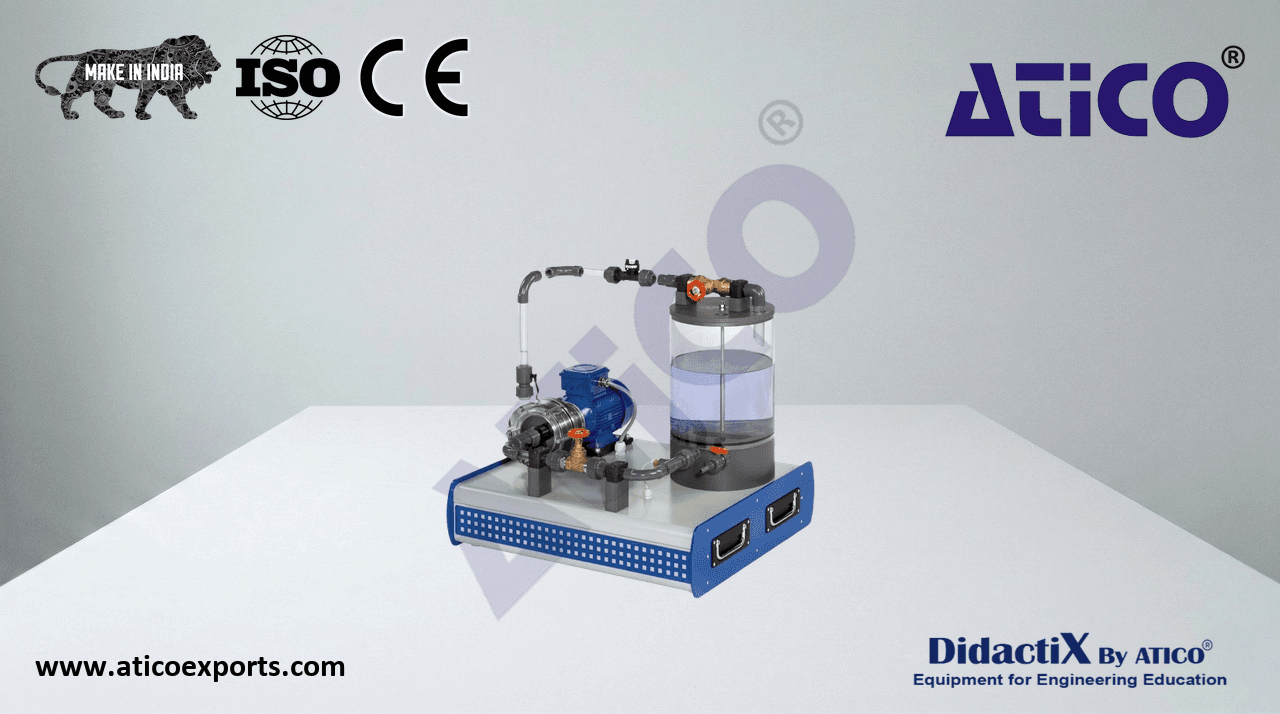

Experiments with a centrifugal pump Deluxe

Centrifugal pumps are turbomachines which are used to transport fluids. The rotation of the pump impeller generates centrifugal forces. These forces are used to deliver the water. Learn about Experiments with a centrifugal pump exporters for optimal educational outcomes..

• functioning and operating behaviour of a centrifugal pump
• closed water circuit contains centrifugal pump with drive motor and a transparent water tank
• transparent housing for observing the pump impeller
• variable speed via frequency converter
• adjustment of pressure conditions at inlet and outlet side of the pump by valves
• sensors for pressure at inlet and outlet side of the pump, temperature and flow rate
• due to integrated microprocessor-based instrumentation no additional devices with error-prone wiring are required
• display and evaluation of the measured values as well as operation of the unit via software
• software: option to connect any number of external workstations on the local network to follow and analyse the experiment
• software with control functions and data acquisition via USB under Windows 11
