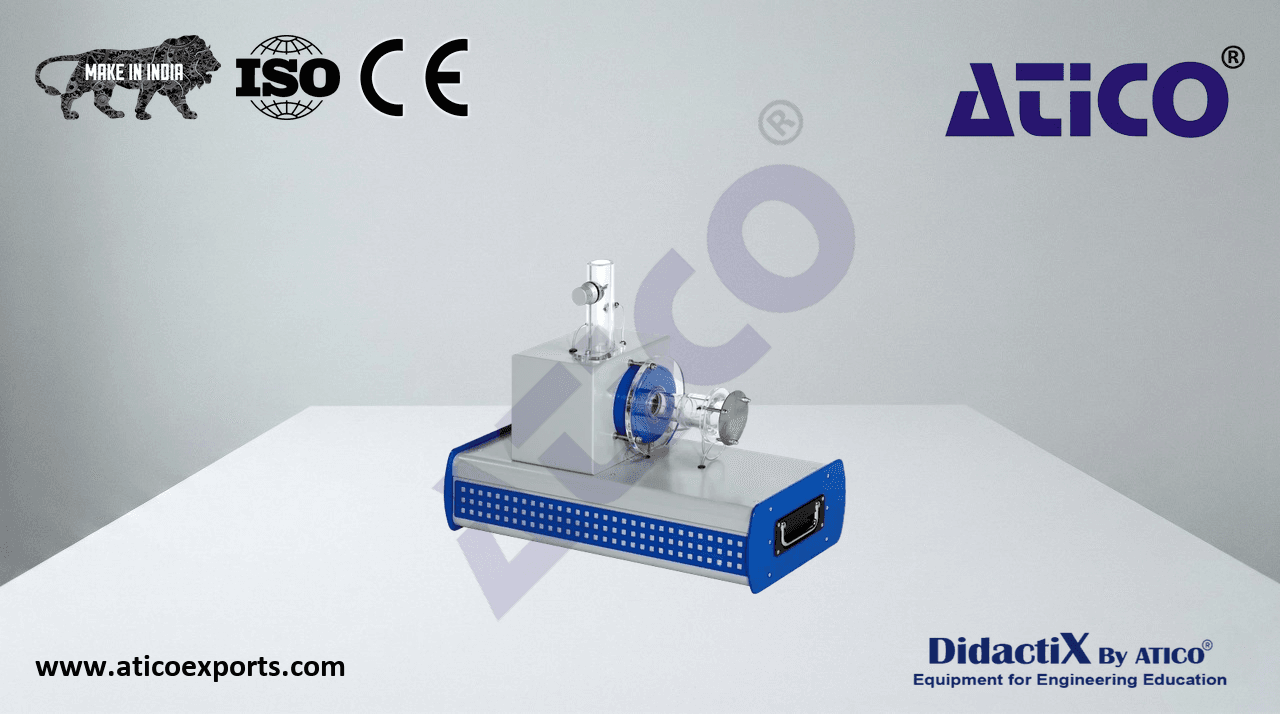

Experiments with a radial compressor

Radial compressors are used to compress gases. The medium is drawn in axially to the drive shaft by the rotation of the rotor and flows through the rotor rotating at high speed. By means of centrifugal force, the medium is accelerated towards the outer edge and is compressed in this manner. Learn about Experiments with a radial compressor price for optimal educational outcomes..

• functioning and operating behaviour of a radial compressor
• two-stage radial compressor with drive motor
• variable speed via frequency converter
• transparent intake and delivery pipes
• throttle valve for adjusting the air flow in the delivery pipe
• protecting plate at air inlet for undisturbed air flow
• determination of flow rate via intake nozzle
• display of differential pressures, flow rate, speed, electrical power consumption and hydraulical power output, temperatures and efficiency
• software: option to connect any number of external workstations on the local network to follow and analyse the experiment
• software with control functions and data acquisition via USB under Windows 11
