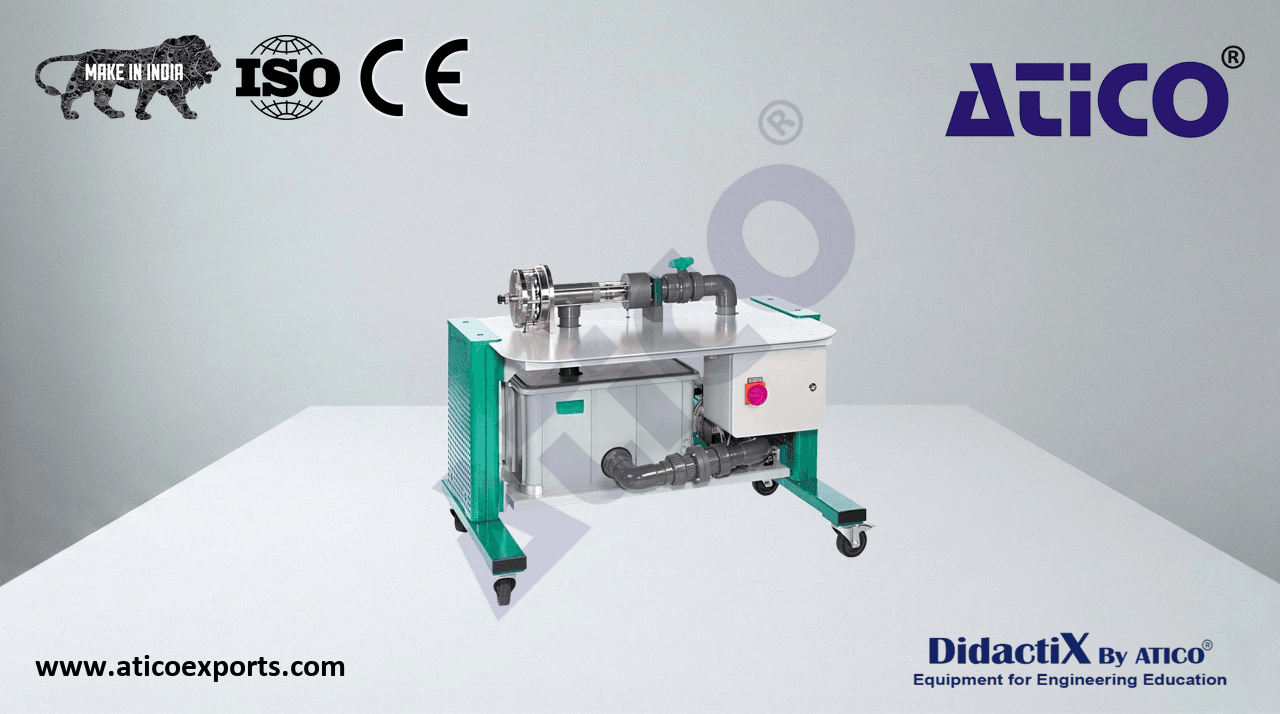

Experiments with an axial turbine

The axial turbine operates as a reaction turbine as used in gas tubines and steam turbines. The water flows through a stator where it is deflected and accelerated. Then, the water hits then the blades where it delivers kinetic energy and pressure energy and puts the rotor in motion. Learn about Experiments with an axial turbine Fluid_Machinery1 India for optimal educational outcomes.. The water pressure steadily decreases from the inlet to the outlet.

• functioning and operating behaviour of an axial turbine
• closed water circuit contains axial turbine, pump and water tank
• transparent housing for observing the stator and the rotor
• turbine load using the wear-free and adjustable eddy current brake
• valve for adjusting the volumetric flow rate
• force sensor to determine the torque on turbine shaft
• measurement of turbine speed with optical speed sensor
• pressure measurement on inlet side
• determin. of volumetric flow rate using differential pressure measurement across a measuring orifice
• due to integrated microprocessor-based instrumentation no additional devices with error-prone wiring are required
• display and evaluation of the measured values as well as operation of the unit via software
• software: option to connect any number of external workstations on the local network to follow and analyse the experiment
• software with control functions and data acquisition via USB under Windows 11
