EXTENDED CONCENTRIC TUBE HEAT EXCHANGER

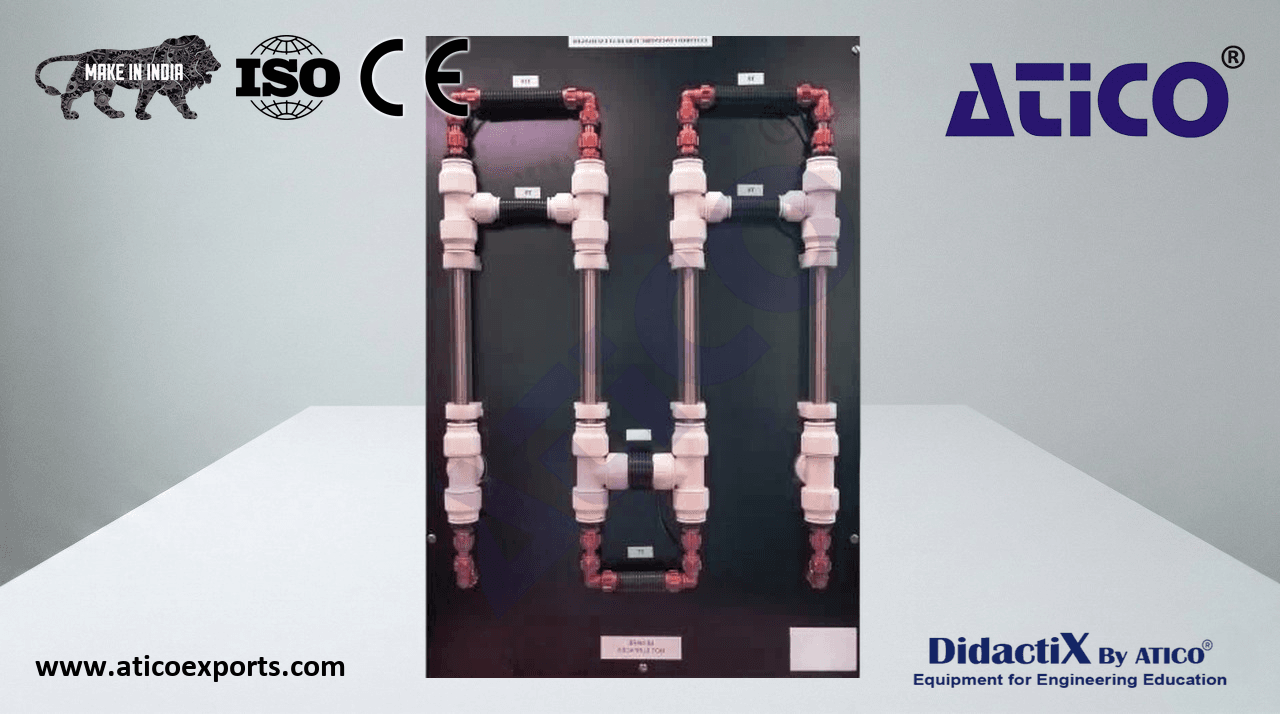

This concentric tube heat exchanger demonstrates the basic principles of heat transfer and is designed for use with the Heat Exchanger Service Unit. Two pairs of concentric tubes are arranged in series in a double U format to reduce the overall length and to provide three mid-position measuring points. The heat exchanger is mounted on its own frame. Learn about EXTENDED CONCENTRIC TUBE HEAT EXCHANGER price for optimal educational outcomes.. In normal operation, hot water passes through the braided hose and self-sealing coupling into the inner stainless tube, flows through the heat exchanger and leaves. Cold water flows through the annulus between the clear plastic tube and the inner stainless tube. Learn about EXTENDED CONCENTRIC TUBE HEAT EXCHANGER manufacturers for optimal educational outcomes.. With the hot water in the inner tube, losses from the system to the outside are minimised while still allowing students to see the construction of the unit. The midway points of both hot and cold streams are fitted with thermocouples to measure the stream temperatures. Learn about EXTENDED CONCENTRIC TUBE HEAT EXCHANGER specifications for optimal educational outcomes..

• Inner Tube Material: Stainless steel
• Inner Tube Outside Diameter: Ø12mm
• Inner Tube Wall Thickness: 1mm
• Outer Tube Material: Clear Acrylic
• Outer Tube Inside Diameter: Ø22mm
• Outer Tube Wall Thickness: 3mm
