EXTENDED SURFACE HEAT TRANSFER MODULE

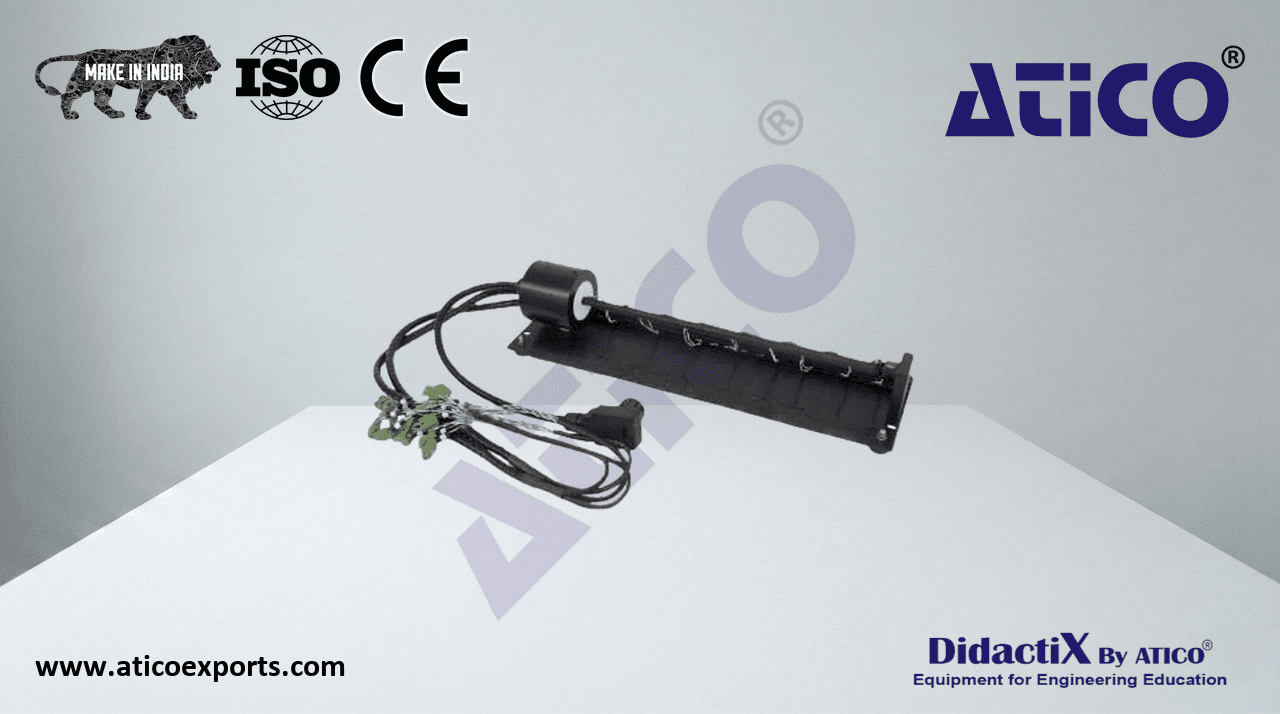

A small scale bench top accessory designed to measure the temperature profile and heat transfer along a horizontal extended surface (cylindrical pin). A small diameter uniform rod is heated at one end and heat flowing along the rod by conduction is lost to the surroundings by a combination of natural convection and radiation. The resulting heat transfer gives a temperature profile that may be investigated and predicted by conventional analysis. Learn about EXTENDED SURFACE HEAT TRANSFER MODULE suppliers for optimal educational outcomes.. The apparatus consists of a solid cylindrical matt black brass bar supported in a frame and heated at one end. At intervals from the heated end are eight thermocouples recording the surface temperature so that a temperature profile along the bar may be developed. Learn about EXTENDED SURFACE HEAT TRANSFER MODULE for educational labs for optimal educational outcomes.. An additional thermocouple records the ambient temperature. The heater is located inside an insulated cylinder at one end of the apparatus and is designed to operate at up to 20 Watts. Learn about EXTENDED SURFACE HEAT TRANSFER MODULE manufacturers for optimal educational outcomes.. All instrumentation and power supplies plug directly into the Heat Transfer Service Unit and readings are displayed on digital panel meters.

• Cylindrical Bar: Brass, Ø10mm x 350mm (L)
• 8 x Thermocouples at 50mm intervals
