EXTENSION AND COMPRESSION OF SPRINGS

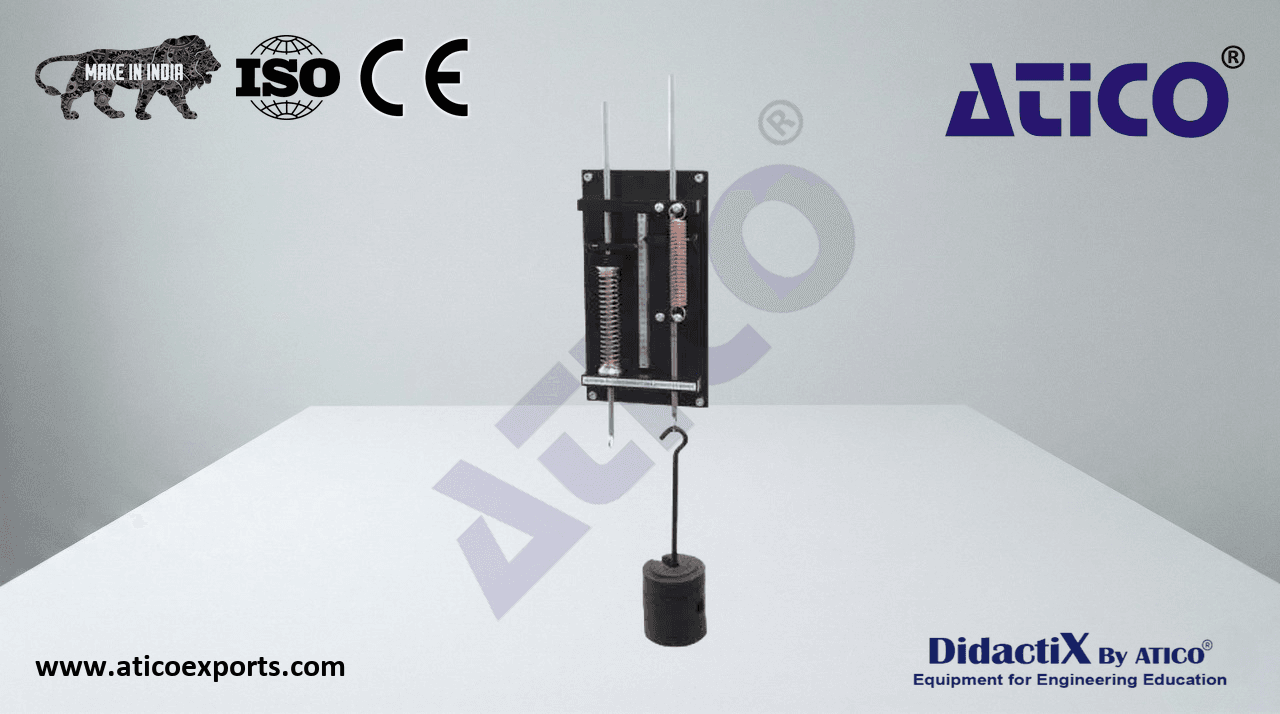

A wall-mounted vertical bracket houses two independent mechanisms side by side for testing tension and compression springs. The left-hand side tests tension springs whilst the right-hand side tests compression springs. A set of springs is supplied allowing students to investigate the relationship between applied load and extension/compression. Learn about EXTENSION AND COMPRESSION OF SPRINGS specifications for optimal educational outcomes.. Springs are easily installed and changed, and an integral deflection scale ensures accurate monitoring of deflection during loading. A set of calibrated weights and load hangers is supplied. Learn about EXTENSION AND COMPRESSION OF SPRINGS for educational labs for optimal educational outcomes..

• Integral deflection scale: 0–80mm; 1mm resolution

Tension springs × 4 (spring rates):

• 0.58 N/mm
• 1.04 N/mm
• 0.31 N/mm
• 0.79 N/mm

Compression springs × 3 (spring rates):

• 2.71 N/mm
• 3.29 N/mm
• 3.06 N/mm
