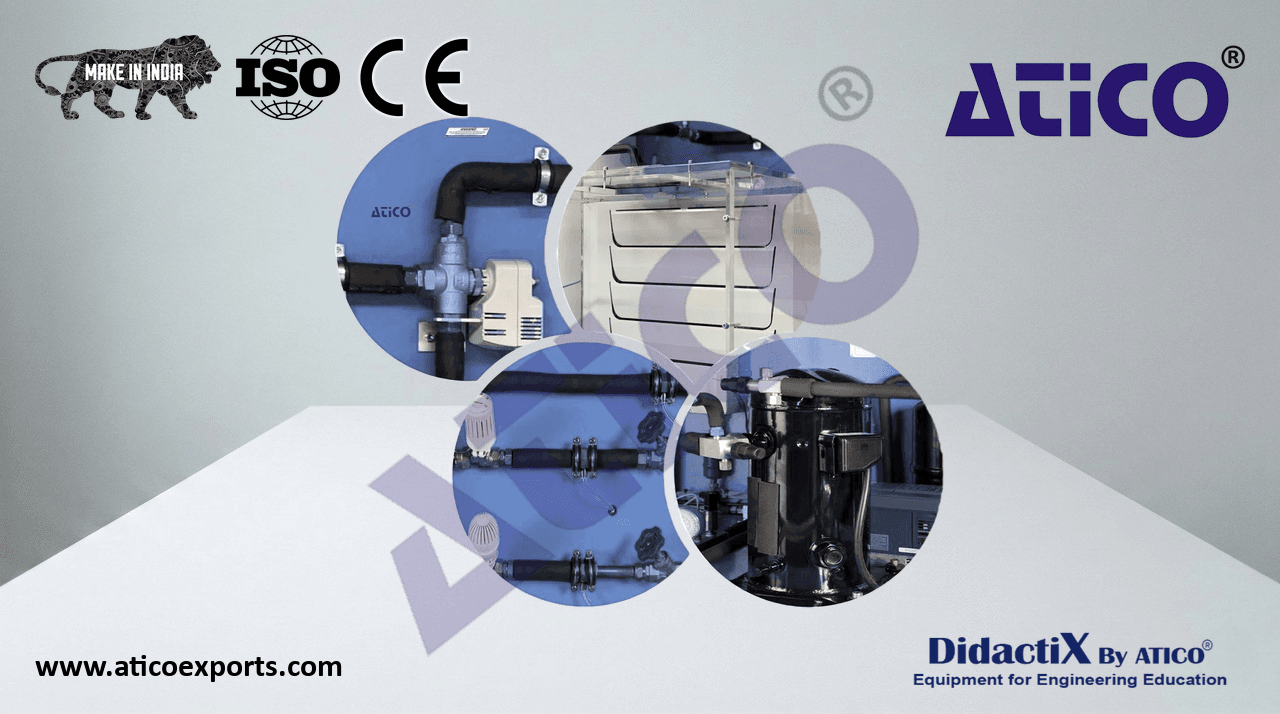

Fan Heater and/or Air Heat Exchanger

The unit Fan Heater and/or Air Heat Exchanger, allows the visualization of a fan heater and its functions as a heat sink. It can also be used as a heat source working in conjunction with a heat pump.

ATENG 12746 — Fan Heater and/or Air Heat Exchanger

Anodized aluminum frame and panels made of painted steel.

The unit includes wheels to facilitate its mobility.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

• Fan:
• Speed: 900/1400 min-1.
• Flow rate: 683/1155 m³/h.
• Heat exchanger:
• Nominal cooling capacity: 2 kW.
• Max. operating pressure: 10 bar.
• Measuring ranges:
• Temperature: three units; range: -50 °C to 180 °C.
• Flow rate: one unit; range: 20 to 2500 l/h.
• 230 V, 50 Hz, single-phase.
  Cables and accessories, for normal operation.
