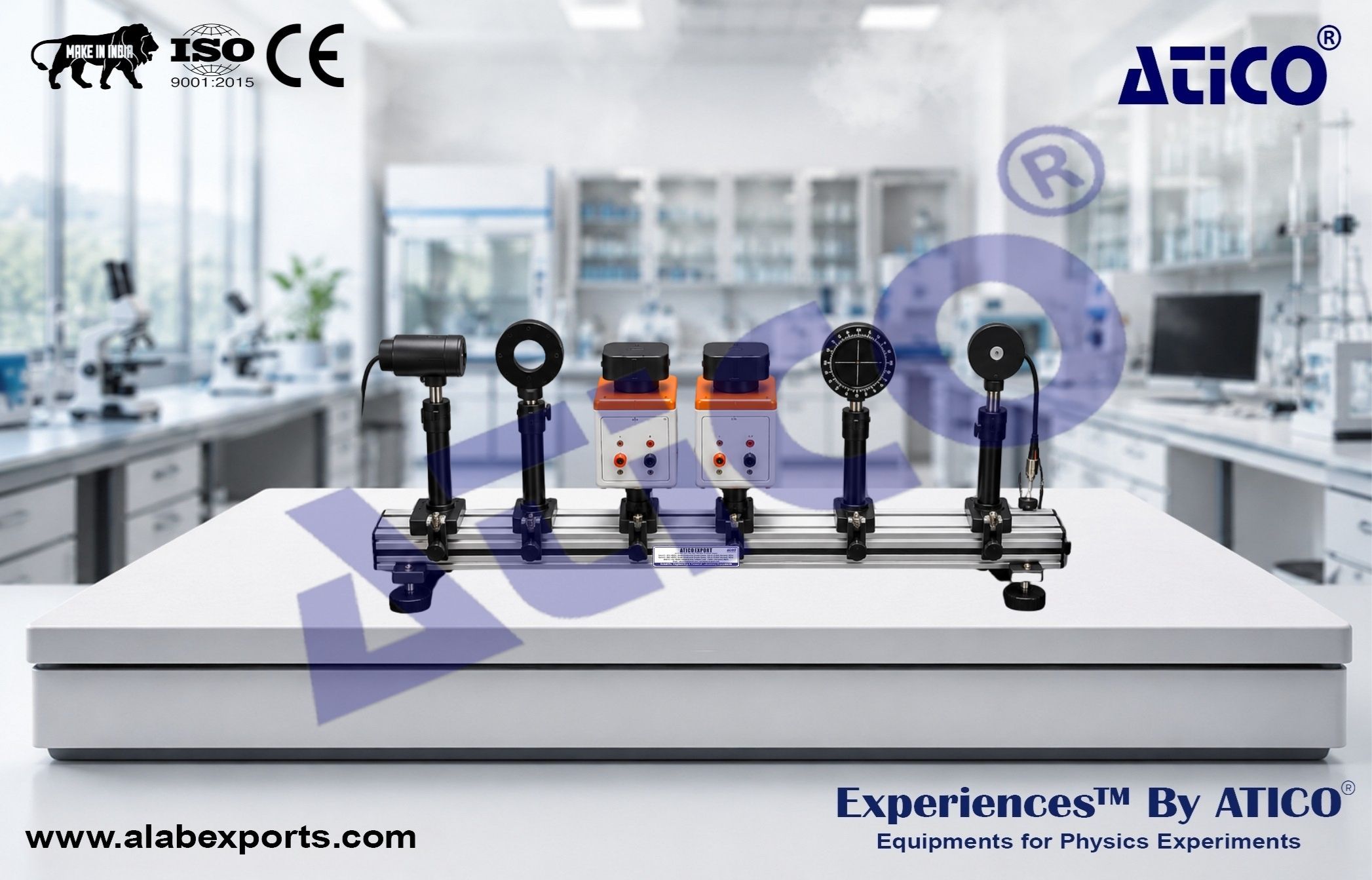

Faraday Effect Experiment Set Up

The Faraday Effect Experiment is designed to study the rotation of the plane of polarization of light when it passes through an optical medium placed in a magnetic field. The experiment demonstrates the Faraday Effect and enables the measurement of the Verdet constant of a dispersive material. It also helps students understand the relationship between light, magnetism, and the optical properties of materials. Manufactured by Atico Export India.

Principle

When linearly polarized light passes through an optical medium placed in a strong magnetic field, the plane of polarization rotates by an angle proportional to the magnetic field strength and the length of the optical path. This phenomenon is known as the Faraday Effect or Faraday Rotation. The proportionality constant is called the Verdet Constant, which depends on the optical medium and the wavelength of light. The experiment uses an SF6 glass block as the optical medium to study this effect and determine the Verdet constant.

Objectives

• Observe the effect of a magnetic field on the plane of polarization of polarized light.
• Measure the Verdet constant of a given dispersive material.
• Study the relationship between light polarization and magnetic fields.
• Verify the Faraday Effect experimentally.

System Components

Optical Bench Set :

• 0.8 m
• Quantity: 1

Light Source Holder :

• Quantity: 1

Polarizer Holder :

• Quantity: 1

Analyzer Holder :

• Quantity: 1

Electromagnet Assembly :

• Quantity: 1

SF6 Glass Block :

• Quantity: 1

Light Sensor Holder :

• Quantity: 1

Digital Teslameter :

• Quantity: 1

Power Supply for Electromagnet :

• Quantity: 1

Power Supply for Light Source :

• Quantity: 1

Data Processor :

• Quantity: 1

Modular U-Core Design :

• Poka-Yoke based U-core and pole piece design maintains precise optical alignment.
• Pole pieces can be adjusted to accommodate samples of different dimensions without disturbing alignment.

Precise Optical Alignment :

• Optical bench ensures accurate positioning of all optical components.
• Simplifies setup and improves measurement accuracy.

Light Sensor :

• Measures light intensity for determining the angle of polarization rotation.
• Reading resolution of 1 lux.
• Sensor-based measurement minimizes human observation errors.
• Allows measurements at different polarizer and analyzer orientations.

Complete Experimental Setup :

• Designed for accurate study of Faraday rotation and Verdet constant measurement.
