Faraday Rotation advanced level Physics Experiments

This Faraday Rotation experiment system is designed to investigate the magneto-optic Faraday effect and the interaction between polarized light and magnetic fields. It enables students to measure the Verdet constant of transparent materials, study the rotation of the plane of polarization, investigate the dependence of Faraday rotation on magnetic field strength and sample length, and explore the operating principle of optical isolators used in modern optical communication systems. The system also supports highly sensitive measurements using a lock-in amplifier for advanced laboratory investigations. Physics Lab Experiments from Atico Exports.

Experiments :

• Observe the Faraday Rotation of Plane-Polarized Light in a Magnetic Field.
• Measure the Verdet Constant of Transparent Materials.
• Study the Relationship Between Faraday Rotation and Magnetic Field Strength.
• Investigate the Effect of Sample Length on the Angle of Polarization Rotation.
• Compare Faraday Rotation at Different Light Wavelengths Using Alternative Light Sources.
• Study Optical Extinction Using Crossed Polarizers.
• Determine the Optimum Polarizer Angle for Maximum Measurement Sensitivity.
• Perform High-Sensitivity Faraday Rotation Measurements Using AC Magnetic Field Modulation and a Lock-In Amplifier.
• Investigate the Operating Principle of an Optical Isolator.

• Magneto-Optic Studies
• Verdet Constant Measurement
• Polarization Analysis
• Optical Isolator Demonstration
• Fiber Optic Communication Education
• Advanced Optics and Modern Physics Laboratories

Standard Accessories :

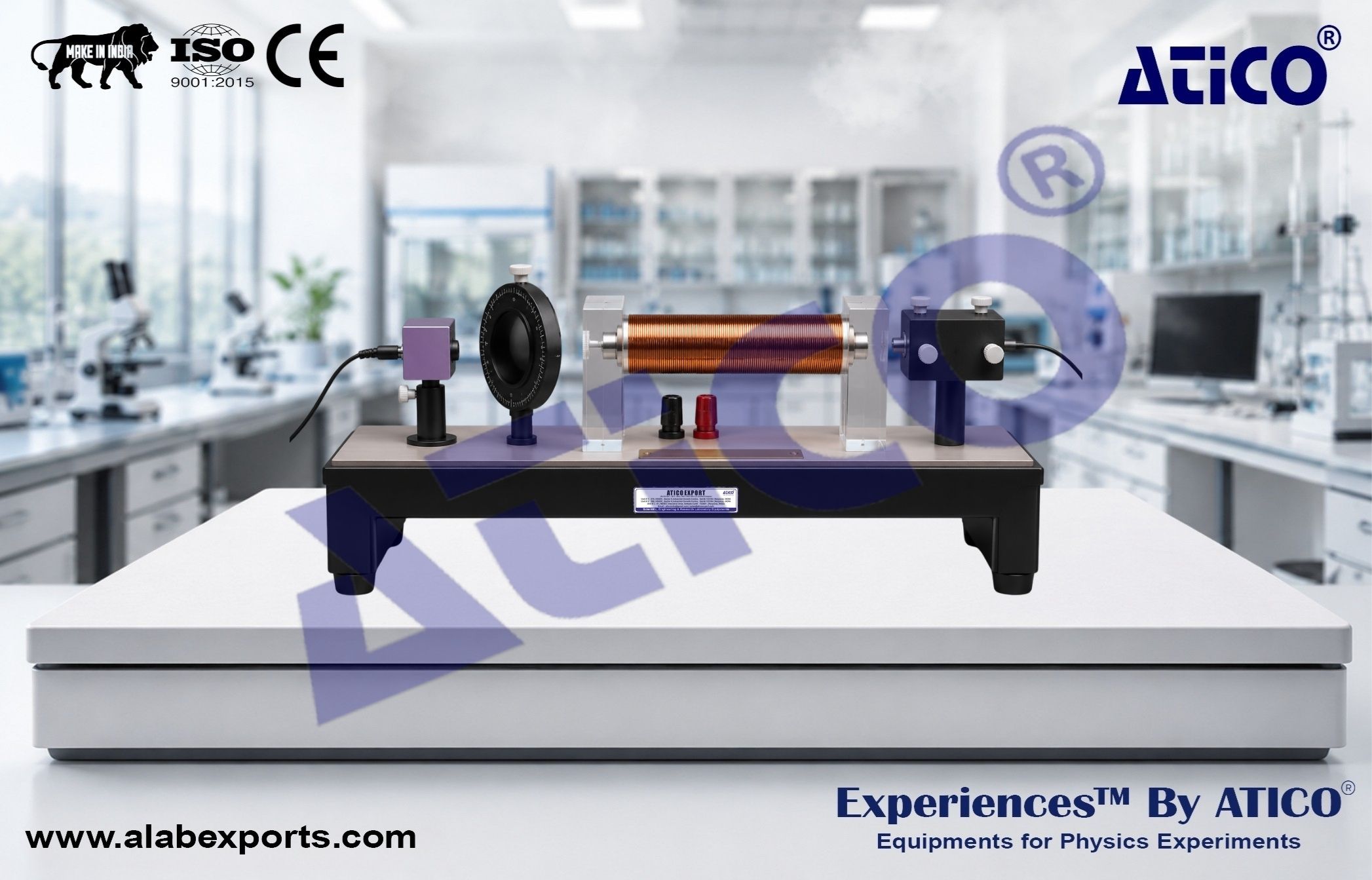

• Light Source – Red diode laser, Approx. 650 nm, Output power: Approx. 3 mW
• Polarizer – High-polarization linear polarizer (Approx. 95% polarization)
• Solenoid – Length: 15 cm; DC resistance: 2.6 Ω; Magnetic field constant: Approx. 11.1 mT/A
• Maximum Continuous Current – 3 A (Up to 10 A for short-duration operation)
• Analyzer – Rotatable polarizer with calibrated scale (5° divisions)
• Optical Detector – Linear photodiode detector with selectable load resistors (10 kΩ, 3 kΩ, 1 kΩ)
• Sample – SF-57 glass rod, Length: 10 cm, Diameter: 5 mm
• Optical Mounts – Precision adjustable mounts for optical alignment

• Demonstrates the Faraday magneto-optic effect using polarized laser light.
• Measures the Verdet constant of transparent materials.
• Suitable for solid and liquid sample investigations.
• Modular optical arrangement with removable light source for wavelength-dependent studies.
• Supports high-sensitivity measurements using a lock-in amplifier.
• Demonstrates the operating principle of optical isolators used in fiber-optic communication.
• Ideal for undergraduate, postgraduate, and advanced physics laboratories.
