ATENG 12232 — Fatigue Testing Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- The “ATENG 12232” unit mainly consists of:
- Electric motor of 0.37 kW, maximum speed: 3000 rpm.
Motor speed control by a frequency regulator.
- Loading device with spring balance (0 – 30 kg) and adjustment using threaded spindle with hand
wheel between 0 and 300 N at the cantilever end of the test pieces.
- Test pieces with a diameter of 8 mm and a length of 380 mm:
Two AISI 304L Stainless steel cylindrical test pieces.
Six AISI 304L Stainless steel cylindrical test pieces, with different notches.
Two F-1 Carbon steel cylindrical test pieces.
Six F-1 Carbon steel cylindrical test pieces, with different notches.
Two F-212 Steel cylindrical test pieces.

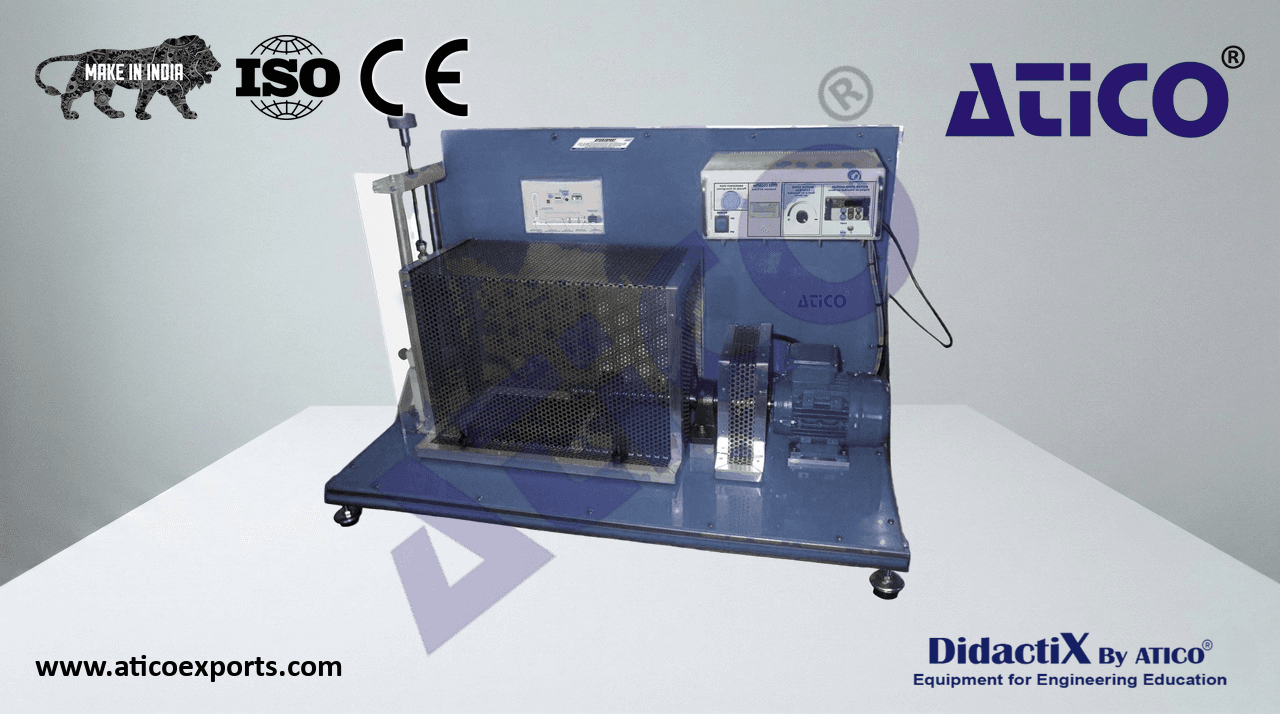

ATENG 12232 detail
Six F-212 Steel cylindrical test pieces, with different notches.
- The unit includes all the safety measures required for a safe operation:
Metallic protection cages, a fixed one for the motor axis outlet and a removable one for the test piece zone; without it the unit does
not work, since it has a safety system to avoid accidents.
Automatic shut down in case of test piece breakage by stop switch (control switch).
- Control box, including:
ON/OFF Main switch of the unit.
ON/OFF Switch of the electric motor.
Cycle counter, with digital display.
Motor speed controller.
Motor speed digital display.
Cables and accessories, for normal operation.
