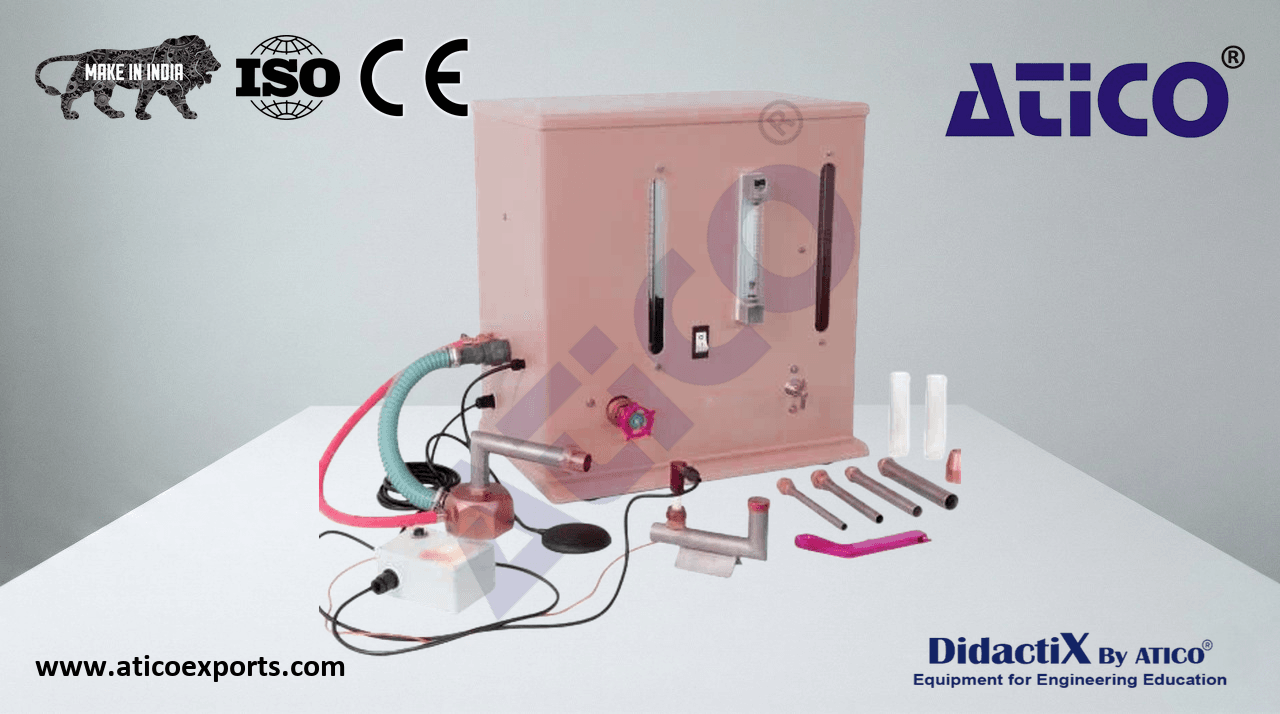

FLAME PROPAGATION AND STABILITY UNIT

An instrumentation console provides an adjustable and measured flow of both air and gas. Two flowmeters in series ensure that a wide range of typical slow burning gaseous fuels (e. g. Learn about FLAME PROPAGATION AND STABILITY UNIT suppliers for optimal educational outcomes.. Propane, Butane, Methane, LPG) can be used and measured accurately. For operator safety an interlock ensures that gas flow can only be initiated with an operator actively in attendance. Learn about FLAME PROPAGATION AND STABILITY UNIT equipment for optimal educational outcomes..

• Panel: Vacuum formed in which all controls, fan and instruments are mounted.
• Airflow: Glass variable area flowmeter.
• Gas Flow: Glass variable area flowmeter to cover wide range of low speed combustible gases (e.g. Propane, Butane, Methane, LPG).
• Burner Tubes: 4 interchangeable steel burner tubes in a range of diameters.
• Stabiliser Cups: Two brass conical cups to fit two of the burner tubes.
• Smithells Tube: Heat resistant glass tube and brass adapter.
• Igniter: Handheld manual.
• Safety: Gas control solenoid valve with foot switch. Combined overload cut out and on/off switch, earth leakage circuit breaker.
• Flame Speed System: Long, large diameter clear tube, with mains driven high-voltage spark igniter and two adapters each with flame traps.
• Miniature circuit breaker (MCB)
• Residual Current Circuit Breaker (RCCB)
