FLAT PLATE SOLAR ENERGY COLLECTOR

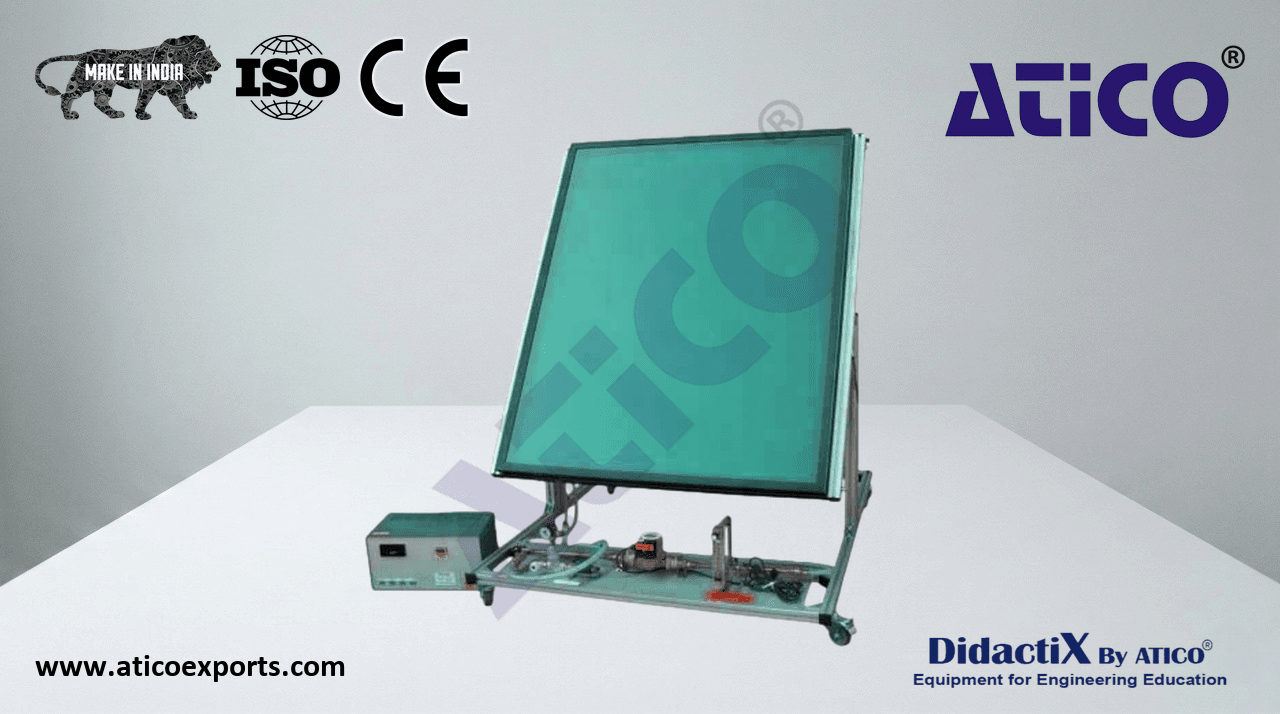

A flat plate solar collector similar to those used for heating swimming pools or domestic hot water, mounted on an adjustable frame. The unit is designed for internal or external operation – for internal use an artificial solar source is available as an optional extra. An instrumentation and water-circulating console is connected to the panel under test via flexible hoses, displaying circulating water flow, flow and return temperatures, ambient temperature, and incident solar radiation. Learn about FLAT PLATE SOLAR ENERGY COLLECTOR specifications for optimal educational outcomes.. The operating temperature of the system is adjusted by a flow of cooling water, enabling investigation of performance over a range of operating conditions. Incident solar energy is measured using a solarimeter, and together with other measured parameters, allows the performance and efficiency of the system to be determined under all operating conditions. Learn about FLAT PLATE SOLAR ENERGY COLLECTOR price for optimal educational outcomes.. A compass and adjustable level indicator are supplied for accurate panel alignment on site.

• Frame: Extruded aluminium
• Lockable castor wheels on two corners
• Protractor with integral level: 1° increments
• Panel dimensions: 1500(L) × 1170(W) mm
• Solarimeter digital display
• Digital temperature indicator
• Thermocouple selector switches
