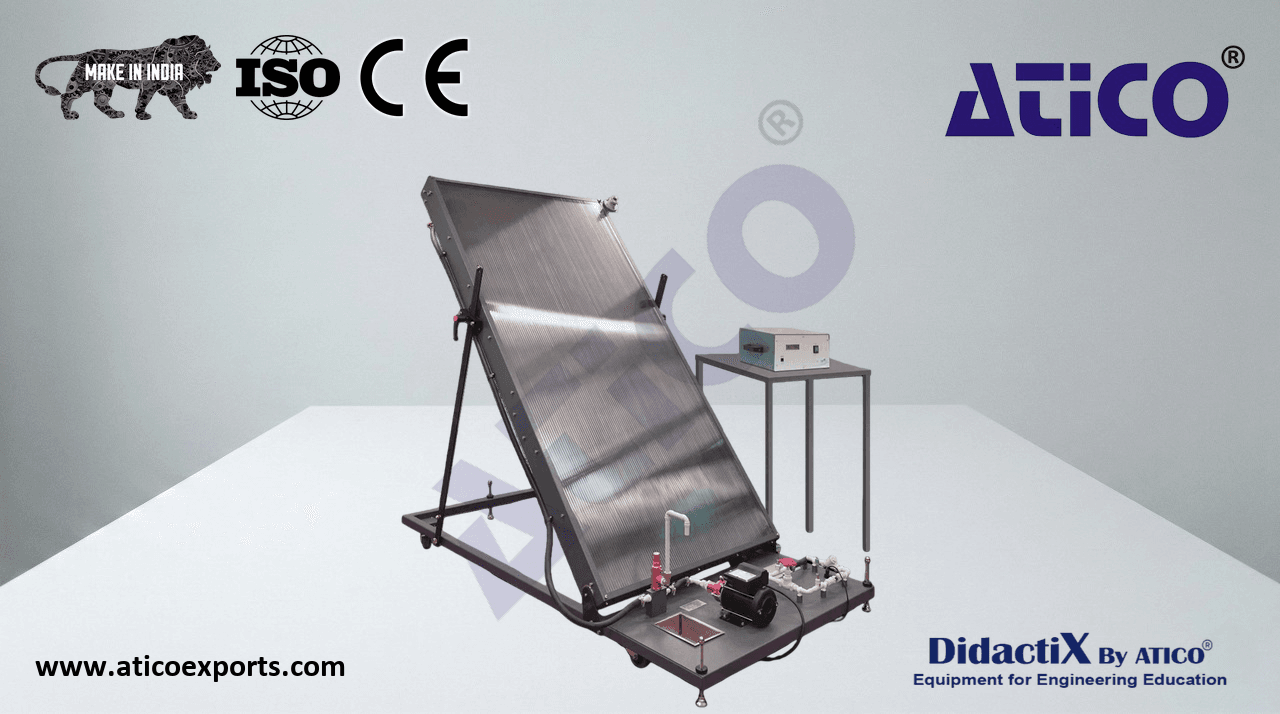

FLAT PLATE SOLAR THERMAL ENERGY COLLECTOR

Floor-standing, folding mobile apparatus with instrumentation that illustrates the workings of a flat plate solar energy collector and allows students to study its performance.

This equipment shows how a flat plate solar thermal energy collector works. It allows students to measure and find the efficiency and heat losses of a flat plate solar thermal energy collector. The collector has a purpose designed and built panel for quality and reliability. Learn about FLAT PLATE SOLAR THERMAL ENERGY COLLECTOR equipment for optimal educational outcomes.. The panel has a thin sheet metal absorber backed by riser tubes and insulating material to reduce heat loss to the rear. A box with a clear cover encloses the panel, forming the collector. Learn about FLAT PLATE SOLAR THERMAL ENERGY COLLECTOR specifications for optimal educational outcomes.. A sturdy mobile frame supports the collector. To allow users to adjust its angle, the frame has a hinge. Learn about FLAT PLATE SOLAR THERMAL ENERGY COLLECTOR exporters for optimal educational outcomes.. Cold mains water enters the collector. Sunlight energy heats the water in the collector. Learn about FLAT PLATE SOLAR THERMAL ENERGY COLLECTOR suppliers for optimal educational outcomes.. The heated water returns to a pump that mixes the heated water with the incoming cold water. A pressure sensitive valve allows the heated water to leave the equipment at the same rate as cold water enters it. Learn about FLAT PLATE SOLAR THERMAL ENERGY COLLECTOR manufacturers for optimal educational outcomes.. A flow transducer measures the water flow rate and a solarimeter (or pyranometer) measures incident radiation. Thermocouples measure the water temperature at all the important points, and the shade temperature. Learn about FLAT PLATE SOLAR THERMAL ENERGY COLLECTOR for educational labs for optimal educational outcomes.. The separate Instrumentation Unit displays the temperatures from the thermocouples, the flow rate and the radiation intensity. It includes a switch to control the pump and a socket for connection to an optional data acquisition system. Learn about FLAT PLATE SOLAR THERMAL ENERGY COLLECTOR alternative-energy India for optimal educational outcomes.. For quick and reliable tests, an optional Versatile Data Acquisition System (VDAS) can be used. VDAS gives accurate real-time data capture, monitoring and display, calculation and charting of all the important readings on a computer. Learn about FLAT PLATE SOLAR THERMAL ENERGY COLLECTOR price for optimal educational outcomes.. Computer not supplied. To compare efficiencies, the Flat Plate Solar Thermal Energy Collector is an ideal companion to the Focusing Solar Energy Collector.
