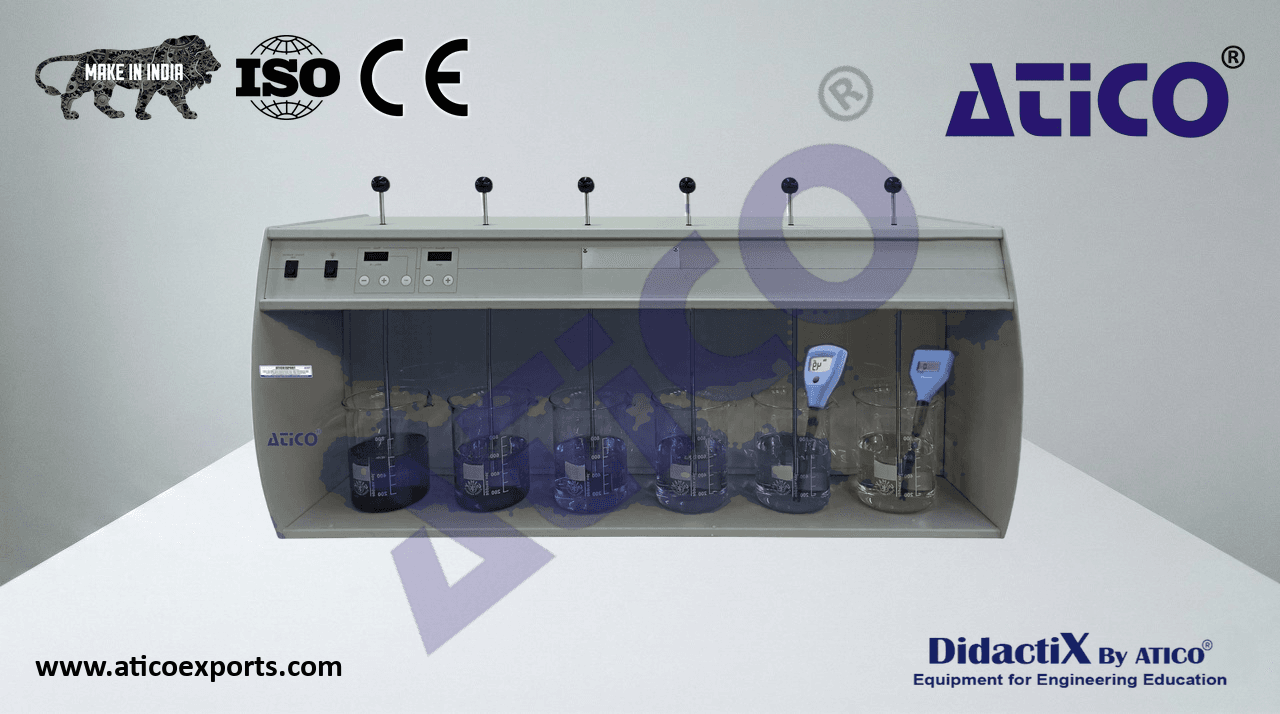

Flocculation Test Unit

The Flocculation Test Unit, allows to study the coagulation and flocculation operations and to analyze the main parameters that determine the colloids removal operation.

ATENG 11992 — Flocculation Test Unit

Bench-top unit.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

• Flocculation test unit illuminated from the rear side:
• Six stirrers with stainless steel paddles. Agitation speed regulation: 10 – 300 rpm.
  Six flocculating graduated vessels.
• Sample volume of each vessel: 1 l.
• Control panel:
• Timer, range: 0 – 999 min / 0 – 99 h.
  Lamp switch.
  Rpm regulator and rpm display.
• Meters:
  pH meter.
  ATENG 11992 detail
  Total dissolved solids (ATENG 12353) and temperature meter.
  Cables and accessories, for normal operation.
