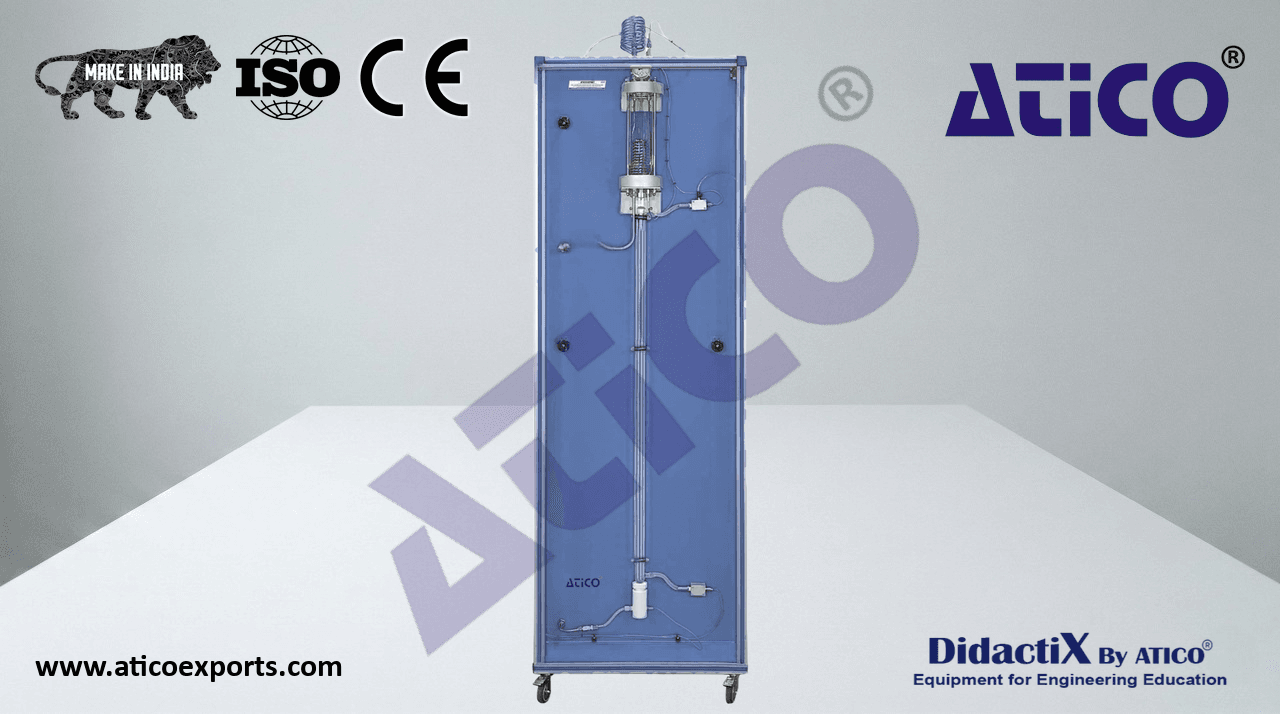

ATENG 12842 — Flow Boiling Demonstration Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Experiment visualisation tube of 1500 mm length composed by two glass concentric tubes.
Refrigerant control valve.
- Condensing chamber:
High resistance borosilicate cylinder.
- Internal diameter: 90 mm.
ATENG 12842 detail
- External diameter: 100 mm.
- Length: 300 mm.
Security valve, placed on the top of the condensing chamber.
Condensate coil, formed by a nickel-plated copper tube with a superficial area of 0.043 m².
Thermostatic bath, that heats the water that flows by the experimental tube periphery. It includes a heating resistance of 600 W. Centrifugal
pump for hot water impulsion.
Water control valve.
Water jet pump for extracting the air and controlling the refrigerant pressure.
Eight temperature sensors “J” type, distributed along the process to know the heat transfers occurred.
- Pressure meter, range: from -1 – 3 bar.
This unit has been designed for using SES36 refrigerant gas, free of ATENG 11795´s, compatible with the environment.
- Electronic console:
Metallic box.
Temperature sensors connections.
Digital display for temperature sensors.
Selector for temperature sensors.
Pump switch.
Cables and accesories, for normal operation.
