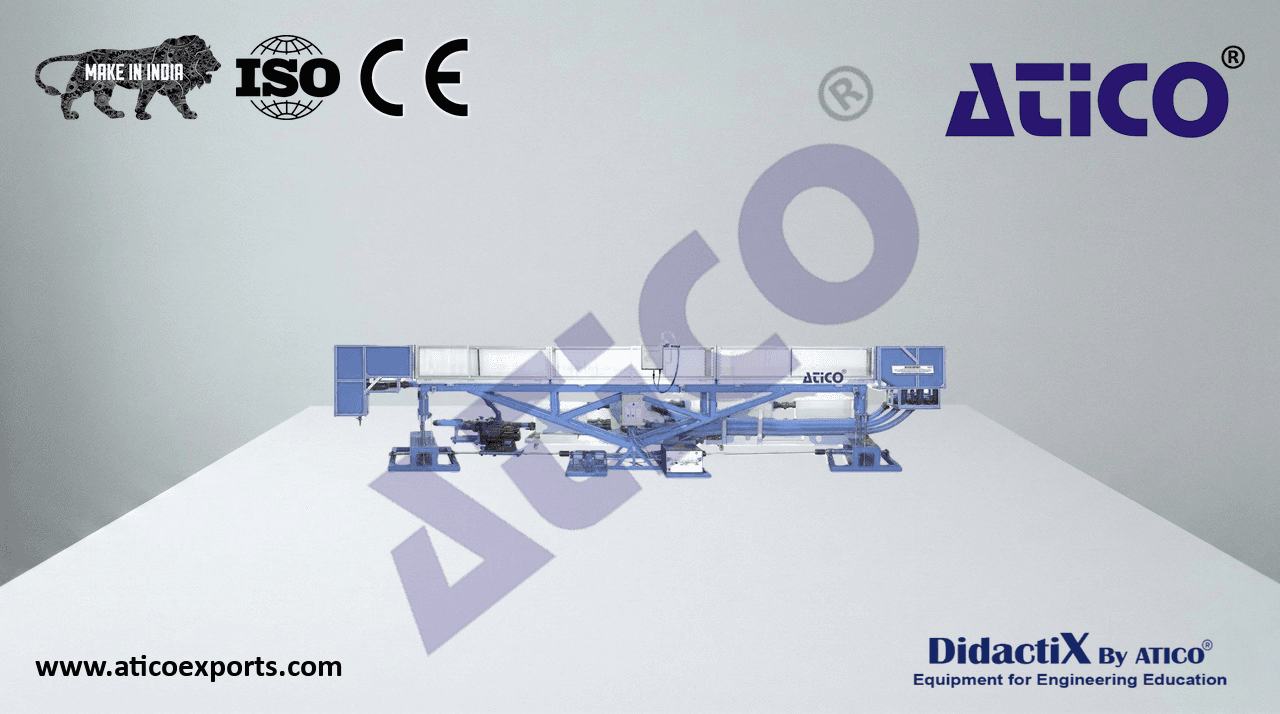

The Flow Channels, are hydrodynamic channels to perform multiple hydraulic tests.
Technical Specifications
ATENG 11800 — Flow Channels
Channel made up of group of modular parts of 2.5 m long. Each rectangular piece of different sections with transparent walls of 10 mm
thick is made in such a way that guarantees a uniform section along the entire channel. All the sections are made of tempered glass, stainless
steel and anodized aluminum, guaranteeing corrosion resistance. The alignment process and level testers guarantee a perfect alignment of
the perfectly watertight assembled unit.
The assembly has inlet and outlet gates to carry out different experiments and safety level switches that prevent water from exceeding the
maximum level.
Robust metal frame, made of welded steel, to support the assembly of sections. It allows for adjusting
the tilt from -0.5 % to 2.5 %.
Fiberglass inlet tank with draining valve and safety water level switch.
Fiberglass reception tank with draining valve and safety water level switch.
Recirculating water storage tanks. The tanks are provided with cover and drain valve on the lower
part, capacity: 1200 l.
Variable speed driving pump. The power of the pump varies in function of the channel version from
140 m³/h, 4 kW up to 480 m³/h, 12 kW. Water velocity inside the channel can be controlled from 0
m/s to the maximum flow rate supplied by the pump.
Measurements:
Graduated scales to obtain the channel height position (tilt).
Differential pressure digital indicator for inlet flow measurement (included in CFGTVC).
Available versions to choose:
CFG300/2.5. Flow Channel (section: 300 x 450 mm), length: 2.5 m.
CFG300/5. Flow Channel ((sans accessoires) section: 300 x 450 mm), length: 5 m.
CFG300/7. Flow Channel (section: 300 x 450 mm), length: 7.5 m.
CFG300/10. Flow Channel (section: 300 x 450 mm), length: 10 m.
ATENG 11800 detail
CFG300/12. Flow Channel (section: 300 x 450 mm), length: 12.5 m.
CFG300/12.5. Flow Channel (section: 300 x 450 mm), length: 12.5 m (without accessories).
CFG300/20. Flow Channel (section: 300 x 450 mm), length: 20 m.
CFG310/5. Flow Channel (section: 310 x 450 mm), length: 5 m.
CFG310/7. Flow Channel (section: 310 x 450 mm), length: 7.5 m.
CFG310/10. Flow Channel (section: 310 x 450 mm), length: 10 m.
CFG310/12. Flow Channel (section: 310 x 450 mm), length: 12.5 m.
CFG400/5. Flow Channel (section: 400 x 500 mm), length: 5 m.
CFG400/7. Flow Channel (section: 400 x 500 mm), length: 7.5 m.
CFG400/10. Flow Channel (section: 400 x 500 mm), length: 10 m.
CFG400/12. Flow Channel (section: 400 x 500 mm), length: 12.5 m.
CFG600/5. Flow Channel (section: 600 x 800 mm), length: 5 m.
CFG600/7. Flow Channel (section: 600 x 800 mm), length: 7.5 m.
CFG600/10. Flow Channel (section: 600 x 800 mm), length: 10 m.
CFG600/12. Flow Channel (section: 600 x 800 mm), length: 12.5 m.
CFG600/16. Flow Channel (section: 600 x 800 mm), length: 16 m.
CFG1000/5. Flow Channel (section: 1000 x 1100 mm), length: 5 m.
CFG1000/7. Flow Channel (section: 1000 x 1100 mm), length: 7.5 m.
CFG1000/10. Flow Channel (section: 1000 x 1100 mm), length: 10 m.
CFG1000/12. Flow Channel (section: 1000 x 1100 mm), length: 12.5 m.
CFG1000/15. Flow Channel (section: 1000 x 1100 mm), length: 15 m.
Note: We design any Fluid Channel according to your specifications. Contact us for more information.
Cables and Accessories, for normal operation.
