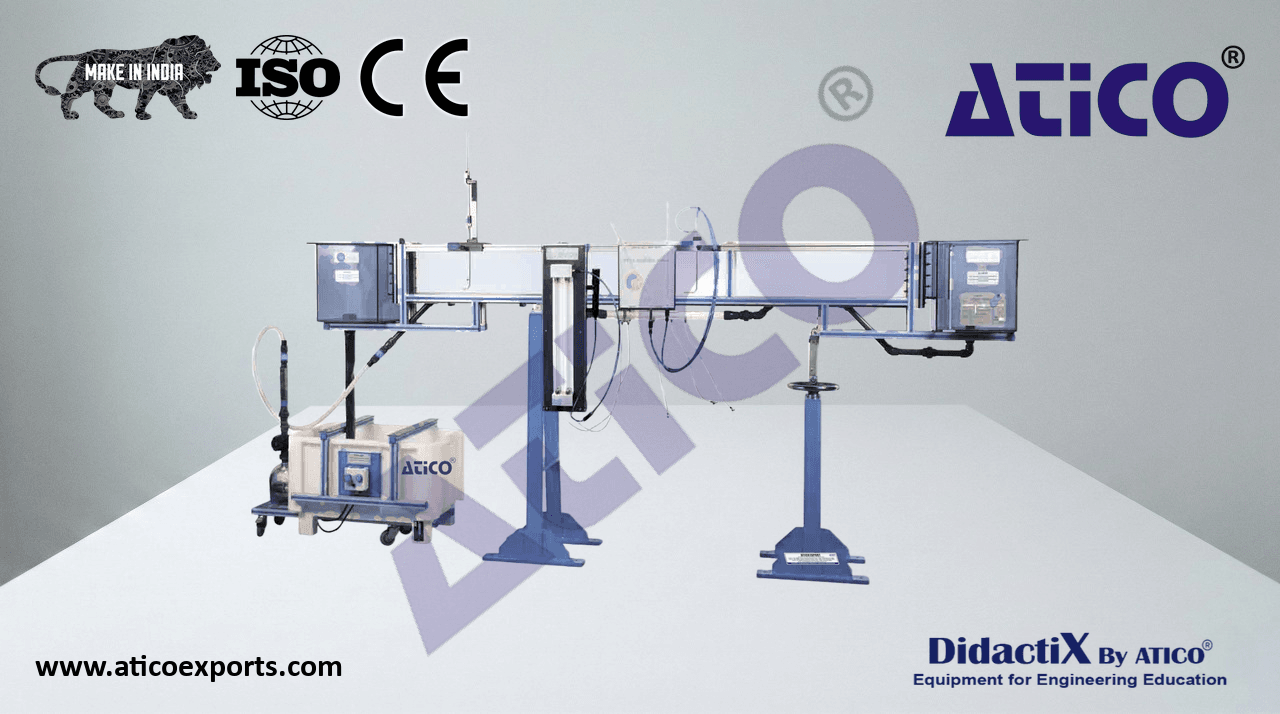

ATENG 11797 — Flow Channels (section: 80X300 mm)
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
Channel of rectangular section with transparent walls, formed by methacrylate transparent sections.
- Available versions to choose:
- CF80/2. Flow channel (section: 80 x 300 mm), length: 2.5 m.
- CF80/5. Flow channel (section: 80 x 300 mm), length: 5 m.
The channel is assembled on supports, with a system to control the inclination of the channel.
- Adjustable channel inclination, range: 0 – 3 %.
- Inlet tank (capacity: 38 l), with stilling of flow and with drain valve.
- Reception tank (capacity: 38 l), with drain valve.
Pipes.
Orifice plate flowmeter.
Venturi type flowmeter.
- Manometric tubes panel. It is formed by two methacrylate tubes of 500 mm of length, with a graduated
panel and a hand pump.
ATENG 11797 detail
- Included elements:
- ATENG 12037. Basic Hydraulic Feed System:
- Storage tank (capacity: 140 l approx).
- Impulsion pump:
- Single-phase, 200 VAC – 240 VAC/50 Hz or 110 VAC – 127 VAC/60 Hz.
0.37 KW.
- 2800 rpm.
30 – 80 l/min at 20.1 – 12.8 m.
Safety switch ON/OFF.
- Flowmeter, range: 600 – 6000 l/h.
Flow control valve.
Cables and accessories, for normal operation.
