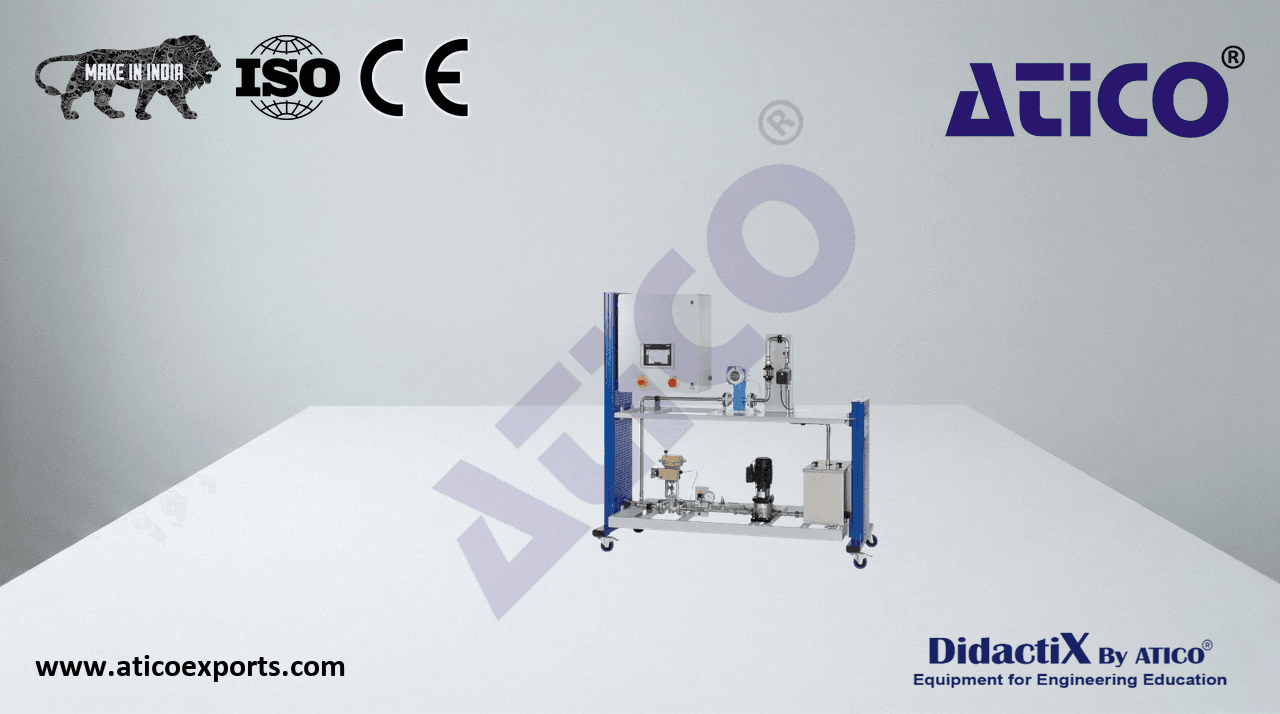

Flow control

The RT 451 – 455 series is constructed entirely from industrial components in order to teach control engineering in a practical manner. The use of smart sensors lays the foundations for Industry 4. 0 applications. Learn about Flow control Mechatronics Trainers9 India for optimal educational outcomes.. Smart sensors provide signal processing in addition to the capture of measured values thanks to integrated evaluation electronics. Besides process data, it is also possible to exchange configuration, diagnostic or statistical data. Learn about Flow control suppliers for optimal educational outcomes.. In practice this makes it faster to change over production lines, for example, or enables predictive maintenance.

• flow rate control process with standard industrial components and smart sensors
• digital control via PLC, controller can be parametrised as P, PI, or PID controller
• controlled system: pipe section with water flow
• measuring element: smart flow rate sensor with Profinet connection for transfer of additional values, electromagnetic measurement
• actuator: electropneumatic control valve with positioner
• generate disturbance variables via proportional valve with motor drive, operation via PLC
• closed water circuit
• remote learning: follow and analyse experiments at any number of workstations with LAN/WLAN connection via network capable software
• software for data acquisition via LAN under Windows 11
• multimedia instructional materials online in Media Center
