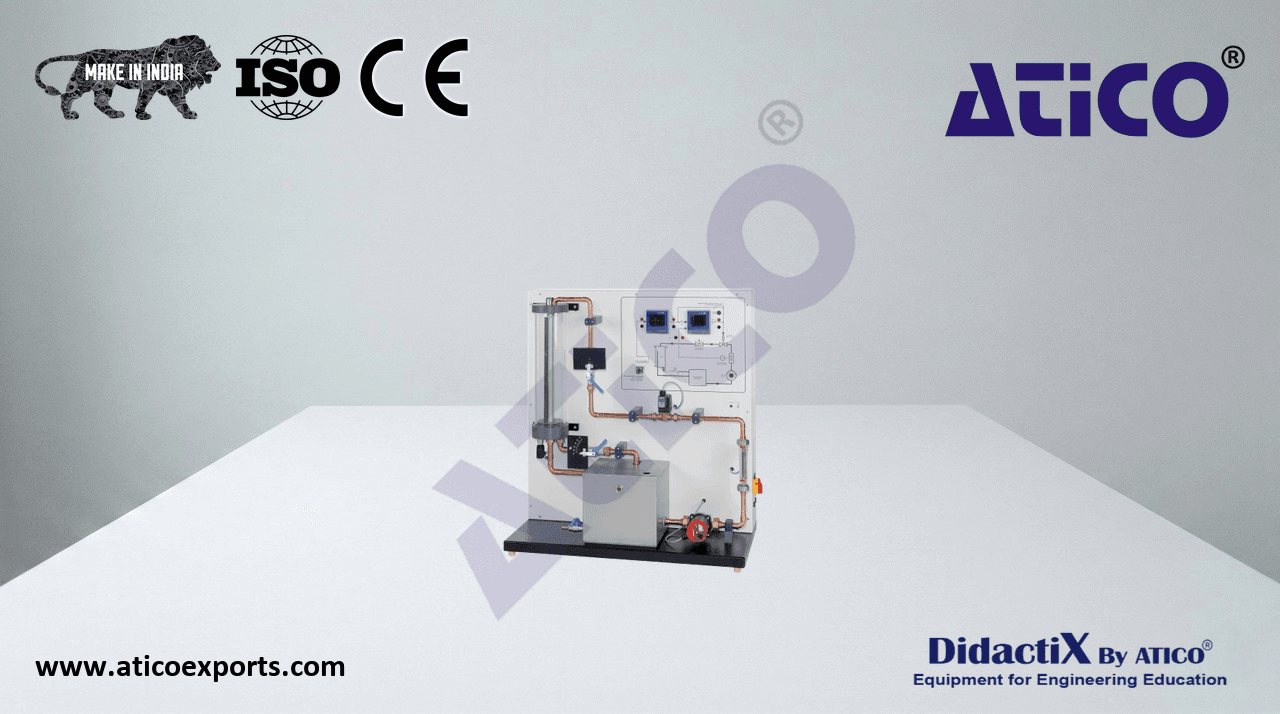

Flow / level control demonstration unit

The experimental unit provides a comprehensive experimental introduction to the fundamentals of control engineering using an example of combined flow and level control. The level and flow rate can be controlled individually and as a cascade. In cascade mode the level is the primary controlled variable. Learn about Flow / level control demonstration unit suppliers for optimal educational outcomes.. The flow control then provides optimum adjustment of the controlled variable to the reference variable (set value).

• control engineering experiments with components commonly used in industry
• level and flow control individually, and cascaded
• level measurement by pressure sensor
• flow rate measurement by rotameter with electrical output
• 2 digital industrial controllers, parameterisable as P, PI or PID controllers, cascade
• generation of disturbance variables by ball valves with scale
• actuator: electromagnetic proportional valve
• level-controlled tank with overflow and scale
• key process variables accessible as analogue signals at lab jacks
• large process schematic on front panel
