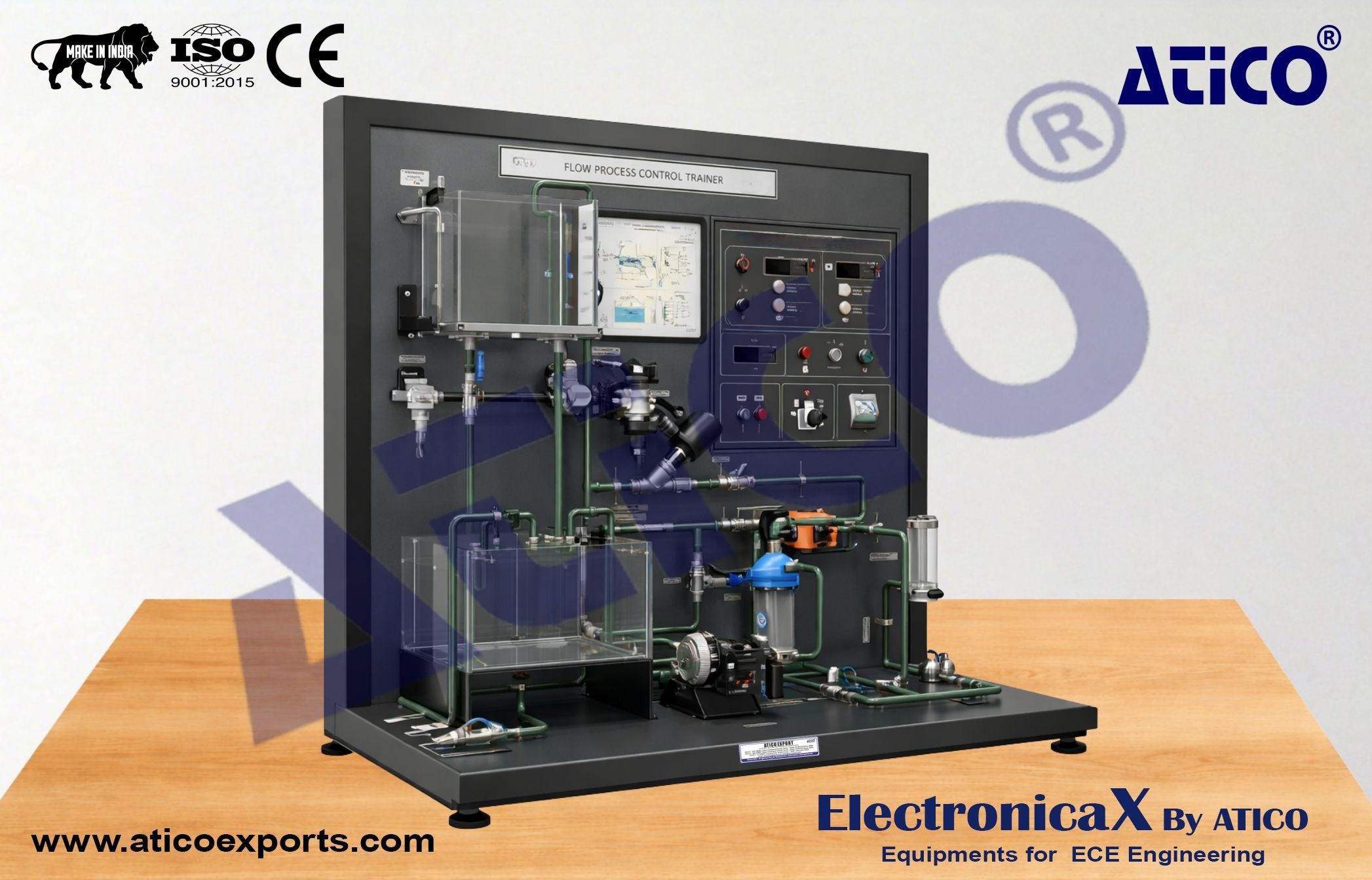

Flow Process Control Trainer

Introduction to fundamentals of process control (open loop, close loop control response).
Familiarization with industrial process control components (controllers, transducers, actuators).

• Implementation of controlled variable in open loop and feed forward control system.
• Implementation of controlled variable in closed loop control system.
• Application of ON/OFF controller in single loop control system.
• Investigation of disturbance and control response.
• Application of P, PI and PID controller in single loop control system.

• Influence of controller parameters (P, I and D) on stability and control quality.
• Tuning of PID controller.
• Processing of process variables using data acquisition (DAQ).
• Using computer for process control monitoring and analysis (SCADA).
