Flow Visualisation Channel

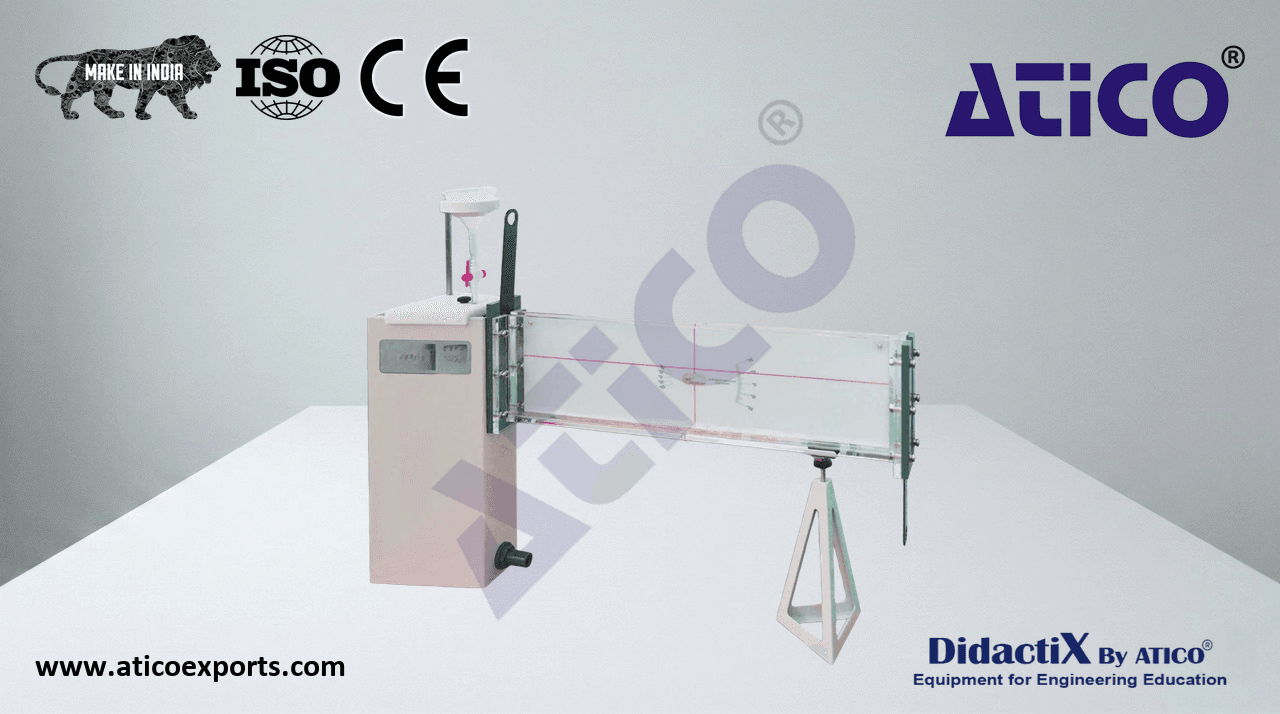

A compact, entry-level piece of equipment for visualising flow patterns around weirs and other objects in an open channel. Can also be used with the included lock gates to perform wave flow experiments.

The apparatus consists of a robust stainless steel settling tank that reduces turbulence, flowing into a 15 mm wide flow channel fabricated from transparent acrylic, together with various models, gates, weirs and hydrofoils. The channel is fitted with dye injectors enabling the details of flow to be easily demonstrated and observed through streamlines. The equipment is designed primarily for use with the Digital Hydraulic Bench (available separately) which provides the necessary water supply, drain and volumetric flow-measurement facilities. Learn about Flow Visualisation Channel suppliers for optimal educational outcomes.. Alternatively, the customer may arrange their own water supply and flow measurement facilities if desired.
