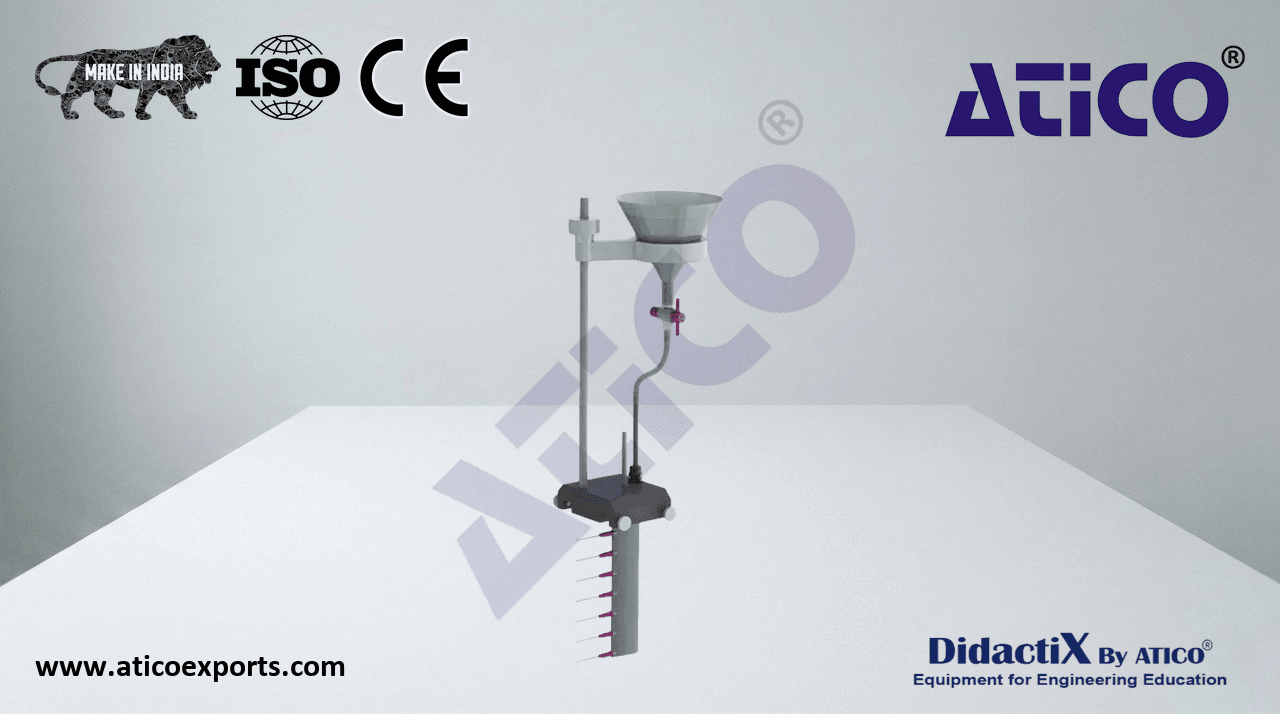

FLOW VISUALISATION DYE INJECTOR

A gravity-fed dye injector to enable the visualisation of flow lines around obstacles in the channel.

The flow visualisation ancillary is for use with the compact flume, allowing you to clearly see turbulent and laminar flow lines around obstacles within the channel. The supplied dye is introduced via eight injectors resulting in distinct streamlines highlighting the flow within the channel. The apparatus is designed to enable students to visualise patterns of flow around various models and under different flow conditions. Learn about FLOW VISUALISATION DYE INJECTOR exporters for optimal educational outcomes.. It can be used with other ancillaries supplied with the flume, for example the Venturi Sides, Sharp Crested Weir or the Broad Crested Weir.
