Fluid deaeration ASTM D3427 for petroleum, petrochemicals, pharmaceuticals, aerospace, cosmetics, food, etc.

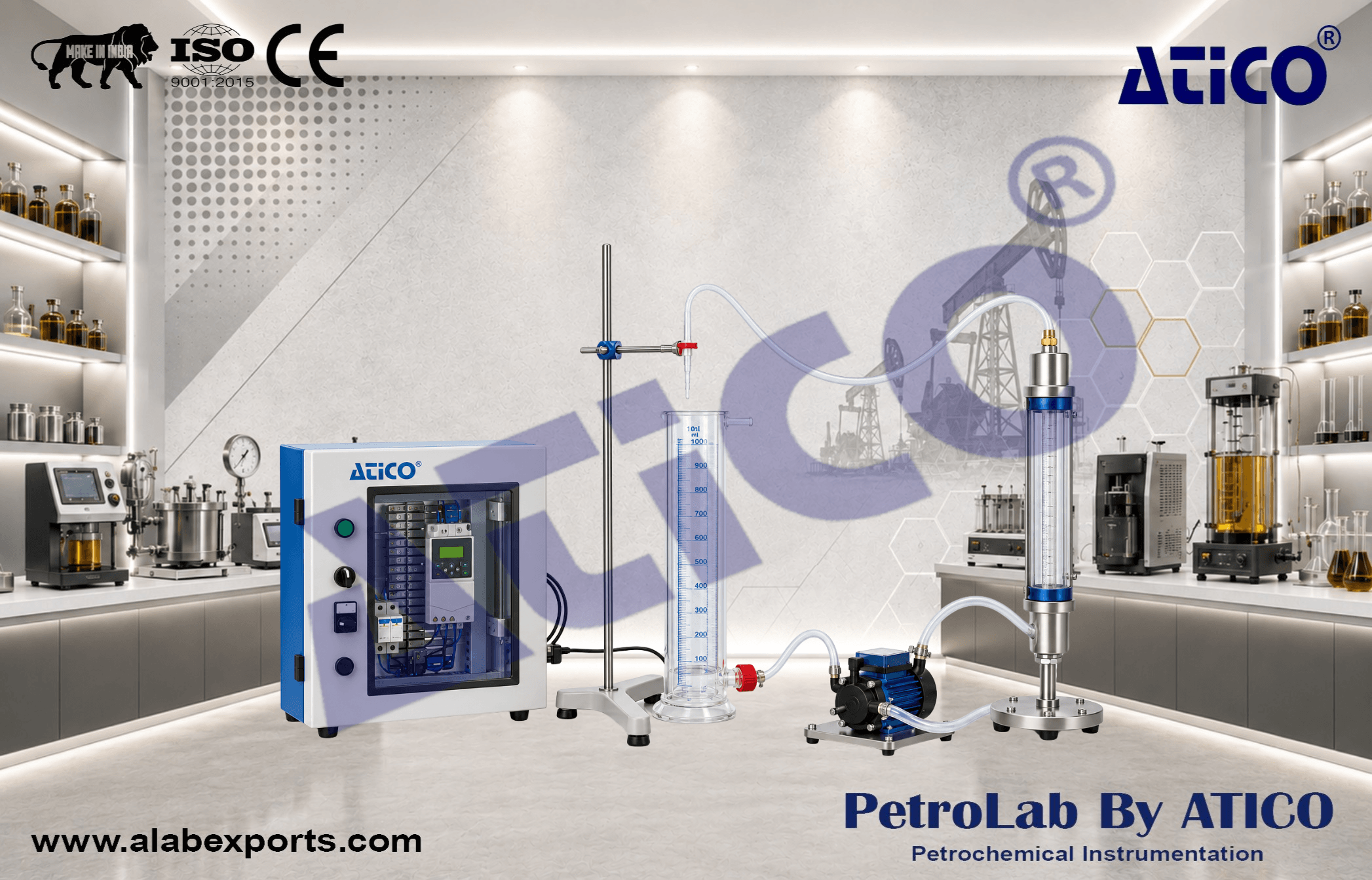

The automatic air release properties tester is designed to determine the air release characteristics of oils under controlled temperature and pressure conditions. It features an 8.4-inch resistive color touchscreen, automatic result calculation, precise temperature monitoring, and a high-precision balance. Manufactured by Atico Export with an emphasis on operational reliability and precise measurements for petroleum research and industrial testing.

Temperature Range :

• 25�C to 75�C
• Adjustable through the user interface
• Temperature resolution: 0.1�C

Supplied With :

• Thermostatic bath
• Complete impinger vessel
• 10 mL glass plunger tube with platinum wire for density measurement
• Mercury-free ASTM 12C thermometer without certificate
• Electronic temperature controller
• Balance with 0.1 mg precision
• Thermal ticket printer
• Pair of gloves

Options and Accessories :

• Oven for heating samples to 10�C above the test temperature
• Drying tower
• 5 mL and 10 mL plungers

Safety Features :

• Audible alarm at the end of the test
• Overheating protection
• Overpressure cutoff
• Safety indicator for absence of airflow
• Quick coupling between glassware and thermostatic bath

Software and Data Management :

• Data updates and backups through USB
• Connectivity for keyboard, mouse, barcode scanner and printer
• Storage capacity for more than 1000 results
• Real-time test progress monitoring

Balance Capacity :

• 52 g

Maximum Inlet Pressure :

• 0.5 bar
• 7 PSI
• 50 kPa

Bath Capacity :

• 6 liters of water

Power Supply :

• 230 V, 50/60 Hz, 16 A

Dimensions :

• Width: 750 mm
• Depth: 300 mm
• Height: 568 mm

Weight :

• 60 kg

• 8.4-inch resistive color touchscreen
• Air pressure measurement using needle gauge
• Air temperature measurement using PT100 probe and ASTM 12C thermometer
• Quick positioning of glassware
• Recording of different plunger types
• Automatic result calculation
• Integrated LED lighting
