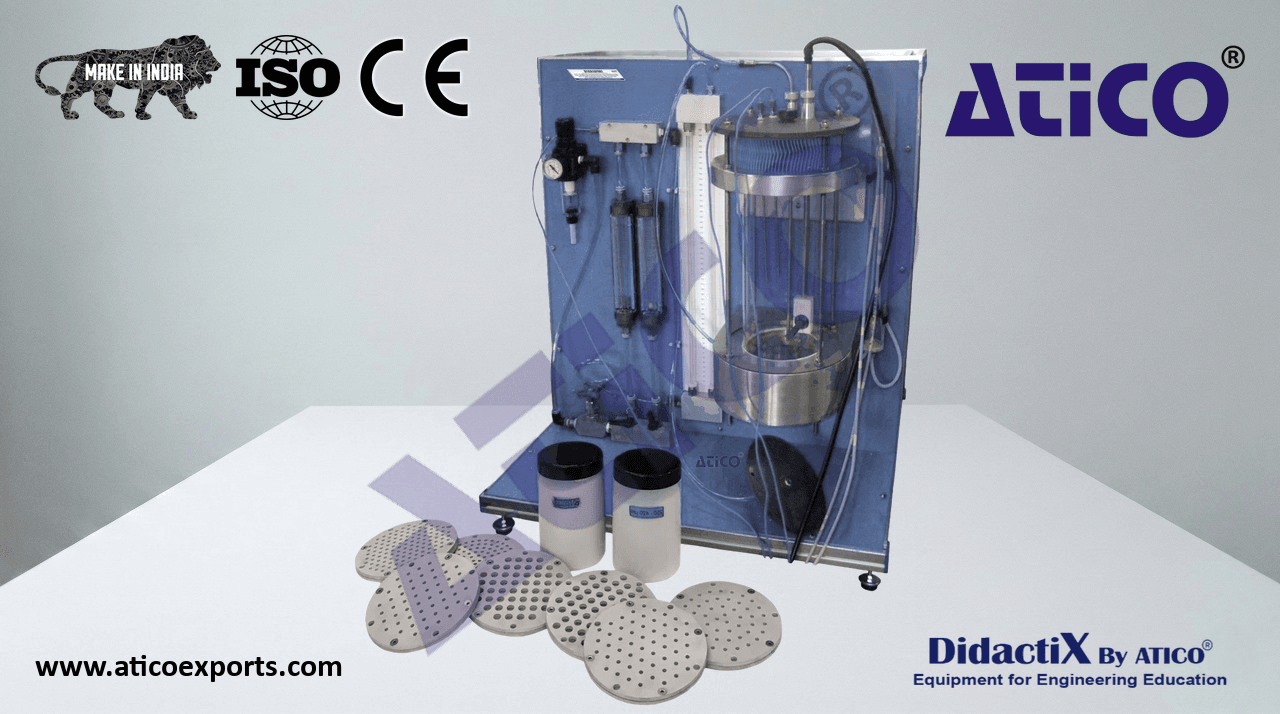

ATENG 12845 — Fluidization and Fluid Bed Heat Transfer Unit
Bench-top unit.
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Pressure regulator and filter. It is supplied fixed to 3 bar.
Regulation valve to regulate the flow of air at the inlet of the bed chamber.
- Bed chamber:
Cylinder made of glass where the granular material that forms the bed is contained.
Back light to facilitate the visualization of the fluidized bed.
- It includes:
- Heating element:
- Cylindrical heating element with copper coating:
- Transfer area: 20.4 cm².
- Maximum power: 150 W.
Potentiometer that regulates the current to the heating element.
ATENG 12845 detail
Heating power measurement with a wattmeter.
“J” type temperature sensor on the surface of the heating element.
Filter at the top of the chamber.
Distributor at the bottom of the bed chamber. Nine different distributors are included with different number of orifices, different sizes
of orifices and different distribution of orifices.
Graduated scale to measure the height of the bed.
- Two “J” type temperature sensors to measure:
Bed temperature.
Air temperature at the outlet of the chamber.
- Granular material (glass beads):
1 Kg (170 – 300 microns).
1 Kg (250 – 420 microns).
Safety tank made of PMMA to prevent overpressures in the chamber.
Two ball valves to select the flowmeter in function of the working range.
“J” type temperature sensor to measure the air temperature at the inlet of the chamber.
- Two flowmeters to measure the inlet air flow of the bed chamber:
- Flowmeter 1, range: 22 – 130 l/min.
- Flowmeter 2, range: 1 – 5.5 l/s.
- Differential pressure U-shaped manometer to measure the pressure drop in the bed. Range: 0 – 500 mm H O.
“J” type temperature sensor to measure the air temperature at the inlet of the chamber.
- Pressure sensor to measure the air pressure at the inlet of the chamber. Range: 0 – 100 PSI.
- Electronic console:
Metallic box.
Temperature sensors connections. Selector for temperature sensors. Digital display for temperature sensors.
LED lighting switch.
Power regulator.
Wattmeter display.
Main switch.
Cables and accessories, for normal operation.
