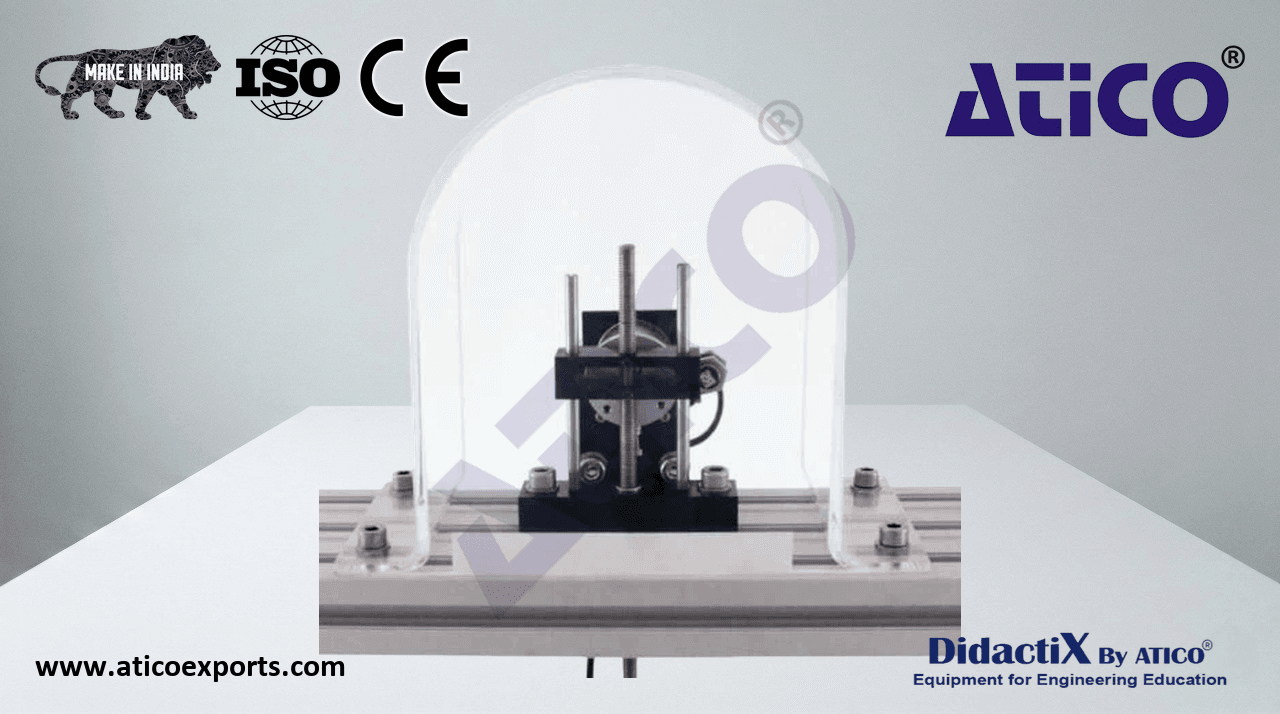

FORCED DISPLACEMENT OF SPRING SUPPORT MODULE

A module that attaches to the top of the main spring mass vibration unit via an angle bracket locating into the frame extrusion. The module clamps onto the support studding normally used to fix the top of the spring, converting the apparatus to study forced displacement at the spring support.

• 1 × Proximity sensor
• 1 × Top guard
• 1 × Displacement bracket
• 1 × Spring support guide
