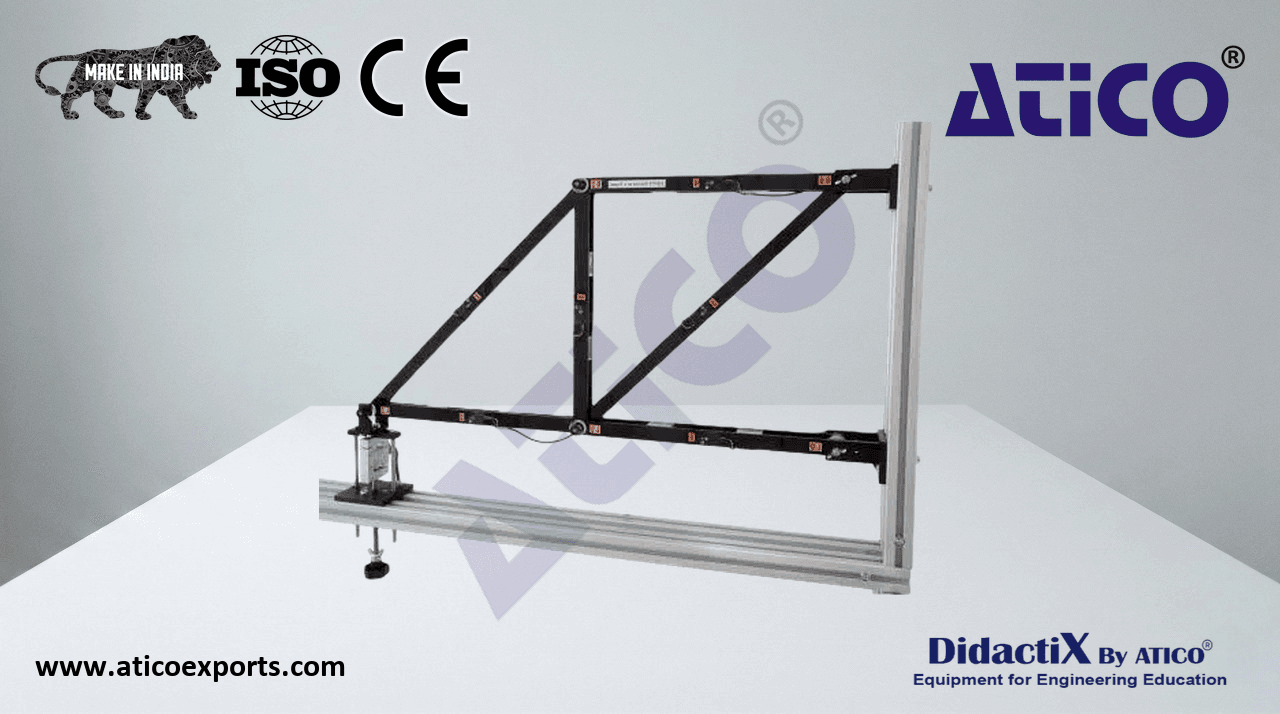

FORCES IN A TRUSS (RESOLUTION) Deluxe

A two-bay, 45° cantilevered truss is suspended from the inside vertical edge of a universal frame and stand (sold separately). A screwjack loading mechanism with integral load cell applies the truss loading. Each truss member is joined at its ends by true pin joints. Learn about FORCES IN A TRUSS (RESOLUTION) price for optimal educational outcomes.. The strain — and hence force — in each member is measured using strain gauge technology applied to each member. Outputs from the member strain gauges and load cell feed directly into a digital interface (sold separately). Learn about FORCES IN A TRUSS (RESOLUTION) for educational labs for optimal educational outcomes..

• Member centres: 400 mm (vertical and horizontal)
• Member section: 25 (H) × 10 (W) mm acrylic
• Loading Mechanism: 0–500 N
• Gauging type: Half bridge strain gauging
