FOUR BAR CHAIN

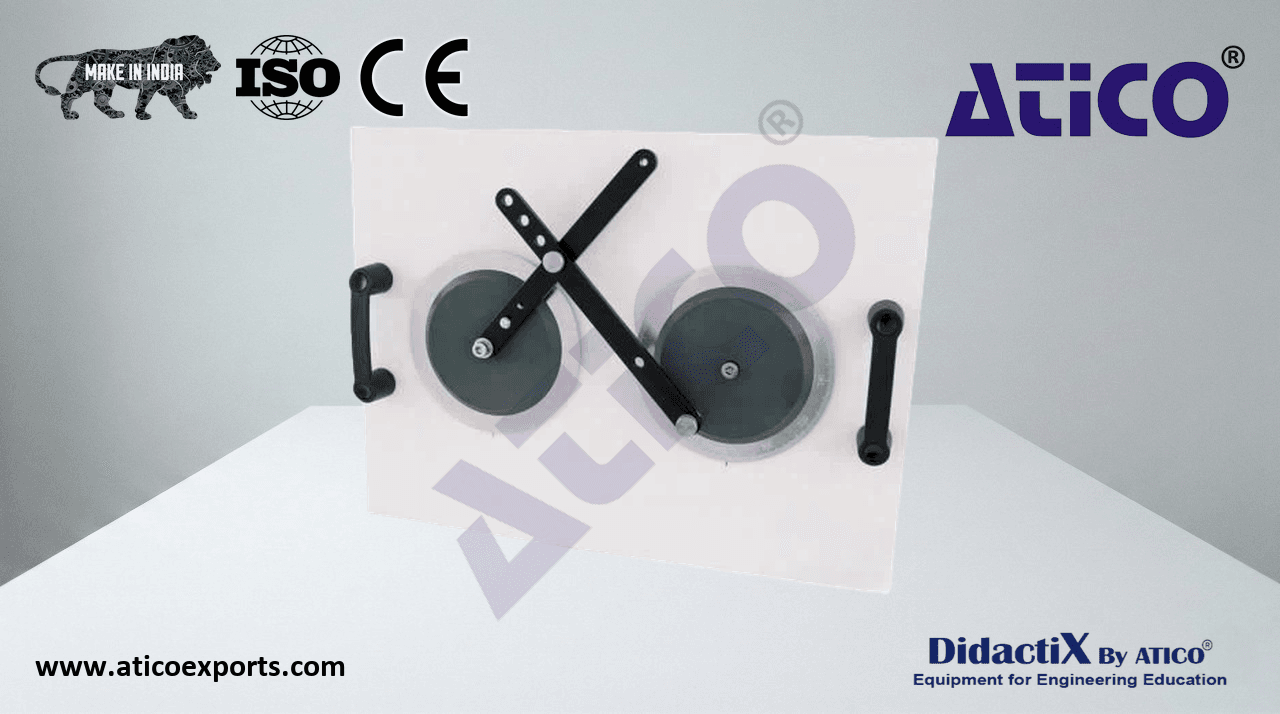

A bench top model for converting rotary motion into oscillatory motion using a four bar chain linkage. A disc mounted on ball bearings acts as a crank, with a protractor scale for accurate angular measurement. The crank pin can be set at different radii. Learn about FOUR BAR CHAIN suppliers for optimal educational outcomes.. Connecting rod and oscillating lever lengths are adjustable using quick-fit bolts. A second disc with its own protractor scale is attached to the oscillating crank. Learn about FOUR BAR CHAIN manufacturers for optimal educational outcomes..

• Crank disc radii: 25 mm and 37.5 mm
• Oscillating crank lengths: 60, 160, 180, 200, 220 mm
• Connecting rod lengths: 100, 150, 200 mm
• Protractors: 360°, 1° increments
