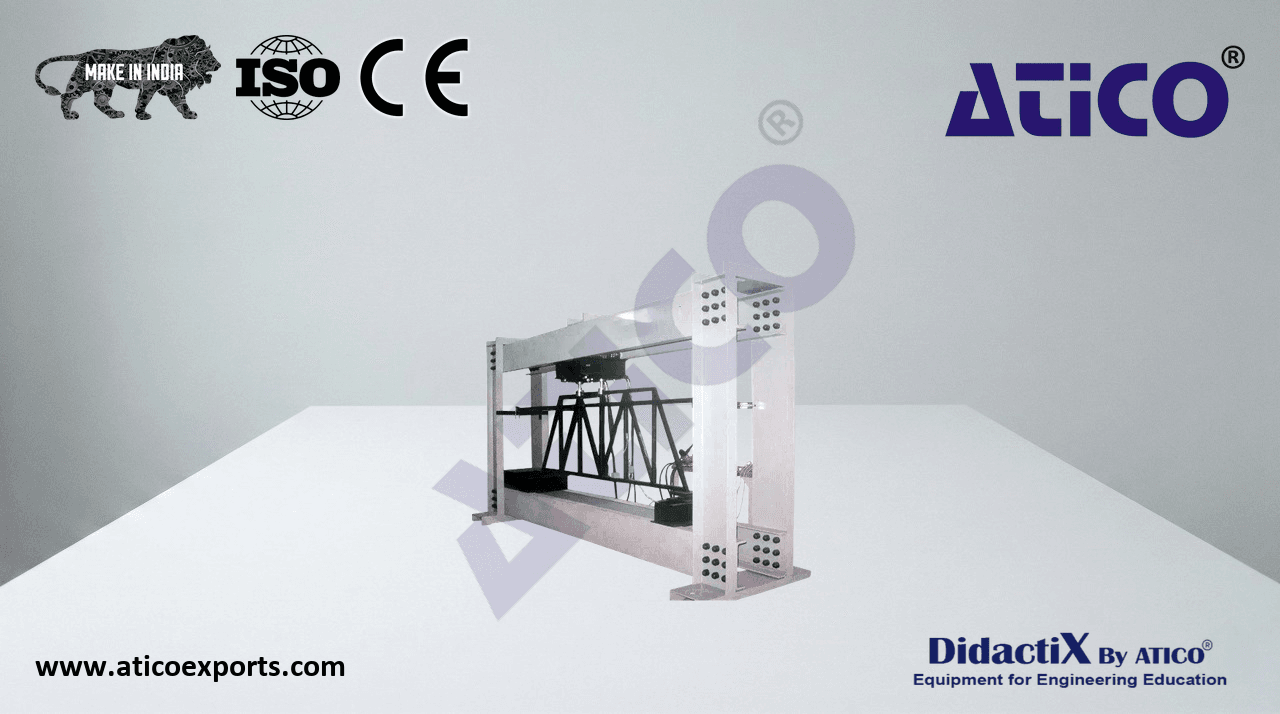

Frame for load testing, 400kN

The demands of modern, technically sophisticated designs require a solid understanding of the strength and deformation of components. Different load states can be simulated in load experiments and the reaction to the load recorded and analysed. This makes it possible to demonstrate the load bearing capacity of the design by means of experiment. Learn about Frame for load testing, 400kN equipment for optimal educational outcomes.. The frame for load tests has been designed specifically for experiments in the fields of steelwork and civil engineering. Large components at a 1:1 scale are studied. Learn about Frame for load testing, 400kN suppliers for optimal educational outcomes..

• investigation of components at 1:1 scale from steelwork and civil engineering
• frame is delivered in parts, transport through normal doorways possible
• large operating area, designed as a double frame, also suitable for very long components
• mounted on 4 adjustable vibration-damping feet
• hydraulically operated load application device for generating compressive forces available as an accessory
• optionally available load application device mounted on rollers
• load application devices can be positioned at any point on the frame
• experiments with different components such as beams, girders or frames possible
• plane truss with strain gauge for force measurement available as accessory
