Freeze Dryer

The Freeze-Dryer, is able to carry out the freeze-drying process for the drying of different products inside a transparent chamber that allows the control of the pressure, and on heatable trays that allow to control the temperature of the product.

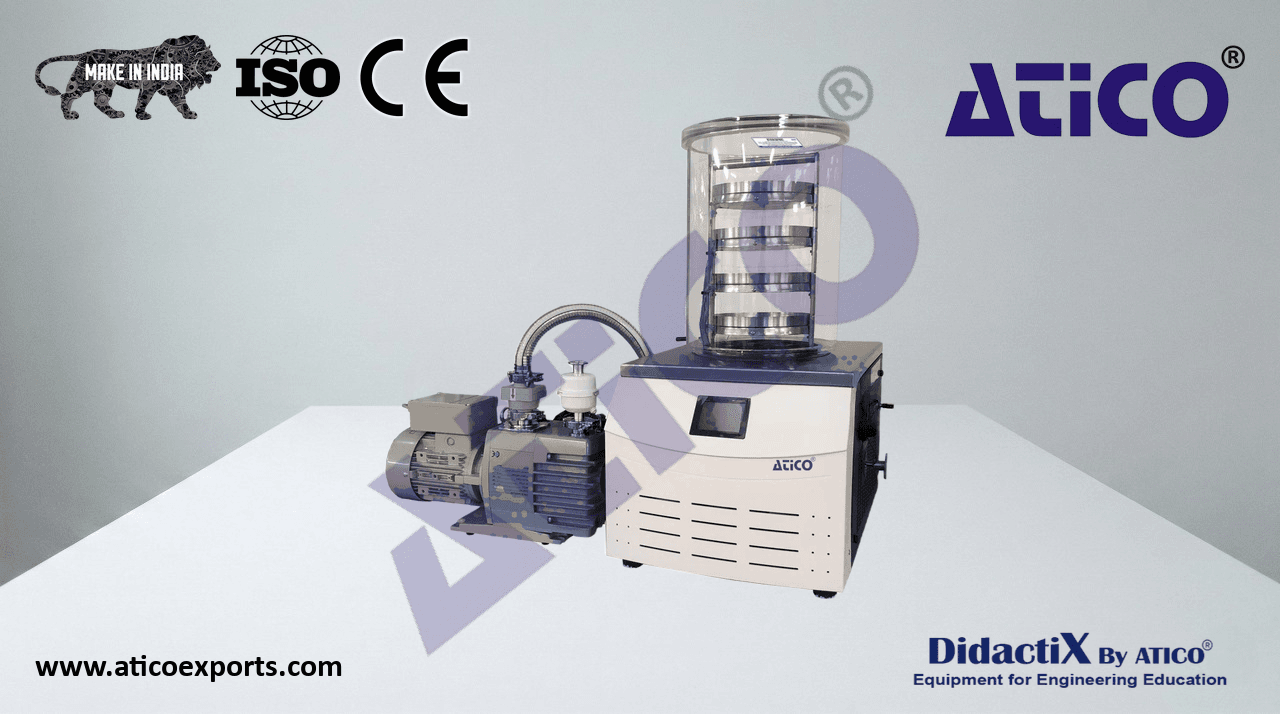

ATENG 11969 — Freeze Dryer

Bench-top unit.

• Transparent methacrylate working chamber for full visualization of the process:
  Four heatable trays.
• Total useful surface: 0.12 m².
• Diameter of the trays: 200 mm.
• Maximum capacity of the condenser: 6 kg.
• Condenser final temperature: - 55 °C.
• Total electrical power: 1400 W.
  Product temperature control.
• Vacuum control:
  Relief valve that allows to work in a manual or automatic way.
• Control by PLC touch screen and USB output:
  Digital display allowing continuous reading of freeze-drying parameters (temperature, pressure, time).
  Possibility to program the process for a correct adjustment of the operation conditions.
  Temperature sensors in the working chamber and the condenser.
  Pressure sensor in the condenser.
• Vacuum pump:
• Nominal flow rate: 6 m²/h.
  Non-return valve.
  Gas discharge filter.
  Cables and accessories, for normal operation.
