FRICTION of BELTS APPARATUS Deluxe

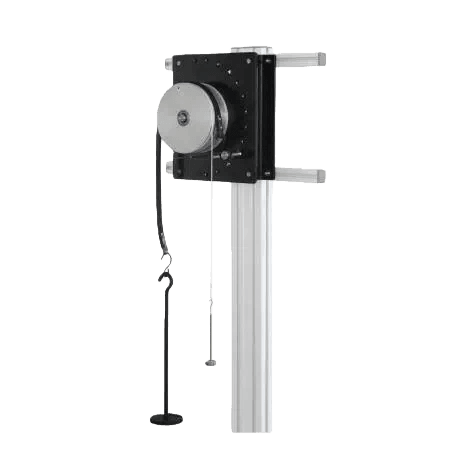

The apparatus consists of a wall mounted pulley with a loaded belt. The pulley is made of aluminium and has two machined grooves to suit a flat, vee belt, and a rope. Each belt fits into its respective groove during testing. Learn about FRICTION of BELTS APPARATUS for educational labs for optimal educational outcomes.. For a given belt tension and angle of lap, a turning moment can be applied by adding weights to the pulley drive hanger. The idea is to determine the torque which just causes the pulley to turn, and so to find the ratio of the belt tensions. Learn about FRICTION of BELTS APPARATUS exporters for optimal educational outcomes.. This enables the belt tension equation to be verified and the coefficient of friction to be determined. The angle of lap can be easily varied by placing one end of each belt at different angular positions on the wall bracket. Learn about FRICTION of BELTS APPARATUS suppliers for optimal educational outcomes.. A removable pin and bar are used to enable the various angular positions to be achieved.

['Single large pulley', "Flat groove and 40° 'V' groove", '150mm effective groove diameter', 'Pulley timing grooves at 18° intervals', 'Belt anchor points at 15° intervals', 'Safety interlock to stop pulley rotating']
