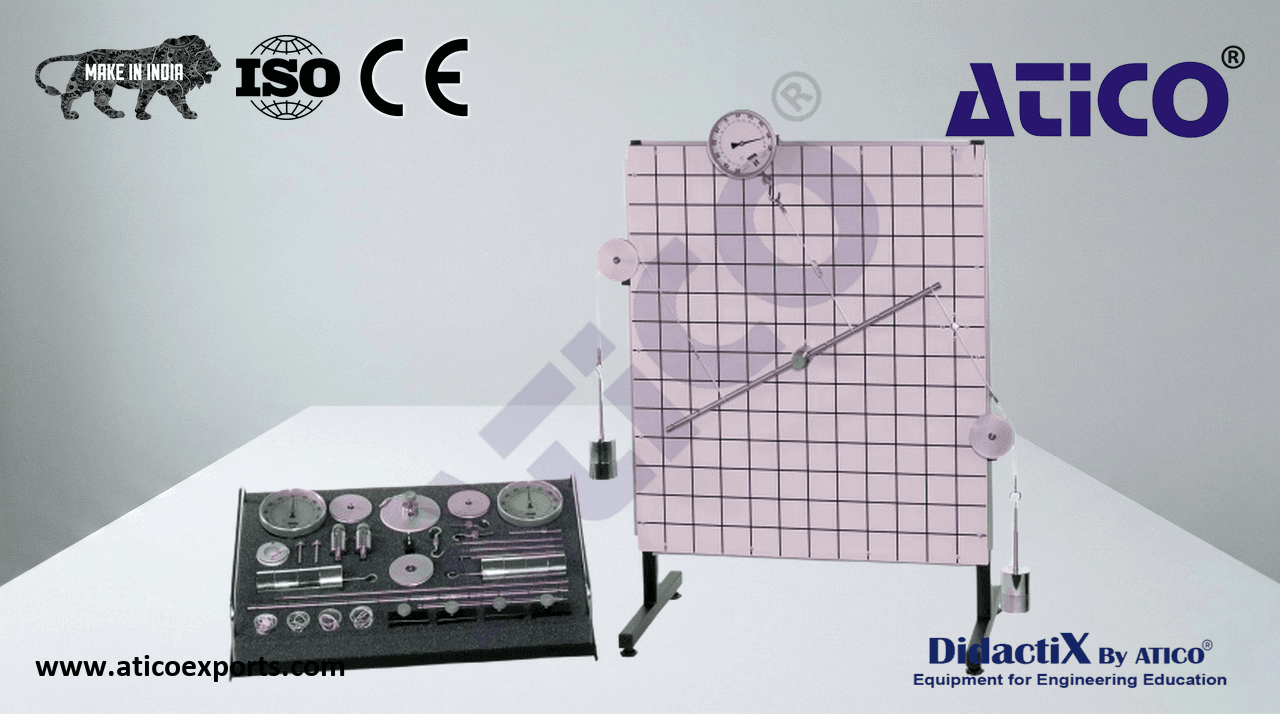

The experimental unit demonstrates fundamental principles of statics such as the equilibrium of forces and moments, resolution of forces, the law of levers, and more.
Technical Specifications
experimental setup to demonstrate simple, planar force systems
panel with rails around the edges for easy mounting of various experimental components
panel with imprinted 50mm line grid and facility to write on using erasable marker
lever rods with 50mm grid
wide range of mountings: cables, rods, pulleys, torque disks, pivot bearings and the like
force gauges for tensile and compressive forces, with large-format display
