g by Free Fall Apparatus Experiment

G by Free Fall Apparatus Experiment is designed to determine the acceleration due to gravity (g) by measuring the time taken by a steel spherical ball to fall through a known distance.

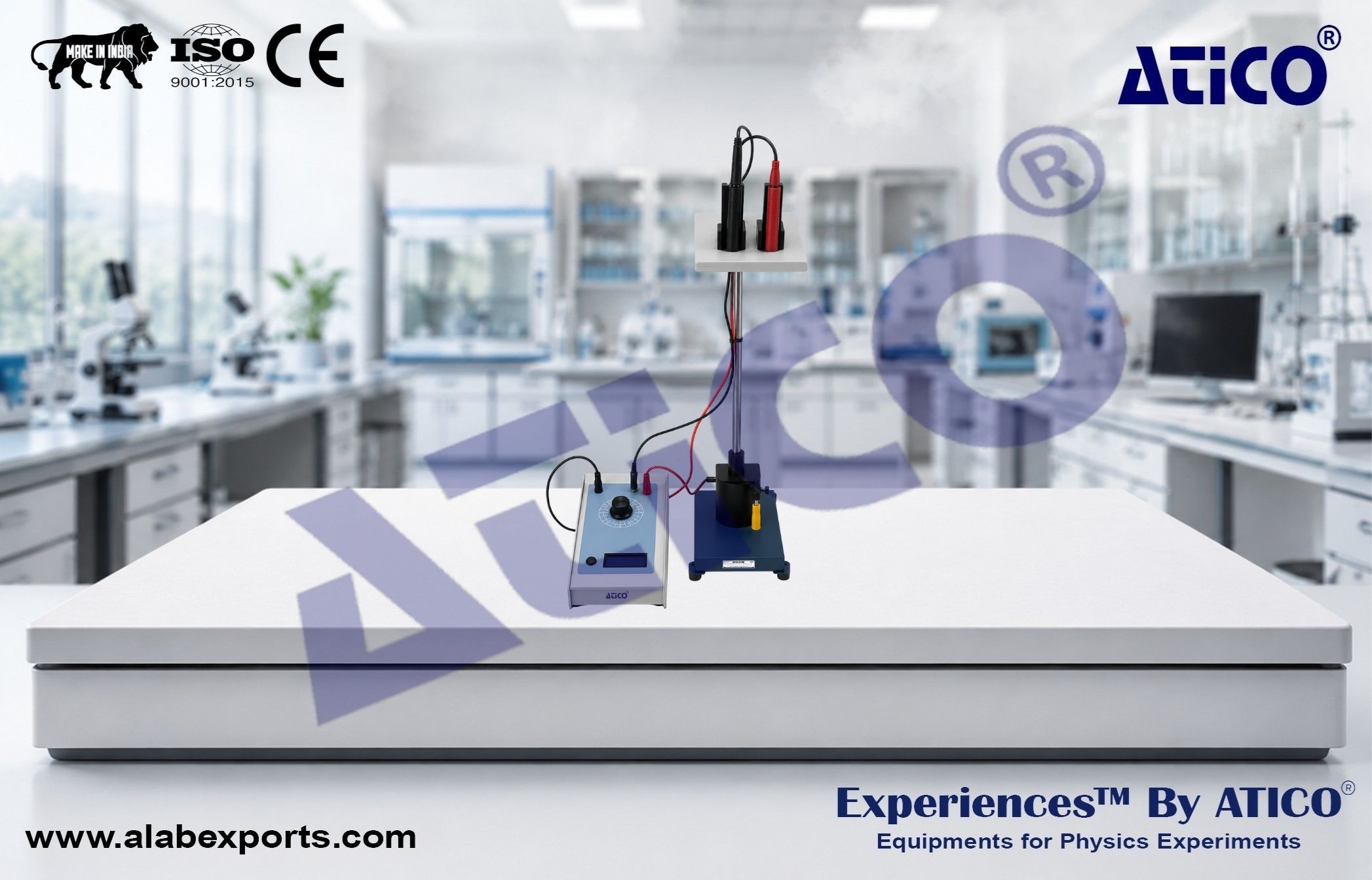

The apparatus consists of an electromagnet operated by a solenoid for the prompt release of the steel sphere and a gate switch unit mounted on a base. Both the electromagnet and the bottom unit are provided with 4 mm sockets for electrical connections.

When the steel sphere strikes the plate of the gate switch unit near the bottom, the signal is communicated to the timer through the make/break of continuity, triggering the timer to stop.

Physics Lab Experiments Setup from Atico Exports.

Application :

• Determination of Acceleration Due to Gravity (g)

Release Mechanism :

• Magnetic Release System
• Electromagnet Operated by a Solenoid
• Designed for Prompt Release of the Steel Sphere

Test Object :

• Steel Spherical Ball

Gate Switch Unit :

• Mounted on a Base
• Activates the Timer Stop Function When the Steel Sphere Strikes the Plate

Electrical Connections :

• 4 mm Sockets Provided on the Electromagnet and Bottom Unit
