Gas flow classification

Zigzag sifters permit classification of solid compounds. The solid compound being separated is charged into the feed hopper. The compound is fed into the zigzag duct of the sifter at mid-height by way of a vibrating trough. Learn about Gas flow classification for educational labs for optimal educational outcomes.. An air flow flows upwards through the vertical duct. Depending on the geometry and density of the particles, they are carried along by the air or drop down due to gravity. Learn about Gas flow classification exporters for optimal educational outcomes.. At every bend in the duct the solid compound passes through the air flow and falls onto the opposite wall of the sifter. This corresponds to one sifting stage. Learn about Gas flow classification specifications for optimal educational outcomes.. Owing to the flow conditions, a vortex wake is formed between two bends of the zigzag duct. It ensures that the solid matter moves roughly perpendicular to the air flow. Learn about Gas flow classification Process Engineering Trainers1 India for optimal educational outcomes.. In this way, a transverse sift takes place at every bend. Sequencing of large numbers of such stages results in very fine separation. Learn about Gas flow classification manufacturers for optimal educational outcomes.. Gas flow classification features a 20-stage zigzag duct. Transparent material provides optimum observation of the processes in the duct. Learn about Gas flow classification equipment for optimal educational outcomes..

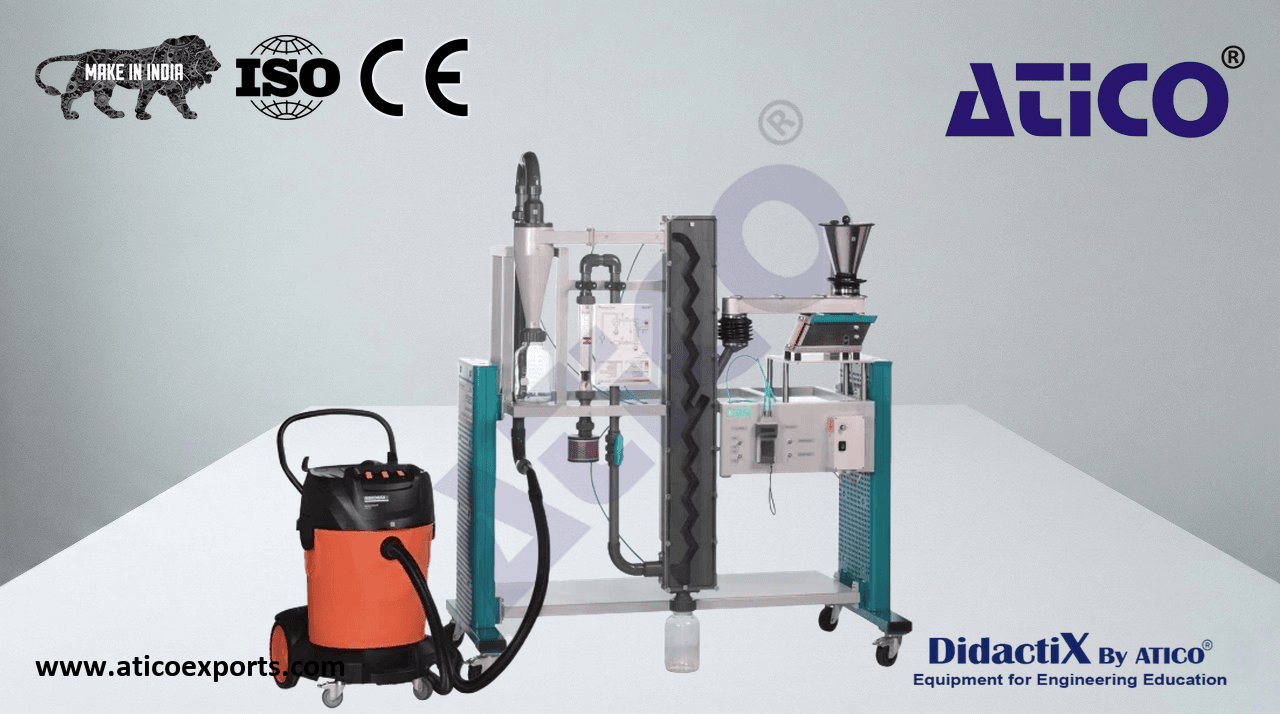

• zigzag sifter to separate solid compounds
• feed hopper with vibrating trough for feed of solid compound into sifter
• dosage of feed material by way of distance of hopper outlet from vibrating trough and frequency of vibrating trough
• separation of solid compound into coarse and fine material with air flow in 20-stage zigzag duct
• air flow generation by fan; adjustment by valve
• separation of fine material from air flow by gas cyclone with tangential inlet
• 3 tanks for feed material and coarse and fine materials
• recording of volumetric air flow rate and differential pressure through sifter and cyclone
