Gaseous Mass Transfer and Diffusion Unit

The Gaseous Mass Transfer and Diffusion Unit, allows the students to familiarize with the theoretical concepts about mass transfer unit operations, specifically the diffusion of a volatile liquid in an inert gas, obtaining very useful experimental data and results for the good practical understanding of the process and, therefore, for the technical training of the students.

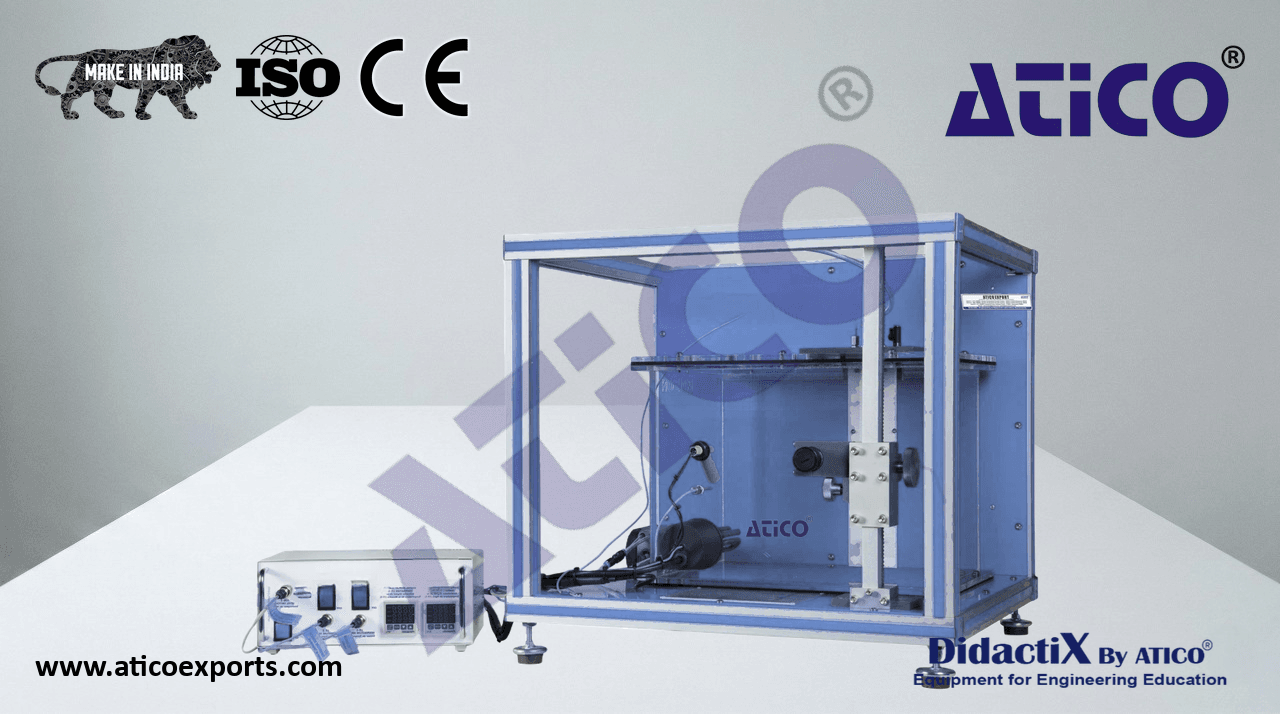

ATENG 10826 — Gaseous Mass Transfer and Diffusion Unit

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

Glass capillary tube.

• Air pump with air regulator, range: 0 – 7 l/min.
  Travelling optic system with accurate focus adjustment and mounted for vertical axis
• movement against a Vernier scale, Vernier range: 0 – 300 mm.
• Thermostatically controlled water transparent - sided bath. Capacity: 36 l.
  ATENG 10826 detail
• Heating resistance: 500 W (max. temperature 60 ºC).
  Two temperature sensors, “J” type.
  Level switch.
• Electronic console:
  Metallic box.
  Water (water bath) temperature digital controller.
  Heating resistance switch.
  Blower switch.
  Level switch connector.
  Temperature sensors connectors.
  Digital display for the sample temperature.
  Heating resistance connector.
  Pump connector.
  Main switch.
  Cables and accessories, for normal operation.
