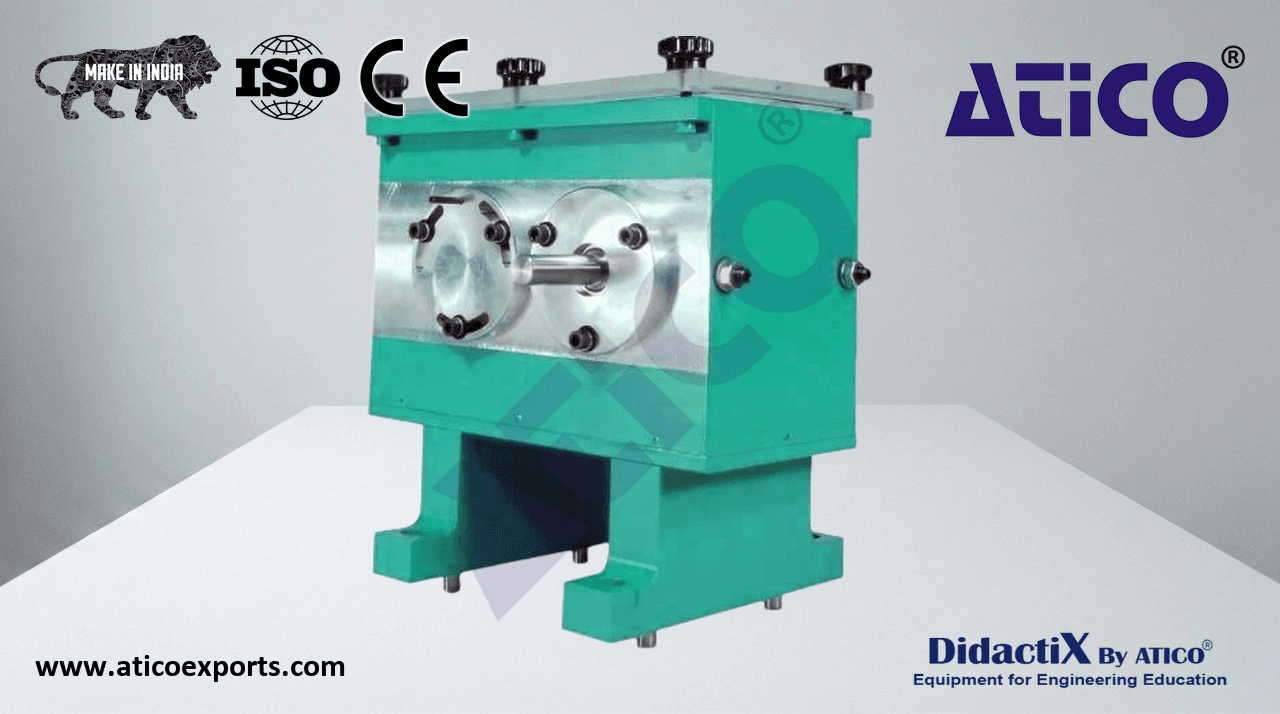

GEAR DAMAGE MODULE

A module that attaches to a machinery diagnostics base unit to simulate a system under load, enabling students to observe the vibrational effects produced at different speeds and load forces. The module creates vibrations as a function of torque and resistance.

• Gear sets: Spur and helical gear sets for the machinery diagnostic system
• Faulty gears for both gear types to induce added vibrations
• Centre distance adjustable for testing backlash and vibration levels
• Watertight gearbox to allow testing of lubricants on gears
• Clear gearbox lid
• Adjustable distances in base unit, allowing testing against different shafts
