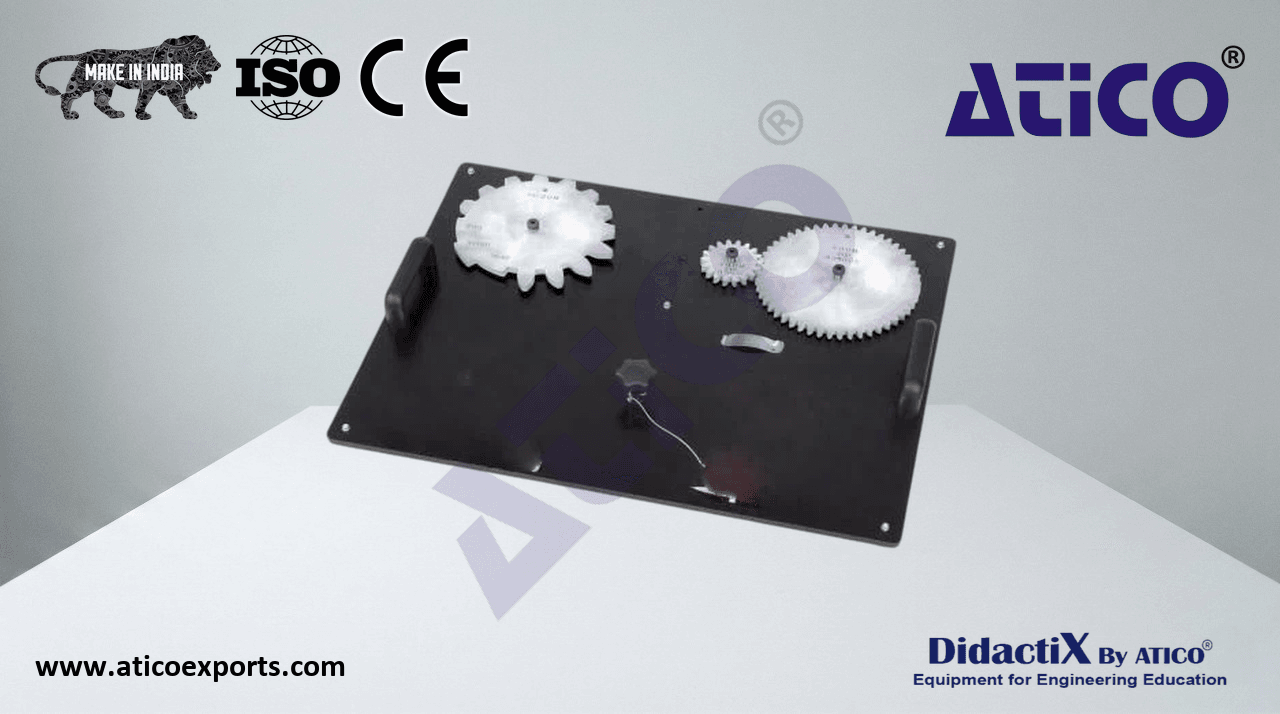

GEAR TOOTH FORM APPARATUS

A bench top apparatus for analysing gear tooth geometry. Three gears are located on a base plate – a large gear and small gear mesh together and can be rotated to produce ratio analysis. A third gear is removable for students to study its tooth form, pitch circle diameter (PCD) and other key geometric features. Learn about GEAR TOOTH FORM APPARATUS specifications for optimal educational outcomes.. The apparatus also illustrates the involute curve and its role in creating a gear tooth profile. Paper can be inserted to draw an involute curve directly. Learn about GEAR TOOTH FORM APPARATUS exporters for optimal educational outcomes.. Vernier calipers are provided to allow physical measurement of the removable gear. Labels throughout clearly explain gear theory. Learn about GEAR TOOTH FORM APPARATUS equipment for optimal educational outcomes..

• Large gear: 50T, Module 4, 200 mm PCD
• Small gear: 18T, Module 4, 72 mm PCD
• Removable gear: Module 12.5
• Vernier calipers supplied
