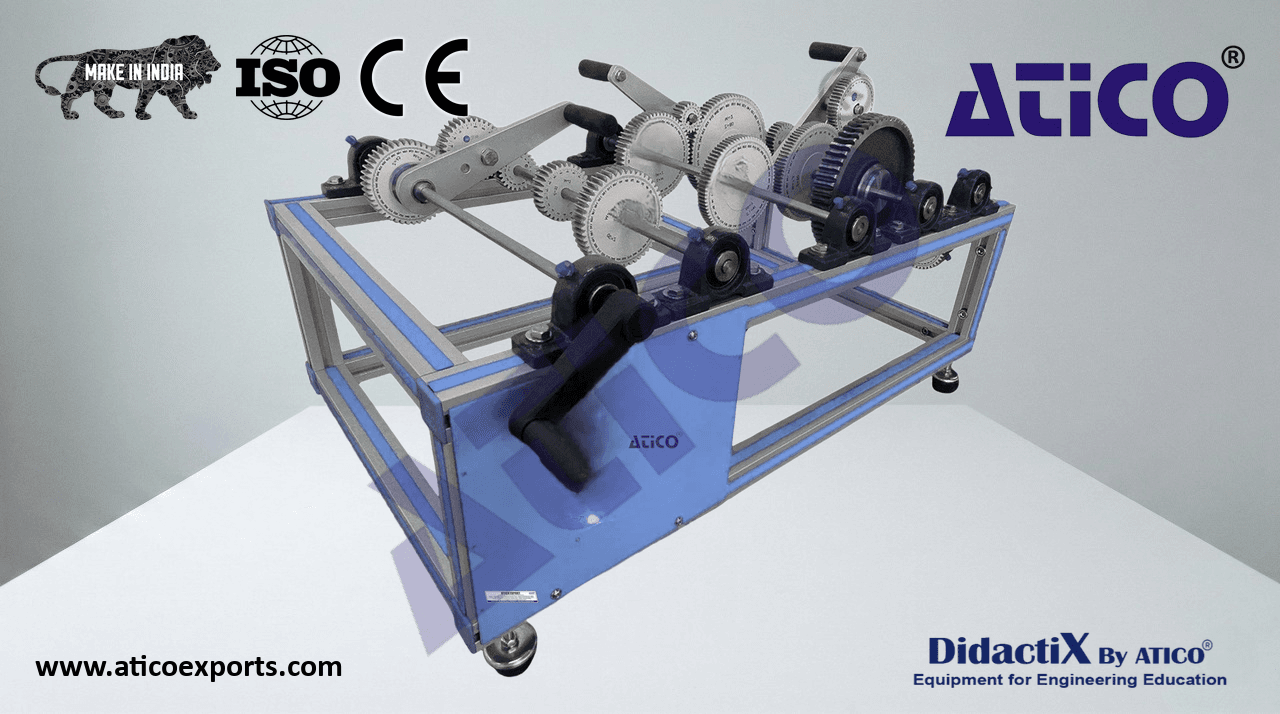

Gear Train Assembly Unit Deluxe

The Gear Train Assembly Unit, allows for the understanding and learning of the fundamentals of mechanical transmission techniques, as well as the assembly, disassembly, and experimentation with two types of simple transmissions.

ATENG 12083 — Gear Train Assembly Unit

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Aluminum carrying case.

Axles for assembly transmissions systems.

Pulley gear.

Sliding-wheels gear.

Norton Gearbox.

• Straight gears:
  ATENG 12083 detail
  Module m= 2; number of teeth z= 20, 24, 30, 32, 36, 40, 45, 50, 60, 80, 95.
  Module m=1.5; number of teeth z= 60, 70, 80, 90.
• Endless screw gear:
• Endless screw: number of teeth z= 6.
• Helical wheel: module m= 3.15; number of teeth z= 62.
  Inverter mechanism.
  Brackets.
  Tool set.
