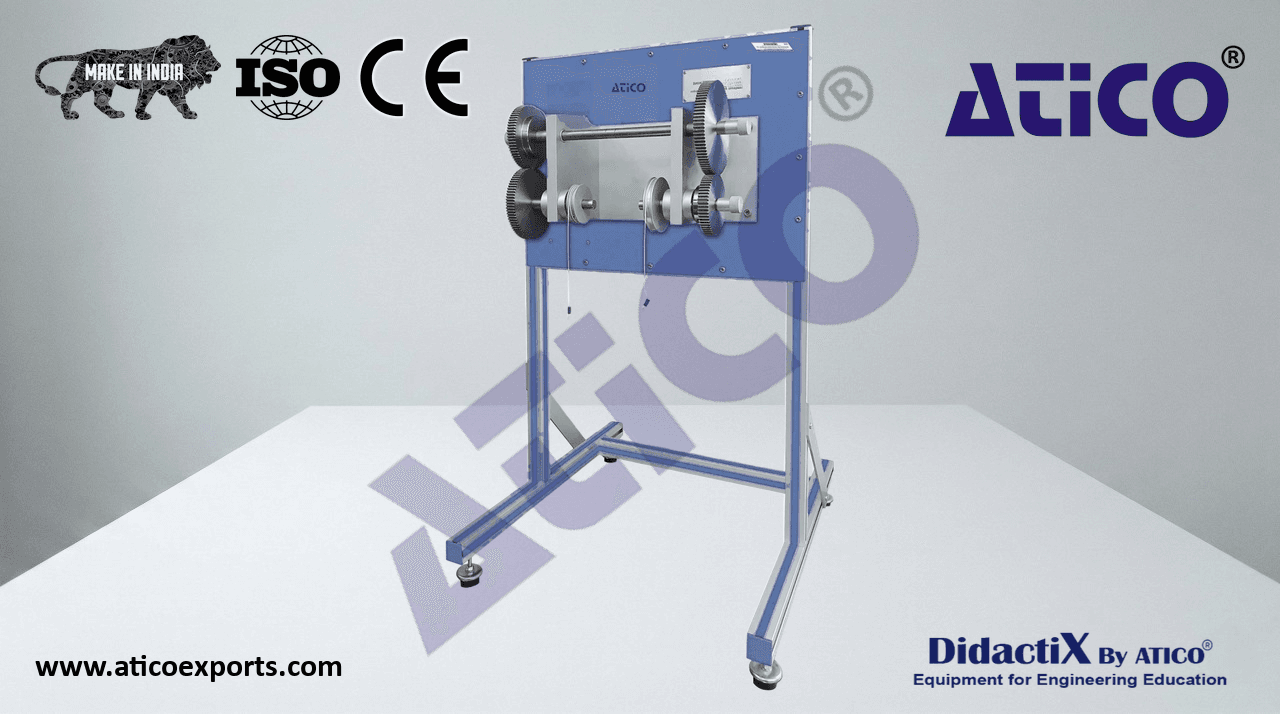

Geared Lifting Unit

The Geared Lifting Unit, consists basically of a lifting mechanism made up of a gear train that allows the study of a single wheel, a single gear system and a double gear system, determining the speed ratio, mechanical advance and efficiency.

ATENG 12086 — Geared Lifting Unit

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

• The “ATENG 12086” unit mainly consists of:
• Three shafts:
• Two lower shafts: Length: 0.15 m. Diameter: 0.016 m.
• Upper shafts: Length: 0.4 m. Diameter: 0.016 m.
• Four gears:
• Gear 1: No. of teeth: 90.
  ATENG 12086 detail
• Gear 2: No. of teeth: 70.
• Gear 3: No. of teeth: 60.
• Gear 4: No. of teeth: 80.
• Two pulleys of different diameter:
• Pulley 1: Diameter: 0.08 m.
• Pulley 2: Diameter: 0.06 m.
  Nuts and bushes to prevent the gears from moving.
