Geared Study

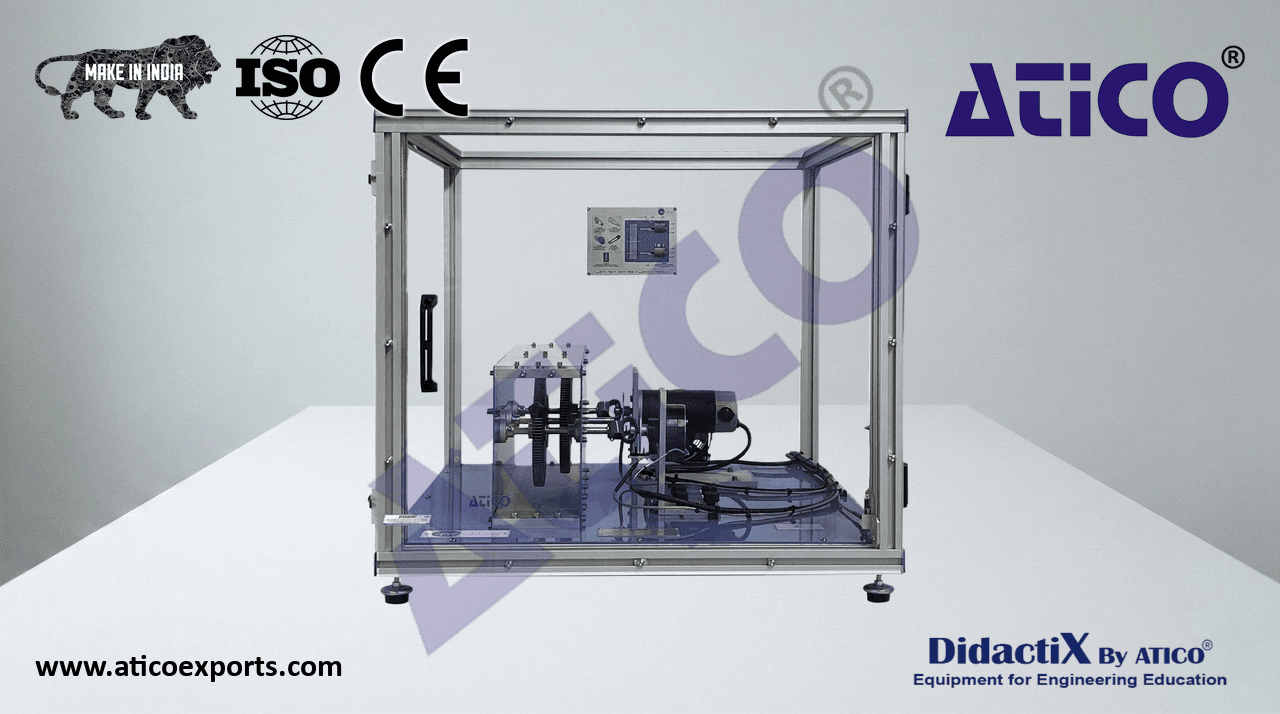

The Geared Study, "MESE/T", to dynamic study of different gears, including a standard three shaft gear train for study, which can be modified with a simple setting to obtain a simple transmission.

ATENG 12089 — Geared Study

• The “MESE” unit includes the following elements:
  Bench-top unit.
  Anodized aluminum frame and panels made of painted steel.
  Main metallic elements made of stainless steel.
  Diagram in the front panel with distribution of the elements similar to the real one.
  Asynchronous motor.
  Electromagnetic brake.
  Braking torque adjustment.
  Motor speed and torque controller.
  Flexible couplings for precise alignment.
• Three shaft gear train:
• Input shaft: 80 teeth.
• Intermediate shaft: 60 and 120 teeth.
• Output shaft: 120 teeth. Possibility to work without connection to study a simple gear.
  One fan for the correct cooling of the unit.
  Two torque sensors, one on the motor and the other on the dynamometer. MESE detail
  Two speed sensors (tachometer), one on the motor and the other on the dynamometer brake.
  Two wattmeters, one on the motor and the other on the dynamometer.
  Assembly tools.
• Electronic console:
  Metallic box.
  Main switch.
  Motor switch.
  Brake dynamometer switch.
  Two displays to observe the values of the torque, speed and power sensors of both the motor and the dynamometer.
  Cables and accessories, for normal operation.
