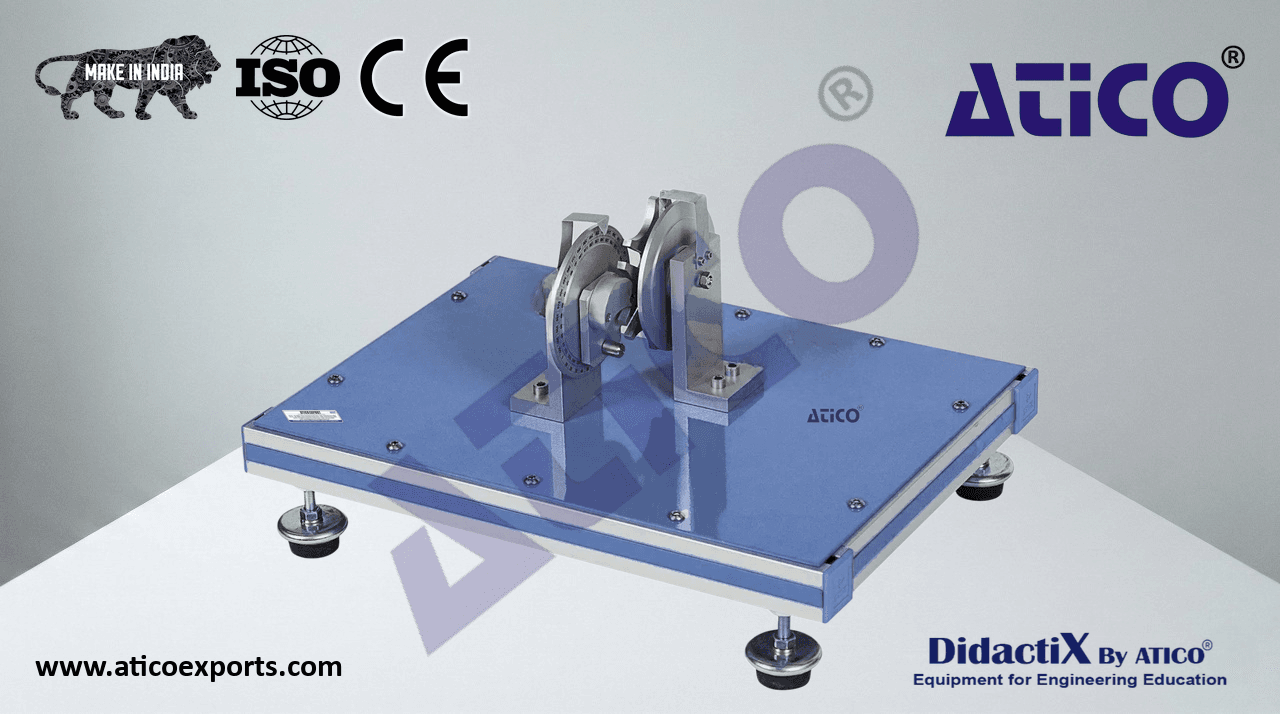

Geneva Stop Mechanism Deluxe

The Geneva Stop Mechanism, is a mechanism that transforms continuous circular motion into intermittent motion.

ATENG 12065 — Geneva Stop Mechanism

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

• The “ATENG 12065” unit mainly consists of:
  Rotating drive wheel with a pin and a raise half-moon blocking disc.
  Driven wheel with six slots.
  The drive wheel and the driven wheel are mounted in two rotary elements with a
  graduated disc to read the angle.
  Angle measurement indicator.
  ATENG 12065 detail
