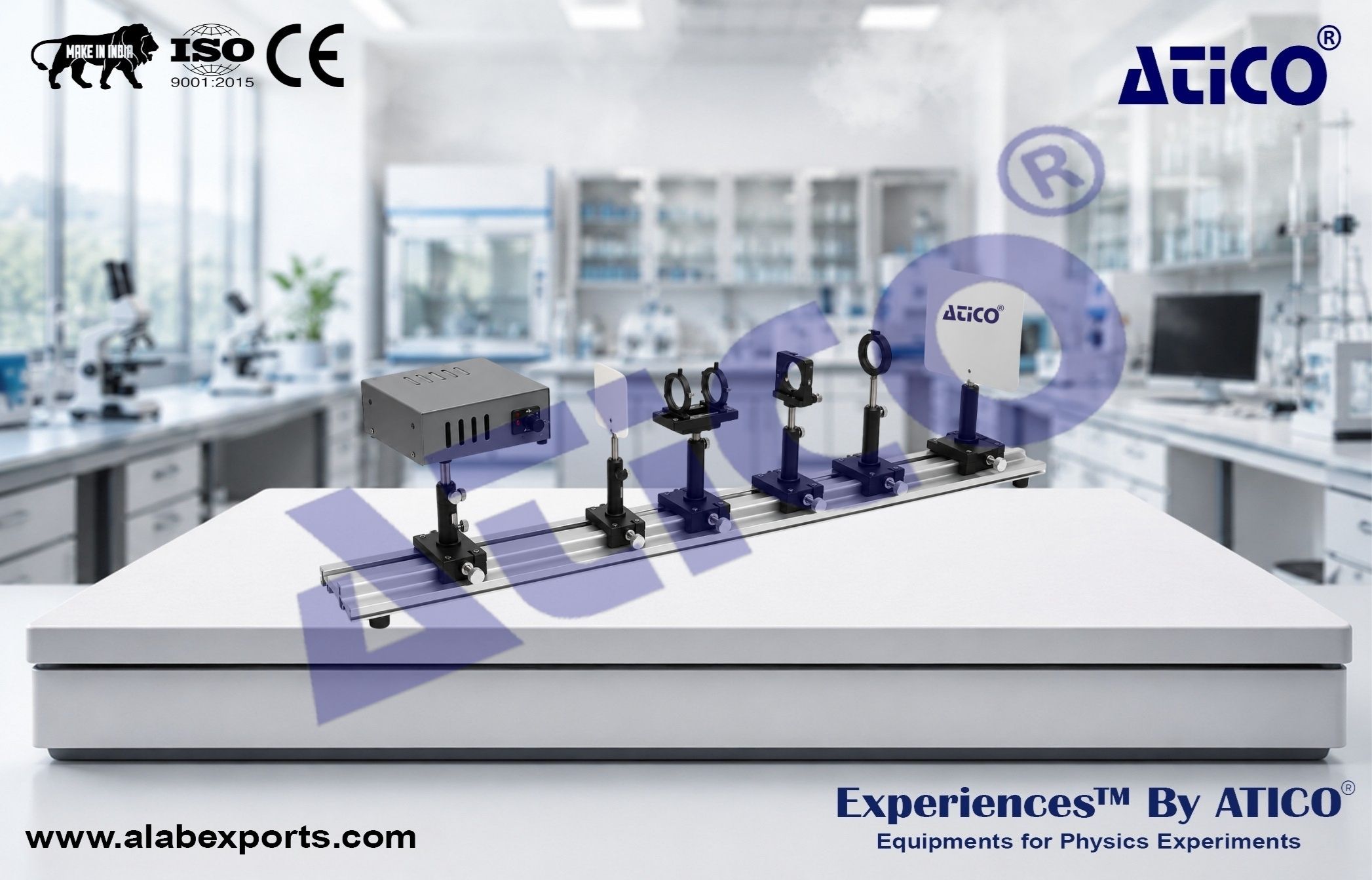

Geometrical Optics Physics Lab Experimental Instrument

This experimental optical platform is designed to support a wide range of fundamental and advanced optics experiments. The modular design allows users to freely assemble and configure optical components to create various experimental setups, providing flexibility for teaching, training, and research applications.

Through hands-on assembly and adjustment of optical systems, users can develop practical laboratory skills, strengthen their understanding of optical principles, and enhance problem-solving and innovation capabilities. The open architecture supports customizable experiments across multiple areas of optics.

• Fundamental optics experiments
• Optical system assembly and alignment
• Lens imaging studies
• Measurement and observation techniques
• Optical component characterization
• Geometrical optics investigations
• Practical laboratory training
• Innovation and project-based learning

Optical Rail :

• Precision hard aluminum alloy rail with graduated scale, length 1 m

Sliding Stages :

• Sliding Stage 1
• Sliding Stage 2
• Sliding Stage 3

Optical Components :

• Light source
• Optical lenses
• Precision measuring scale
• Adjustable mounting frames
• Additional optical accessories

Supporting Accessories :

• Measuring rulers
• Eyepieces
• Lens holders
• Mounting and alignment accessories
