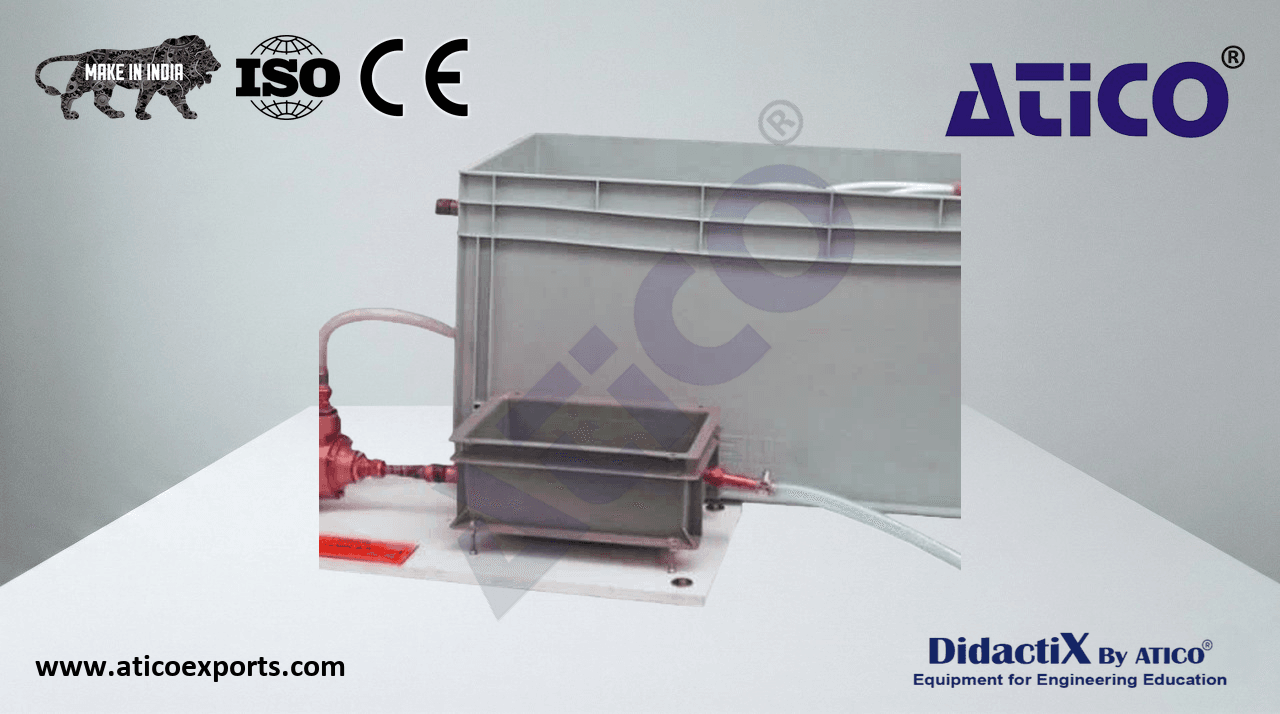

GROUND SOURCE SIMULATOR

The Ground Source Simulator is designed to provide a limited external heat source for the water evaporator on compatible Air and Water Heat Pump or Water-to-Water Heat Pump units. Normally these heat pump units are operated from a mains water supply to both the water-cooled condenser and the water-sourced evaporator. With the addition of this simulator, the water-sourced evaporator is replaced by a glycol/water solution pumped around a heat exchanger embedded in a 172-litre water or sand/soil reservoir. Learn about GROUND SOURCE SIMULATOR renewable-energy India for optimal educational outcomes.. This closely replicates real heat pump installations where the heat source may be a pond or ground area.

• Storage tank capacity: 172 litres
• Water pump: 25mm; max discharge head 35m; 370W; suction lift 8m
• Supplied complete with temperature probe
• Compatible with Air and Water Heat Pump and Water-to-Water Heat Pump units
