Gyroscope

The Gyroscope, allows the demonstration of the gyroscopic effects and enables the relationship between the gyroscopic couple and the direction of rotation (or precession) of the gyroscope axis to be determined.

A gyroscope is used in aviation and the aerospace industry to stabilise the position or as a navigation tool in so-called inertial navigation. The basic element of a gyroscope is a rapidly rotating mass. A free gyro tends to maintain the position of its rotational axis in space independently of gravity. Learn about Gyroscope equipment for optimal educational outcomes.. This property is exploited in the artificial horizon in the aircraft. If the gyro wheel is mounted in a gimbal, it is referred to as a guided gyroscope. Learn about Gyroscope specifications for optimal educational outcomes.. If a force acts on a guided gyroscope perpendicular to the axis of rotation, the gyroscope exerts a moment: the gyroscopic moment. The rotation perpendicular to the axis of rotation is known as precession. Learn about Gyroscope Engineering Mechanics Trainers India for optimal educational outcomes.. A gyroscope therefore has three axes: the axis of rotation (spin axis), the precession axis (output axis) and the axis of the gyroscopic effect that triggers the gyroscopic moment (input axis). All are perpendicular to each other. Learn about Gyroscope for educational labs for optimal educational outcomes.. The TM 630 unit demonstrates the properties of guided gyroscopes. The moments caused by the precession can be experimentally determined. Learn about Gyroscope suppliers for optimal educational outcomes..

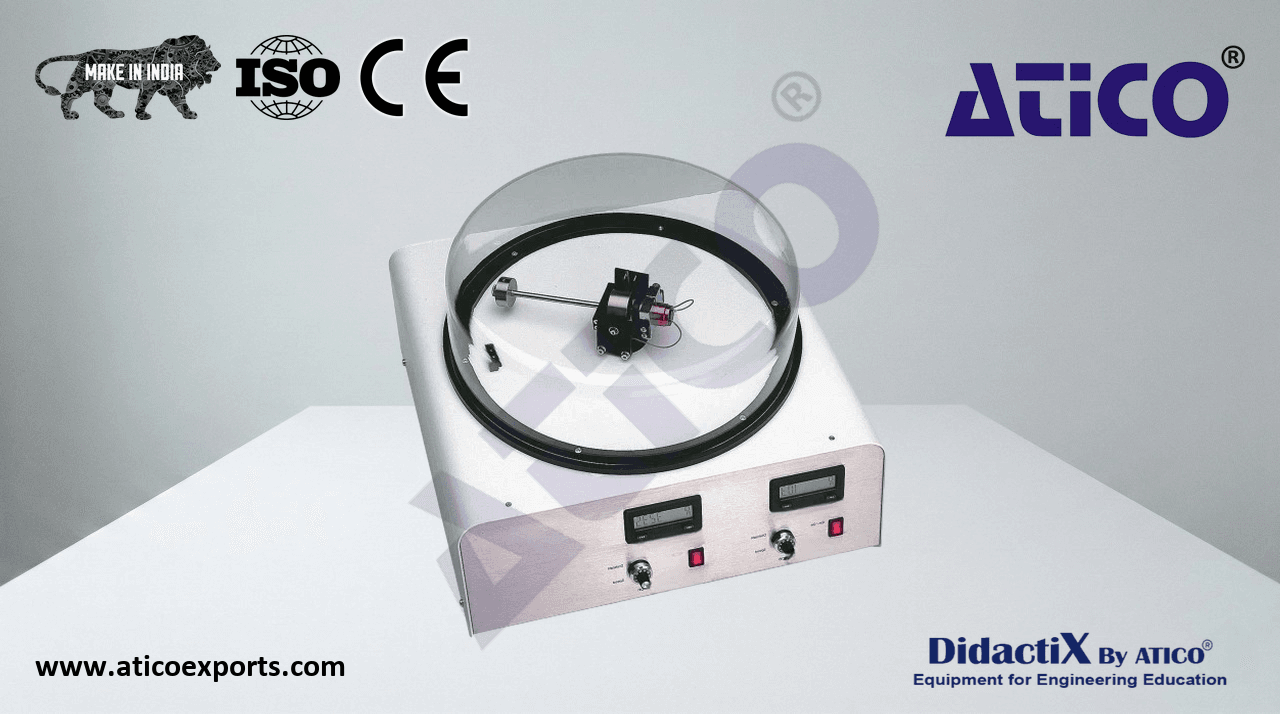

ATENG 12100 — Gyroscope

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

• The “ATENG 12100” unit mainly consists of:
• Rotor disc, diameter: 80 mm.
• Torque arm, length: 240 mm approx.
  Counterweight with retaining screws to preselect the gyroscopic moment.
  ATENG 12100 detail
• Two motors:
• Rotating motor, speed range: 0 – 6000 rpm.
• Precession motor, speed range: 0 – 60 rpm.
  Both motors are electronically regulated and independently controlled. They can rotate clockwise or anticlockwise.
  Transparent protective cover, made of PMMA, provides protection against the rotating parts and enables different experiments to be
  observed. This cover includes a safety switch, which allows automatically stops the two electrical motors if the cover is opened.
  Bull’s eye level to level the unit.
• Weights:
  1 x 250 g, 1 x 200 g, 1 x 150 g, 1 x 100 g, 1 x 50 g.
• Electronic console:
  Metallic box.
  Main on/off switch.
  Motors connections.
  ON/OFF switch for the rotating motor.
  ON/OFF switch for the precession motor.
  Rotating motor direction switch.
  Precession motor direction switch.
  Rotating motor speed controller.
  Precession motor speed controller.
  Digital display for the rotating motor speed.
  Digital display for the precession motor speed.
  Cables and accessories, for normal operation.
