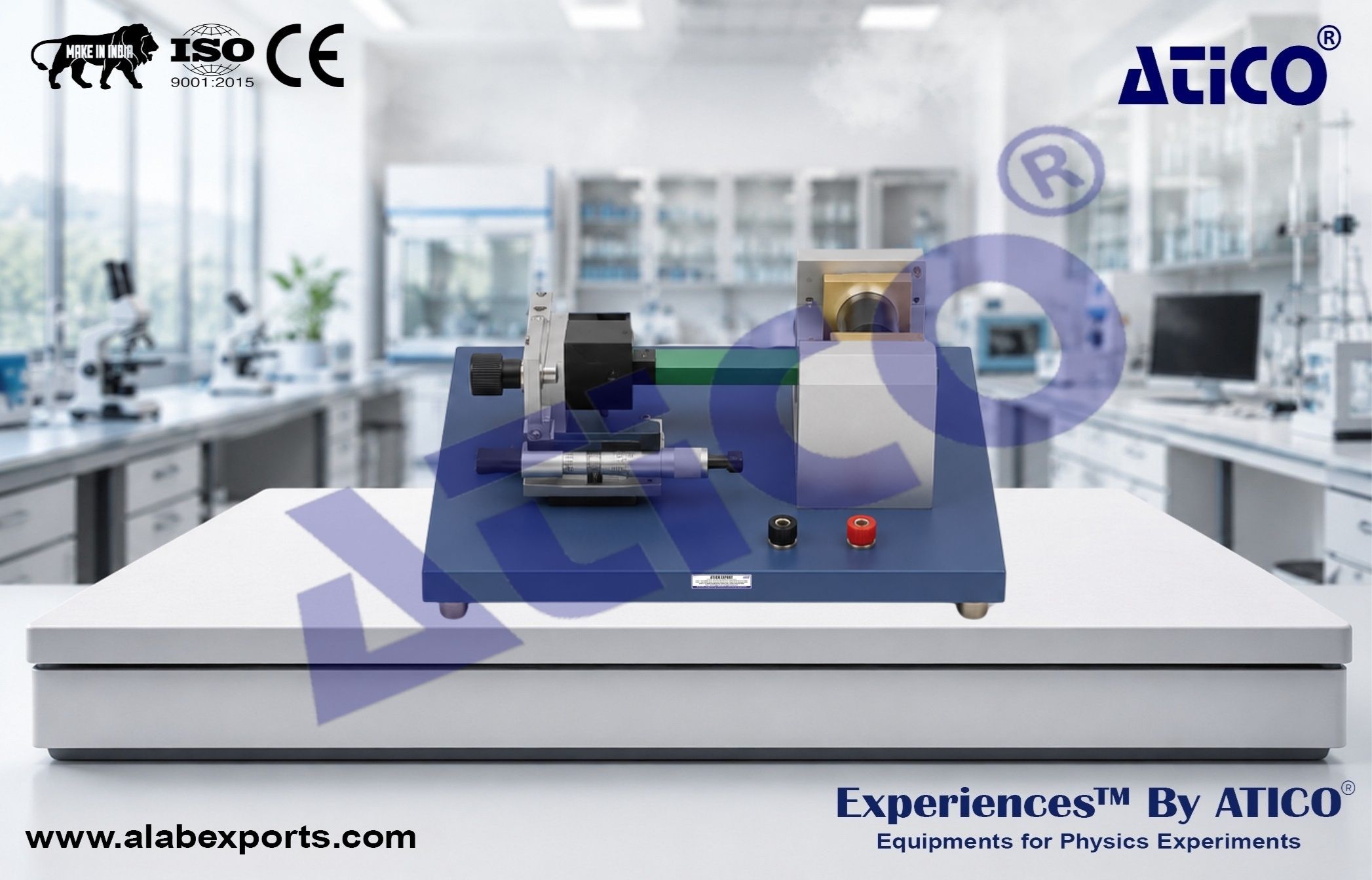

Hall effect combination Physics Lab Experiment Setup

This experiment system is designed for studying the Hall effect and its applications in magnetic field measurement. It enables the investigation of Hall voltage generation in semiconductor materials and the measurement of magnetic field strength using Hall sensors. The system provides a practical platform for understanding charge carrier behavior in magnetic fields and the operation of Hall-effect-based measurement devices.

Physics Lab Experiments from Atico Exports.

Experimental Principle and Content

• Study of the Hall Effect
• Application of the Hall Effect in Magnetic Field Measurement
• Measurement of Magnetic Field Strength Using Hall Sensors

DC Excitation Current Source :

• 0–800 mA
• 3½-Digit Digital Display
• Resolution: 1 mA

Digital Voltmeter :

• 4½-Digit Display
• Range: 0–1.999 V

Magnetic Field Source Device :

• Radius: 18.00 mm
• Length: 200.0 mm
• Number of Turns: 1275

Hall Magnetic Field Detector :

• Sensitivity: K = 12.0 mV/mT

Hall Voltage Measurement :

• Range: 0–199.9 mV
